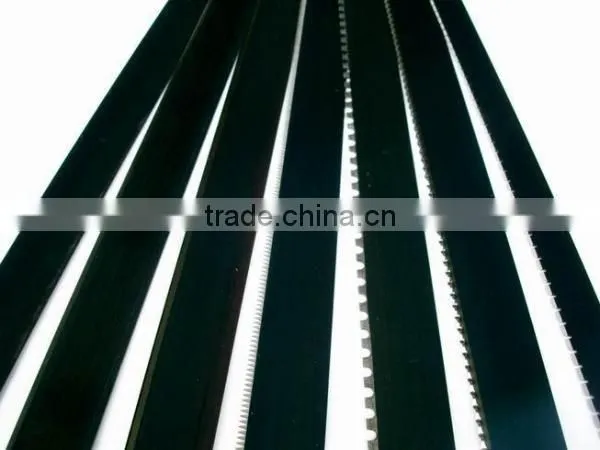

Help CenterExtra Hardened Edge 2PT or 3PT Available In Any Tooth and Gap Perforating Rule
Related Products
-
Normal Edge Or Hardened Edge Laser Steel Rule 2PT 23.80mm Die Cutting RuleUS$ 0.18 - 0.18MOQ: 2000 Meters -
2pt 3pt Die Cutting RuleUS$ 0.16 - 0.8MOQ: 5000 Meters
-
Extra Hardened Edge 2PT or 3PT Glue Proforating Rule Special Diemaking RulesUS$ 2.50 - 2.50MOQ: 100 Meters
-
Fully Hardened Edge 2PT or 3PT Customized Wave Rule For Diemaking IndustryUS$ 0.48 - 0.48MOQ: 200 Meters
-
23.5mm to 23.8mm Height 1mm t0 15mm Dia.Spring Punch Normal Punch Side Ejection Punch Hole PunchUS$ 0.10 - 0.10MOQ: 1000 Pieces
Specifications
Our perforating rules are available in any tooth and gap. On the basis of customers' needs, we can manufacture perforating rules with any gap relief depths. The competitive advantage is :
1)Good hardness 2)No burrs 3)Accurate height 4)Accurate length and depth of gap
In oreder to avoide burrs, the factory will grind the perforating rule after punching gap which will eliminate the damage to the substrate. it will make the work become cleaner and faster.
Popular Pitches
Point |
Millimeters |
Teeth Per Inch |
||
Gap |
Tooth |
Gap |
Tooth |
|
2 |
2 |
0.7 |
0.7 |
18 |
2 |
4 |
0.7 |
1.5 |
12 |
3 |
3 |
1.05 |
1.05 |
12 |
2 |
5 |
0.7 |
1.75 |
10 |
4 |
4 |
1.5 |
1.5 |
9 |
2 |
10 |
0.7 |
3.5 |
6 |
6 |
6 |
2.1 |
2.1 |
6 |
9 |
9 |
3.15 |
3.15 |
4 |
18 |
18 |
6 |
6 |
2 |
Micro Perforating
The micro Perforatin rule produced by Diamond has high prcision. Because the cut and gap ratio are extremely close, the factory uses an extra hard special steel to produce. the most popular micro perforating rules will have 30, 50, 70, 100 teeth in one inch.
Manufacturing Technique
Each process of manufacturing has been controlled strictly. Good control has been applied in each process which covers raw materials purchasing heat treat, grinding edge, high-frenquency quenching and antirust packaging which will guarantee that the quality of our perforating rules is reliable and stable.
Development of Market
As one of the earlies diecut rule producers in China, our products have been Our products has been practiced for near 20 years. Since 2005, we has began to explore international markets. Our diecut rules, including cutting rule, creasing rule, proforating rule, have been exported to a lot of countries and areas such as Middle East, Brazil, India, Chile, Argentina and some countries in Euro. Clients are usually very satisified with our diecut rule.
