Help CenterDIY Custom Anodized Heatsink Aluminium Extrusions Price per kg From Shanghai BV ISO Certificated
Related Products
-
DIY Custom Forging Aluminium Heatsink Price per kg From Shanghai BV ISO CertificatedUS$ 2,600 - 3,000MOQ: 1 Ton -
Custom Industrial Aluminium Heatsink for Led Lamps Price per kg From Shanghai BV ISO CertificatedUS$ 2,600 - 3,000MOQ: 1 Ton
-
DIY Custom Aluminium Extrusion Led Heatsink Price per kg From Shanghai BV ISO CertificatedUS$ 2,600 - 3,000MOQ: 1 Ton
-
DIY Custom Aluminium Extrusion Profile Heatsink Price per kg From Shanghai BV ISO CertificatedUS$ 2,600 - 3,000MOQ: 1 Ton
-
DIY Custom Aluminium Heatsink Casting Price per kg From Shanghai BV ISO CertificatedUS$ 2,600 - 3,000MOQ: 1 Ton
Specifications
anodized heatsink aluminium extrusions1.material: 6005 6060 6061 6063
2.Temper:T5,T6
lor:customized
anodized heatsink aluminium extrusions description
1.Typical chemical composition of most commonly used material:
| Material | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6005 | 0.6~0.9 | 0.35 | 0.1 | 0.1 | 0.4~0.6 | 0.1 | 0.1 | 0.1 | 0.15 | rest |
| 6061 | 0.4~0.8 | 0.7 | 0.15~0.4 | 0.15 | 0.8~1.2 | 0.04~0.35 | 0.25 | 0.15 | 0.15 | rest |
| 6063 | 0.2~0.6 | 0.35 | 0.1 | 0.1 | 0.45~0.9 | 0.1 | 0.1 | 0.1 | 0.15 | rest |
2. anodized heatsink aluminium extrusions properties
| Alloy | Temper | Tensile |
Yield strength σ0.2/Mpa |
Elongation |
Hardness |
| 6063 | T5 | ≥160 | ≥110 | ≥8% | ≥60 |
| T6 | ≥205 | ≥180 | ≥8% | ≥70 |
3. FAQ
1. Material: alloy 6005 6060 6061 6063
2. Temper: T5, T6
3. Surface treatment: anodizing, powder coating, wooden grain, sand blasting etc.
4. Color: any color is available, just bring us your color sample
5. Style and size: customized
6. Deep processing: extrude, precious cut, punch, drill, tap, mill, rivet, weld etc.
7. Extruding machine: 600-2500tons
4.Our production lines
| Production lines | Name | Qty |
Max product length |
| Extruding lines |
600 ton extruder | 5 |
|
| 800 ton extruder | 2 | ||
| 1000 ton extruder | 1 | ||
| 1250 ton extruder | 1 | ||
| 1800 ton extruder | 1 | ||
| 2500 ton extruder | 1 | ||
| Surface treatment lines | Anodizing | 1 | ≤6.5 m |
| Powder coating | 2 | ≤13 m | |
| Electrophoresis | 1 | ≤6.5 m | |
| Wooden transfer | 1 | ≤6.5 m | |
| Hot insulation cold bridge | 1 | ≤6.5 m | |
| Deep processing lines | Cutting machines | 3 | |
| Punching machine | 5 | ||
| Milling machine | 3 | ||
| CNC machine | 3 | ||
| Polishing machine | 1 | ||
| Tapping machine | 5 | ||
| Riveting machine | 1 |

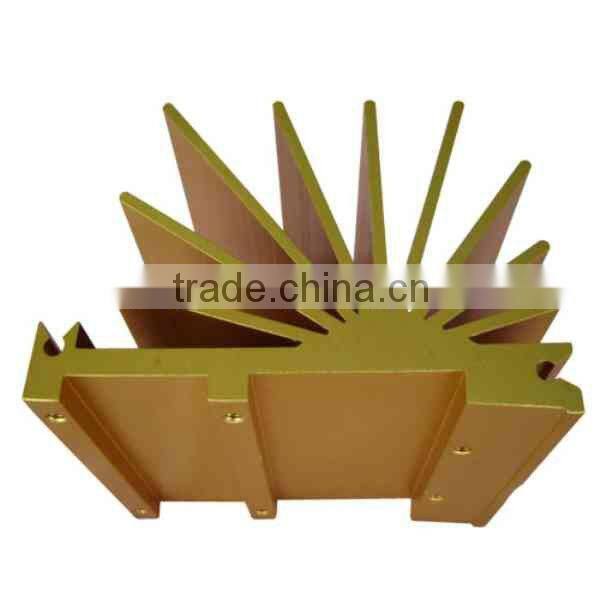

aluminium heat sink,heatsink photo show
Our factory
Our Guests:
anodized heatsink aluminium extrusions services
Cost Competitive
We can control all the manufacture process from extruding to machining by ourselves, which is why we can
reduce the product cost comparing to our competitors.
Quality Guarantee
We will inspect the whole process from material, production, finished profiles.if any quality problems of our
products, we promise to replace the defective ones in the next shipment.
OEM Capability
We make various kinds finished aluminum extrusions and further processed product from machined piece,
we respect client's designs and work to perfect product.
High quality products
Price is important, but quality counts for much more, so we dedicated in superior quality. In this way, our
products have been sold to Europe, North America, Japan, New Zealand and other countries and enjoy
a good reputation from overseas customers.
More information?
welcome go to our website http://shjiayun.en.china.cn/
Or click here to contact to me
Send Inquiry to This Supplier
