dc Brushless Fan (DC 12v 14cm/12cm/9cm)

-   TFD-14025H12ZP/KU(RB)     -

  DC 12v dc brushless fan

With the constant demand of better computing performance, the energy consumption rises to meet users’ expectations which eventually results into heat increase. To prevent the over-heating problem for your computer, TITAN introduces the newly innovative KUKRI fan, TFD-14025H12ZP/KU(RB). Its name originates form a symbolic weapon for Gurkha regiments and the Nepali Army which represents the courage of the bearer in the battlefield.

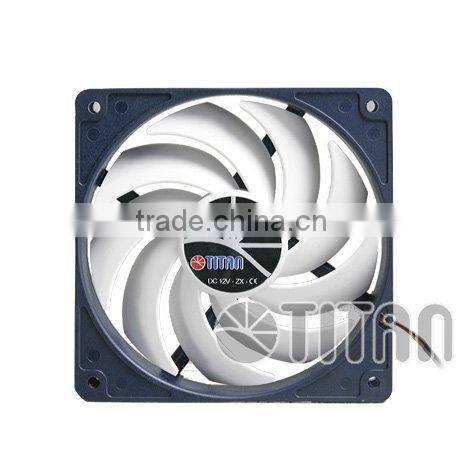

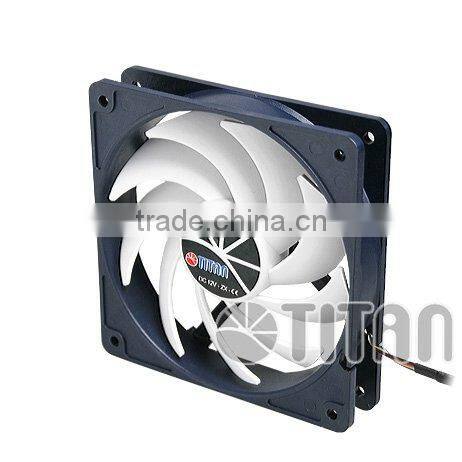

The nine curved blades are designed to produce stronger air pressure, speeding up the heat dissipation, and maintain a lower noise level.


< Specification >

DC 12v dc brushless fan

 < 14 cm >

Outline Dimension         140 x 140 x 25mm
Rated Voltage                12V DC
Rated Current                0.4 A
Power Consumption      4.8W
Rated Speed                 700±25%RPM ~ 1800±10%RPM
Airflow                           34.78~89.43 CFM
Static Pressure              0.01~0.09 InchH2O
Noise Level                   <8.3~<28.8 dBA
Connector                     3-PIN
Bearing Type                 Z-AXIS
Life Time                        60,000 Hours

 < 12 cm >

Outline Dimension        120 x 120 x 25 mm
Rated Voltage              12V DC
Rated Current               0.32 A
Power Consumption     3.84 W
Rated Speed                 800 ± 10%~2200±10%RPM
Airflow                          24.23~66.62CFM
Static Pressure             0.02~0.14InchH2O
Noise Level                   < 15~35 dBA
Connector                     4-PIN PWM function
Bearing Type                 Z-AXIS
Life Time                       60,000 Hours

 < 9 cm >

Outline Dimension        92 x 92 x 25 mm
Rated Voltage              12V DC
Rated Current               0.24 A
Power Consumption     2.88W
Rated Speed                 900±25% RPM ~ 2600±10% RPM
Airflow                           18.4~53.1CFM
Static Pressure              0.02~0.13 InchH2O
Noise Level                   <10~25 dBA
Connector                     4-PIN PWM function
Bearing Type                 Z-AXIS
Life Time                        60,000 Hours

  dc brushless fan
