- - HW-1248C1 -

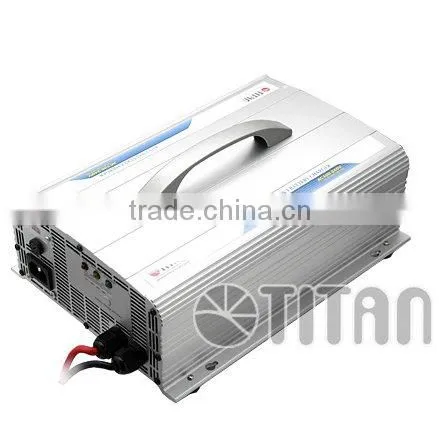

The new 4 in 1 charger launched by Titan aims to provide a user-friendly power charging device for your everyday functions. This charger with 12V/24V/36V/48V is suitable for all types of vehicles including motorcycles, automobiles, van, truck and yacht. The LED light indicates the current voltage by flashing different color schemes.
This charger has multi-protection features such as over-temperature, over voltage and reverse connection protection which increase the safety when the charger is in action. Titan’s new 4 in 1 charger is clearly the best and most suitable choice for your everyday power needs.
<Features>
Soft-start feature with 3 protective designs
Limitation of maximum current restriction
Minimum output of ripple current
Minimum stand-by current
Cooling fan with auto speed-control
Charging voltage compensation feature included.
<Specification>
| Input Voltage | 200~240 Vac | ||||
| Input Frequency | 50 / 60Hz | ||||
| Current (Without Load) | < 0.1A | ||||
| Maximum Input Current | < 15A | ||||
| Maximum Efficiency in Power | > 80% | ||||
| Output Voltage | 12V | 24V | 36V | 48V | |
| Maximum Ampere | 30A | 30A | 25A | 15A | |
| Maximum Output Charging Power | 450W | 900W | 1000W | 900W | |
| Charging Range | 8 ~ 14.8V | 16 ~ 26.4V | 27 ~ 39V | 40 ~ 55V | |
| Average Charging Voltage | 14.5V | 29.0V | 42.6V | 56.5V | |
| Float Charging Voltage | 13.8V | 27.6V | 39.9V | 53.2V | |
| Protection Function | - Short Circuit Protection | YES | |||
| - Reverse Connection Protection | YES | ||||
| - Over Thermal Protection | YES | ||||
| Voltage / Current Precision | < 5% | ||||
| The Longest Floating Charging Time | No Limitation | ||||
| Operating Ambiance Temperature | In Full Load : - 20 ~ 60°C | ||||
| Operating Ambiance Humidity | Maximum 95% | ||||
| Cool System | Automatic adjust Fan according to inner temperature | ||||
| Average Temperature in Housing | < 70°C | ||||
| Dimensions | 300 x 223 x 101 mm | ||||
| Weight | 4.5 Kg | ||||
