Speed Control CPU Cooler 1.5U Low Height Design (HTPC)

 <TTC-NC25TZ/PW(RB)>

CPU Cooler

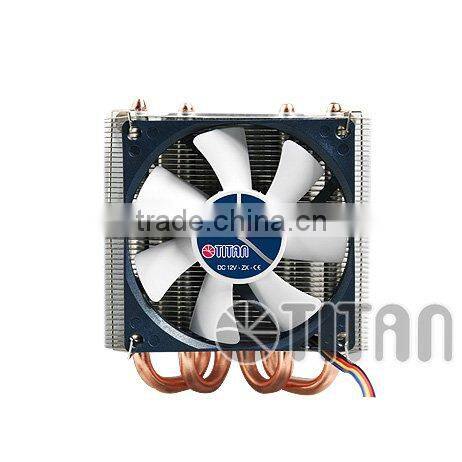

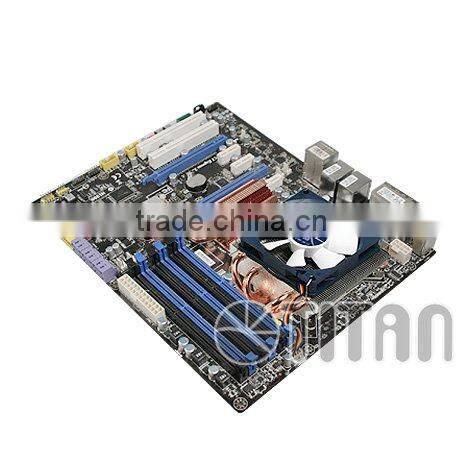

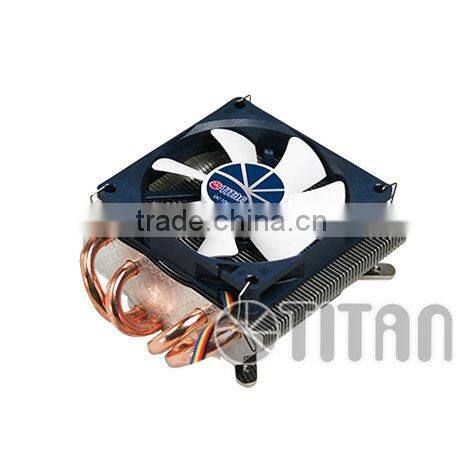

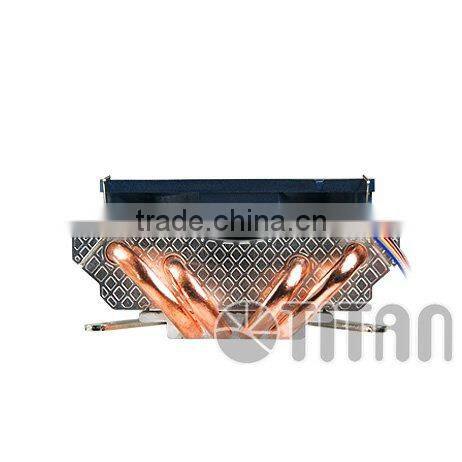

Titan launches the low profile CPU cooler-TTC-NC25TZ/PW(RB), a 46mm low height design with four 6mm heat pipes and direct contact tech for maximum heat conductivity and supporting TDP 130W. The 46mm low height design makes an ideal cooling for various slim HTPC cases. The PWM intelligent fan controller for a quiet operation. Fully compatible with most Intel and AMD systems.

 Features

• 1.5U low height design cooler for slim type cases.
• Four heat pipes with direct contact tech maximize heat conductivity.
• PWM smart fan will automatically adjust the fan speed according to the temperature of
  CPU for a silent operation.
• Compatible with Intel LGA1366/LGA1156/LGA775 and AMD Socket AM3/AM2/AM2+/940
  /939/754

 CPU Support

 CPU Cooler

For AMD K8/AM2/AM2+/AM3
- AMD Phenom™ II X6 Black Edition 1090T
- AMD Phenom™ II X6 1055T
- AMD Phenom™ II X4 805~965/B93~B95/900e~905e
- AMD Phenom™ II X3 710~720/700e~705e/B73~B75
- AMD Phenom™ II X2 545~555/B53~B55
- AMD Athlon™ II X4 620~635/600e~605e
- AMD Athlon™ II X3 425~440/400e~405e
- AMD Athlon™ II X2 215~255/235e~240e/B22~B24/250u~260u
- AMD Phenom™ X4 9500~9950/9100e~9450e
- AMD Phenom™ X3 8450~8750/8250e~8450e
- AMD Athlon™ X2 up to 6400+/7850/BE-2400/5050e
- AMD Athlon™ 64 up to 4000+/LE-1640
- AMD Athlon™ 64 FX up to FX-62
- AMD Sempron™ up to 3800+/140/LE-1300
- Quad-Core AMD Opteron™ up to 1389/1224SE/1218HE
For Intel LGA 1366
- Core™ i7 i7-920~i7-960
- Core™ i7 Extreme Edition i7-965~i7-980X
For Intel LGA 1156
- Core™ i7 i7-860~i7-870
- Core™ i5 i5-680~i5-750/i5-750S/i5-655K
- Core™ i3 i3-530~i3-560
For Intel LGA 775
- Core2 Duo up to~E8600
- Core2 Extreme up to~QX9770/X6800
- Core2 Quad up to~Q9650
- Pentium D up to~960
- Pentium Dual Core up to~E6500/E6500K
- Pentium Extreme up to~965
- Pentium 4 up to~672
- Pentium 4 Extreme up to~3.73G Hz
- Celeron up to~365/E3300

 Specification

CPU Cooler
