Home > Products > Plastic Pipes > PN7 SDR11 HDPE Pipe for Gas/Oil Supply
PN7 SDR11 HDPE Pipe for Gas/Oil Supply
- 10000 Meter / Meters per Month
- Ningbo Shanghai Tianjin or as required
- T/T Credit Card PayPal
Product Details
Place of Origin: | China | Brand Name: | SP/SR | Model Number: | DN20-630mm |
Material: | Other, PE100 or PE80, 100% raw virgin PE100 or PE80 | Specification: | SDR11,SDR17 | Length: | 5.8m,12m or as required |
Thickness: | 2.3-57.3mm | Standard: | ISO4437GB1558.1-2003, ISO4437GB1558.1-2003 |
Product Description

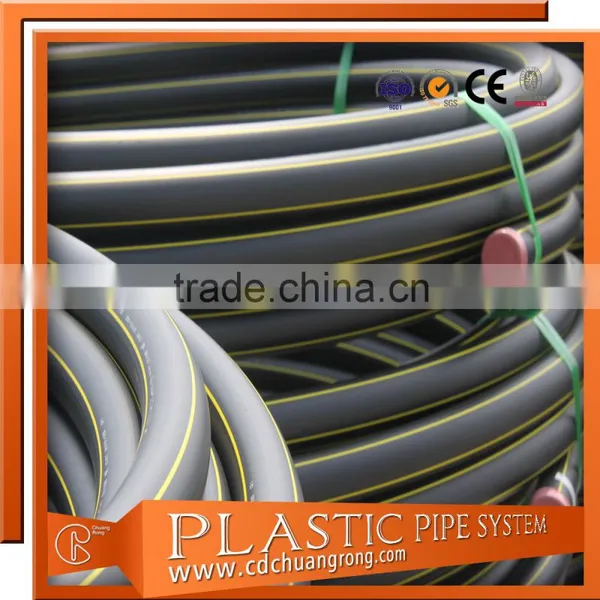

PN7 SDR11 HDPE Pipe for Gas/Oil Supply
1.Raw material:PE100 or PE80
2.Color:black with yellow stripe or as required
3.Specification:please see the following table
4:Connecting way:butt fusion or electrofusion
5.Advantage:ODM.OEM
6.Pressure:
PE100:PN7(SDR11),PN4(SDR17.6)
PE80: PN5(SDR11),PN3(SDR17.6)
7.Product feature:light weight,high strengh,low resistance,
corrosion resistance,easy installation,long lifespan,low cost
Nominal outside diameter Dn(mm) | Nominal wall thickness en(mm) | |||
PE80 | PE100 | |||
PN3 | PN5 | PN7 | PN7 | |
SDR17.6 | SDR11 | SDR17.6 | SDR11 | |
20 | 2.3 | 3.0 | 2.3 | 3.0 |
25 | 2.3 | 3.0 | 2.3 | 3.0 |
32 | 2.3 | 3.0 | 2.3 | 3.0 |
40 | 2.3 | 3.7 | 2.3 | 3.7 |
50 | 2.9 | 4.6 | 2.9 | 4.6 |
63 | 3.6 | 5.8 | 3.6 | 5.8 |
75 | 4.3 | 6.8 | 4.3 | 6.8 |
90 | 5.2 | 8.2 | 5.2 | 8.2 |
110 | 6.3 | 10.0 | 6.3 | 10.0 |
125 | 7.1 | 11.4 | 7.1 | 11.4 |
140 | 8.0 | 12.7 | 8.0 | 12.7 |
160 | 9.1 | 14.6 | 9.1 | 14.6 |
180 | 10.3 | 16.4 | 10.3 | 16.4 |
200 | 11.4 | 18.2 | 11.4 | 18.2 |
225 | 12.8 | 20.5 | 12.8 | 20.5 |
250 | 14.2 | 22.7 | 14.2 | 22.7 |
280 | 15.9 | 25.4 | 15.9 | 25.4 |
315 | 17.9 | 28.6 | 17.9 | 28.6 |
355 | 20.2 | 32.3 | 20.2 | 32.3 |
400 | 22.8 | 36.4 | 22.8 | 36.4 |
450 | 25.6 | 40.9 | 25.6 | 40.9 |
500 | 28.4 | 45.5 | 28.4 | 45.5 |
560 | 31.9 | 50.9 | 31.9 | 50.9 |
630 | 35.8 | 57.3 | 35.8 | 57.3 |
CHUANGRONG PE100/PE80 Plastic Pipe Features:
1.Nontoxic
2.Corrosion resistance
3.No Leakage
4.higher flow capacity
5.Convenient for construction and installation
6.Lower system and maintenance costs
7.Longevity: 50 years under pressure use.
Recycled and Environment-friendly
Applications:
1.Municipal water supply, gas supply and agriculture etc.
2.Commercial & Residential water supply
3.Industrial liquids transportation
4.Sewage treatment
5. Food and chemical industry
7. Replacement of cement pipes and steel pipes
8. Argillaceous silt, mud transportation
9. Garden green pipe networks
Inspection:
We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blastingtest,
longitudinal shrinkage rate test, quick stress crack resistance test,tensile test and melt index test,
so as to ensure the quality of products totally reach the relevant standards from raw materials to
finished products.
CHUANGRONG PE PIPE Properties :
1.Specific Gravity, g/cm3, 20(C): 0.941-0.965
2.Longitudinal Reversion, % (110(C)): <=3
3.Oxidation Induciton Time, min (200(C)): >=20
4.Extension Rate at Break. %: >=350
5.Hydraulic Pressure Test:
1)20(C), Hoop Stress is 12.4 Mpa, 100h: No Failure.
2)80(C), Hoop Stress is 5.5Mpa, 165h: No Failure.
3)80(C), Hoop Stress is 5.0Mpa, 1000h: No Failure.
Multiple Package:
1.Bulk 2.Plastic bags 3.Coil or as required
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp Our aim is to provide customer with the best solutions of plastic pipe connection.
If you need to know more pls keep contact ,we will try our best to service for you.
Thank you for your looking through.
