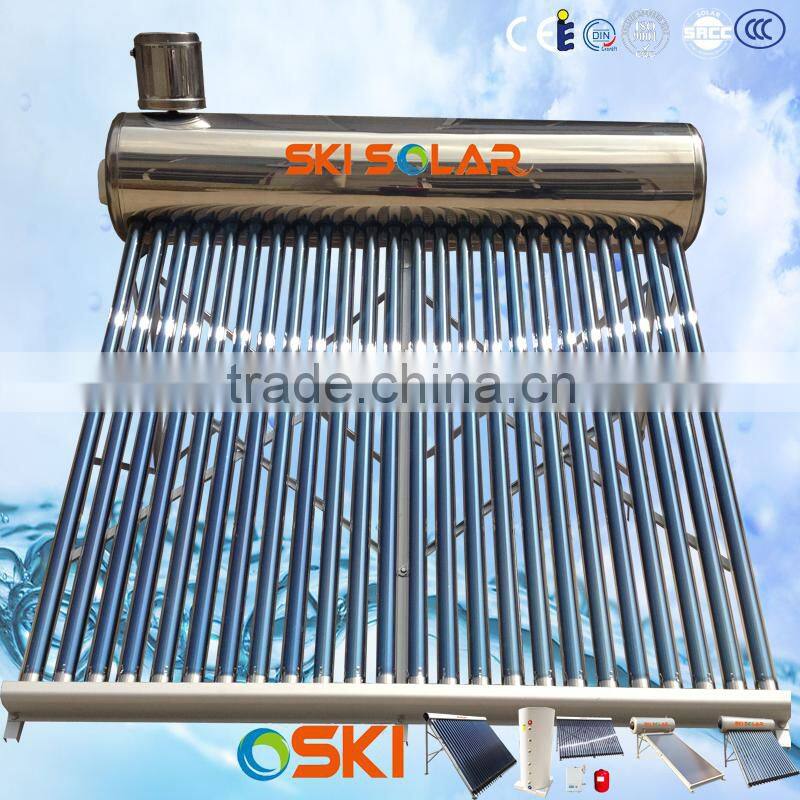

portugal solar water heater
What is the Feature of this solar water heater?
1.Adopt the most advanced enamel coating technology.The storage tank is 3-7 times of the normal one.
2.System operate under pressure.It has the characteristics of high intensity,anti-cold and hot shock.
3.Heat pipe is with high absorbing effciency,which is 1000 times faster than copper.
4.Longer heat preserving time,at least 100 hours
5.Enamel interior has the property of heat-insulation;the annual heat consumption index only 5-10%
6.Solar energy and electricity works together,ensuring the supply of hot water in 24 hours
| MODEL | Integrated pressurized solar water heater with enamelled tank |
| Inner tank material | 2mm enamelled pressed steel coated 0.5mm porcelain enamel |
| Outer tank material | colored steel sheet,thickness:0.4mm/stainless steel sheet,thickness:0.4mm/galvanized steel sheet,thickness:0.4mm |
| Outer tank diameter | 460mm/480mm |
| Insulation layer | 55mm,heat preservation 100 hours |
| Frame and frame angle | aluminum alloy,thickness:2mm 0-45°/stainless steel,thickness:1.2mm 27°,30°,38°,45°/galvanized steel,thickness:1.2mm 27°,30°,38°,45° |
| Heat pipe | ø58mm*1800mm,three high vacuum tube |
| Lowest working temperature | -10°C/-40°C |
| Heat pipe condenser size | 9mm |
| Working pressure | 7bar/0.7MPa |
| Testing pressure | 12bar/1.2MPa |
| Needed accessories | electrical heater,T/Pvalve, one way safety valve, Magnesium bar,controller, working stain,plastic cap |
| Hail resistance | 20mm |
| Model | Absorbing area(m2) | Heat pipe | Tank Capacity | Qty.(Sets) | |||
| Diameter | Length | Number | 20" | 40HQ | |||
| SKI-PP 470-1800/58-15 | 2.07 | ø58mm | 1800mm | 15 | 136L | 41 | 91 |
| SKI-PP 470-1800/58-16 | 2.21 | ø58mm | 1800mm | 16 | 145L | 44 | 98 |
| SKI-PP 470-1800/58-18 | 2.49 | ø58mm | 1800mm | 18 | 160L | 40 | 90 |
| SKI-PP 470-1800/58-20 | 2.76 | ø58mm | 1800mm | 20 | 175L | 35 | 73 |
| SKI-PP 470-1800/58-24 | 3.32 | ø58mm | 1800mm | 24 | 208L | 30 | 68 |
| SKI-PP 470-1800/58-30 | 4.15 | ø58mm | 1800mm | 30 | 256L | 25 | 55 |

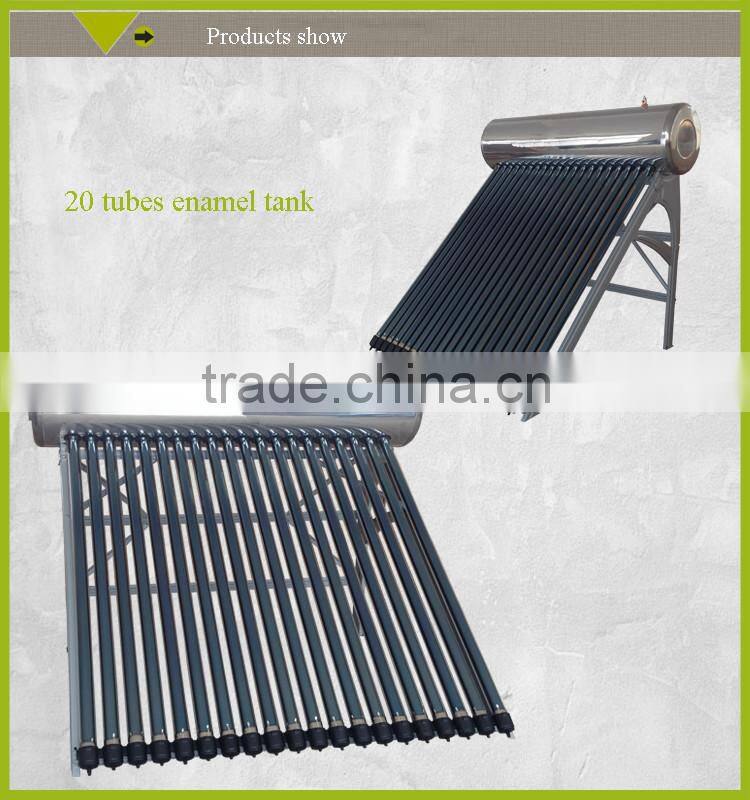

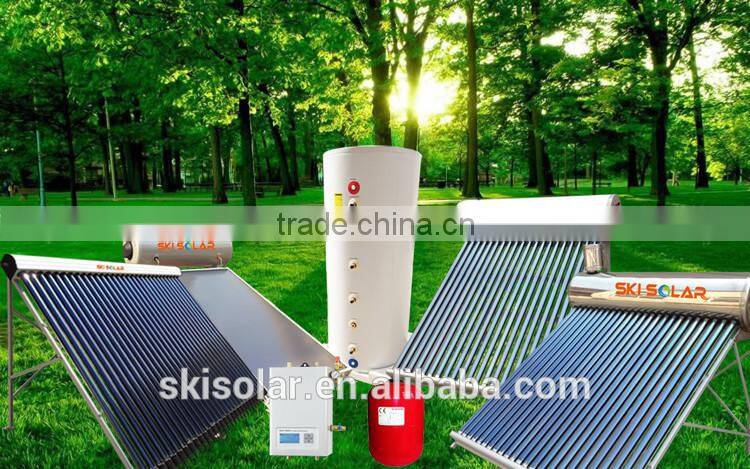

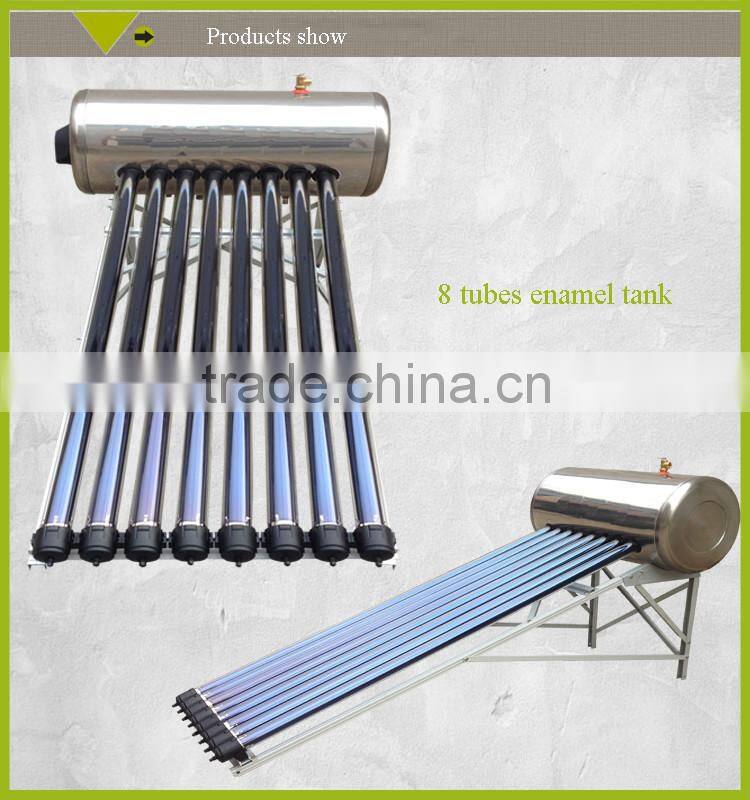

Can you show me more products pictures?
What is the Working principle of this products?
1.The heat pipe series solar heat pipe collector are always connected with existing heating supply device.
2.The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum fins.
3.The liquid in the heat pipe changes into vapour which rises to the condenser.
4.The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the base of the heat pipe.
5.The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.
6.This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

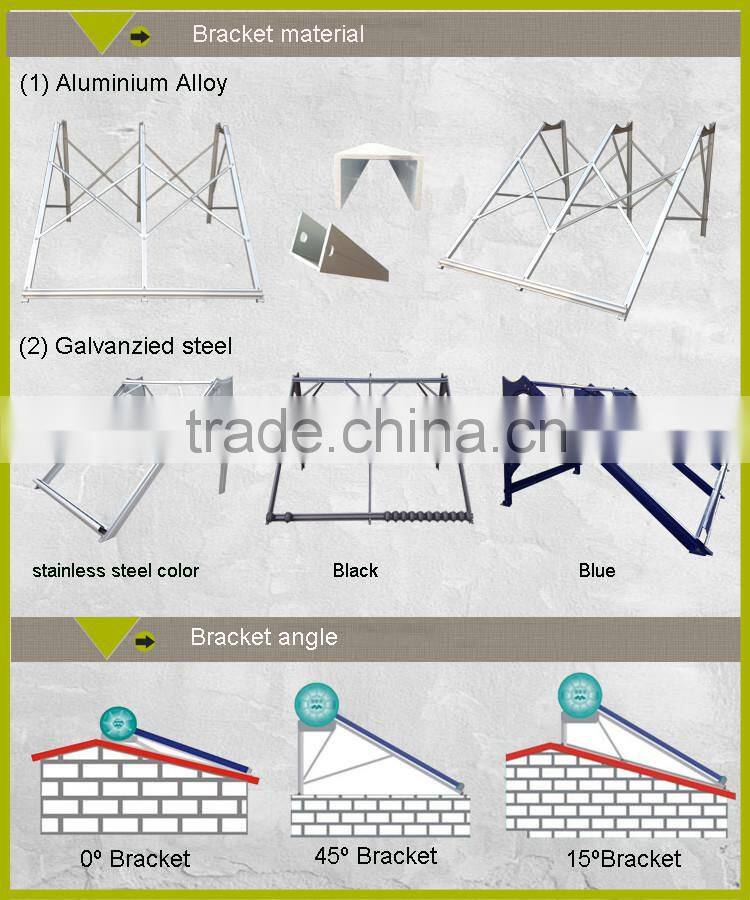

What is the Bracket material and Angle?
What is the Accessories of this product?
Comparision with other manufactures

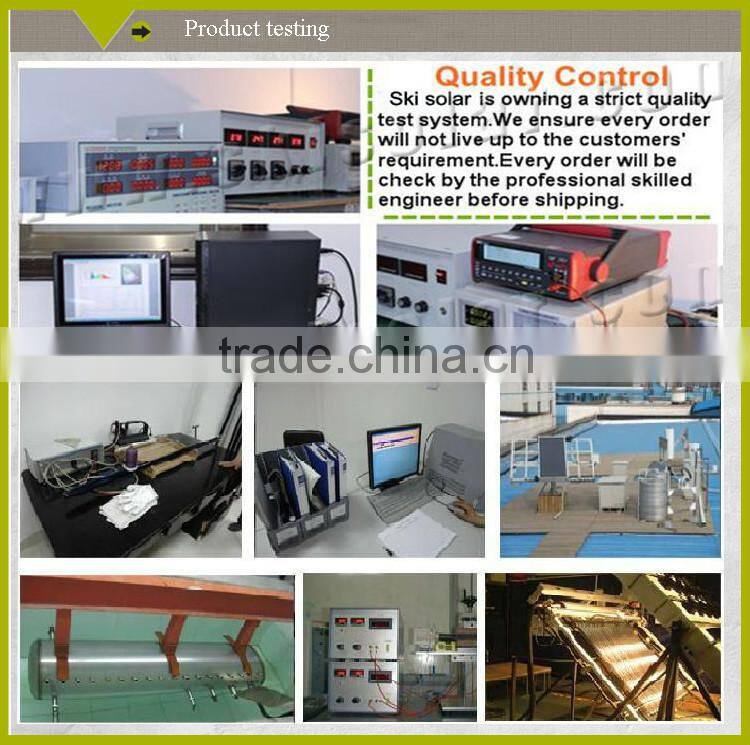

How do you make the Quality control?

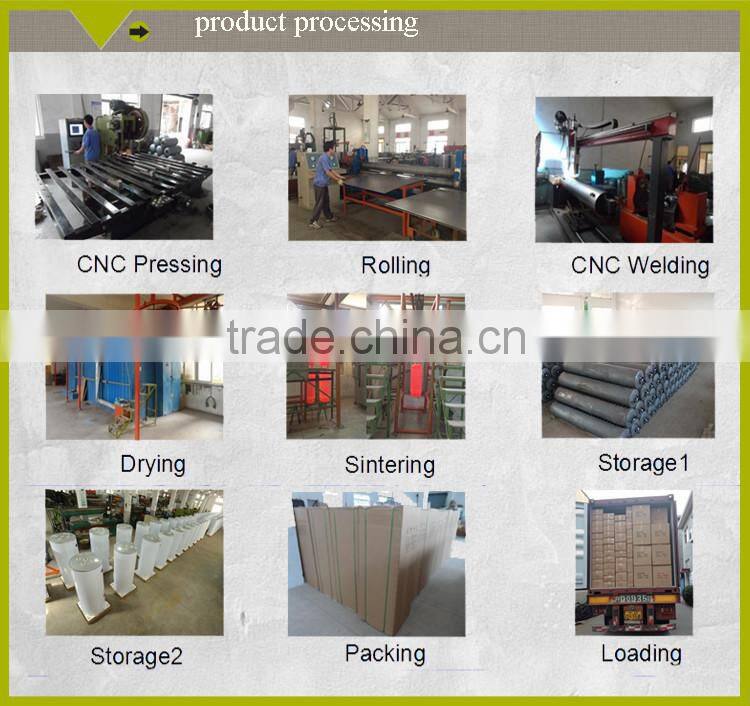

What is the products proceduring?

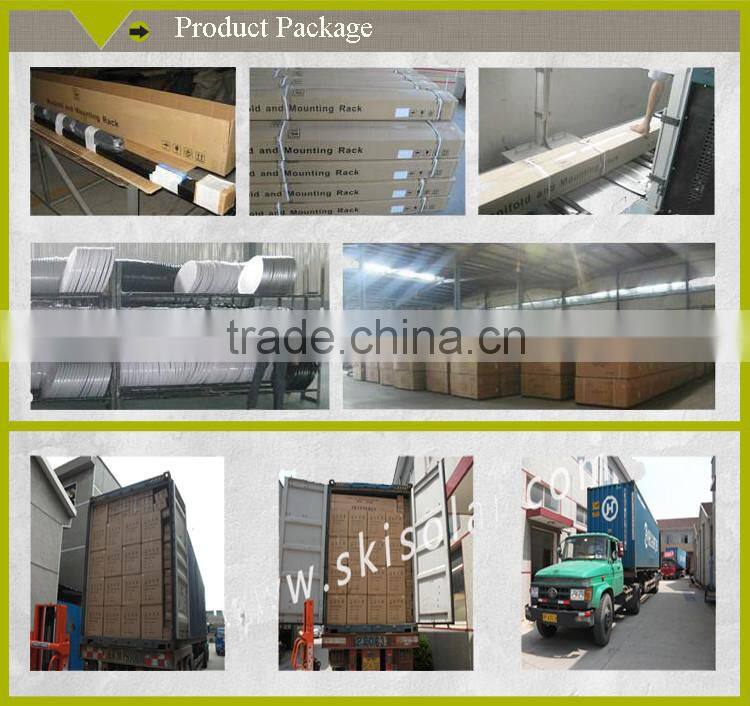

What is the products Package?

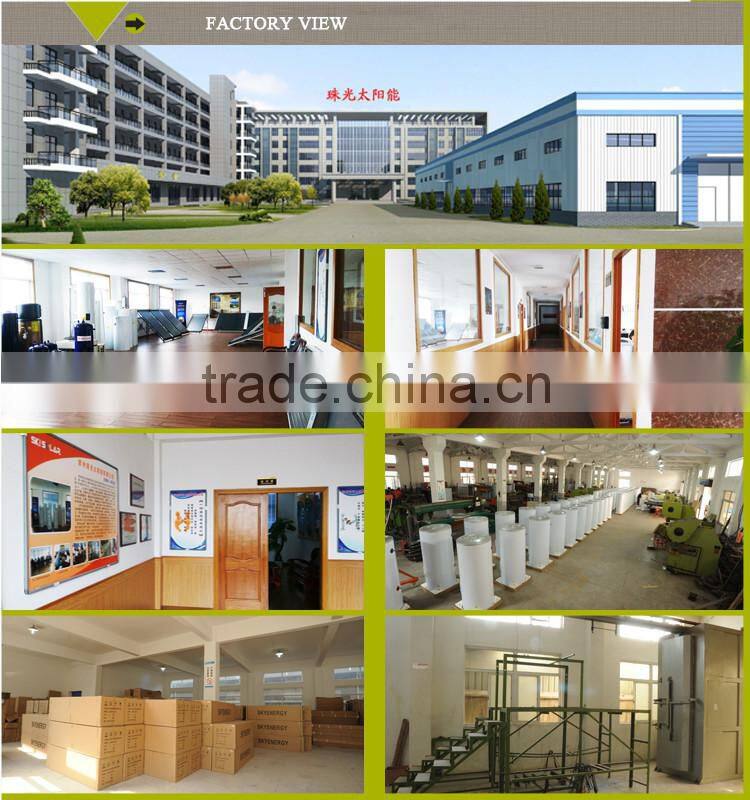

What is your factory look like?
SKI Solar Energy Co.,Ltd.located in Changzhou,jiangsu province,which is only 180KMs far away from the biggest city-Shanghai.Our company is an OEM/ODM manufacturer in the R&D,production and marketing of solar products. We are one of the largest solar manufacturers and exporters of solar water heaters in China. It is with rich technical force,well equipments and a number of high-precision mechanized production lines.It has a production capacity of 10000 sets solar water heaters annually,ranking the size of the domestry industry forefront.The products have been exported to over one hundred countries such as USA,Europe and so on.Our products won great acclain from our clients.
Our service for you
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2.We have full stock which can delieved withine a short time, and also many styles for you to choose.
3. We accept all types of Logo design and printing, OEM and ODM orders are available.
4.We are trying to offer you the best quality, the lowest factory price, the fastest response and than the most reliable service.
5. We have the professional technical group and foreign trade team with high-efficiency and rich experience.
After you choose
1. We will count cheapest shipping cost and make invoice to you immediately.
2. We will check our quality again, and then send out to you at 1-2 working days after receiving your payment.
3.Email you the tracking number, and help to chase the parcels until you receive the product.
After-sale service
1. We are very glad that customers give us some suggestion for price and products.
2. If any question,please contact with us freely by E-mail or Telephone.
3. Warranty:5 years international responsibility for pre-heat solar water heater and 15 years for glass vacuum tubes due to original quality problems.
A:Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
Q2:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
For our range hood motors it is lifelong maintenance.
Q3 :Do you have inspection procedures for solar water heaters?
A:100% self-inspection before packing.
A:Sure,welcome to visit our factory.
Here is our factory address:Niutang Industrial Park, Wujin District, Changzhou, Jiangsu, China.
Hotel booking service is available.
