Specifications
Energy-efficient and GreenSolar water heater--Solar split system without copper coil--SKI-SA (ISO&CE certificated)
Product description:

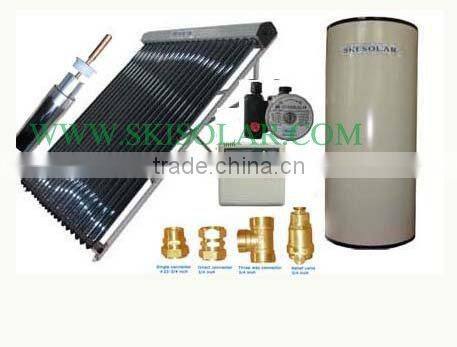

SKI-SA contains three main parts: Solar Collector, Working Station and Water Tank. The solar collector installed on roof or wall. The tank can be put anywhere of the house, so the whole system is harmonious with the building. The heat was transferred from solar collector to the tank by controller. High efficiency and cost save. And if the sunshine is not enough, the user can apply to electric heating element for back up. Even if in cloudy or rainy day, the user can enjoy hot water. It is ensured that when using heat pipes no water goes into the tube and there are no incrustation, no bursting. Moreover, water can go upward at anytime.
Working Principle:

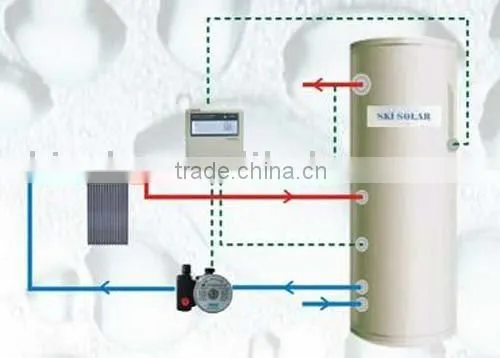

When the temperature difference between solar collector and tank reaches the set value, the controller will start the circulation pump automatically. The circulation pump makes hot water circulate. The hot water into the tank and the cold water goes to the solar collector. When the temperature difference between solar collector and tank doesn’t reach the set value, the circulation pump will be shut automatically. In case the temperature of the water tank does not reach Tmax, Electric Heating Element will start to work automatically. As shown in Fig-1.
Specifications:
Inner tank: Titanium Steel, thickness: 2mm and Enamel Coating, thickness: 0.5mm.
Outer tank: Colored Steel Sheet thickness: 0.5 mm
Tank Include: 1.5kw or 2.5kw Electric Heating Element, T&P Valve, Mg Anode, sensor.
Tank Capacity: 80 L to 500 L
Working Pressure: 0.6 Mpa

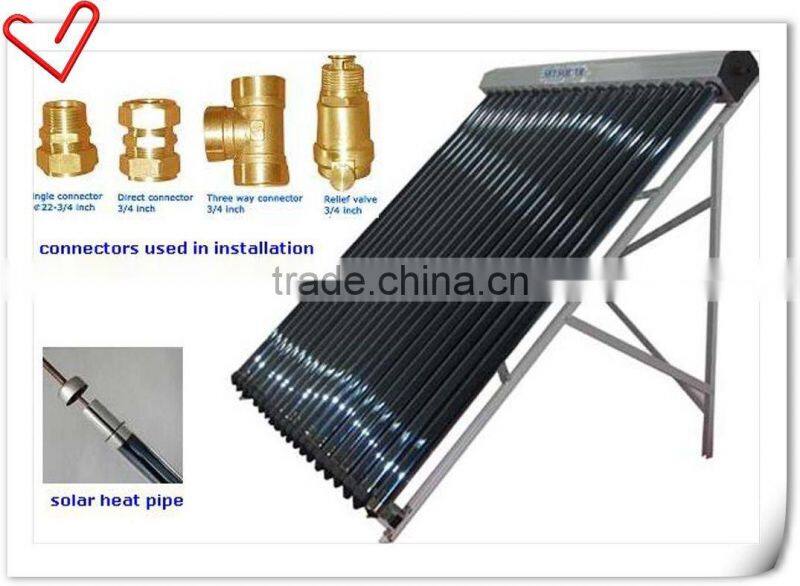

Vacuum tube: Heat Pipe.
Vacuum tube model: 58mm×1800mm
Frame: Adopt galvanized steel. Thickness:1.5mm.
Accessories: Circulating Pump, Solar Controller
advantage of porcelain enamel tank:
1. Excellent working condition & longer service life: no leakage, rust-free, high strength and strong resistance to corrosion
2. Clean energy and green product: no poisonous metal such as plumbum, hydrargyrum and chromium, bring health to your life;
3. Blue-Gold Titanium steel is insulated and can help preserve heat.

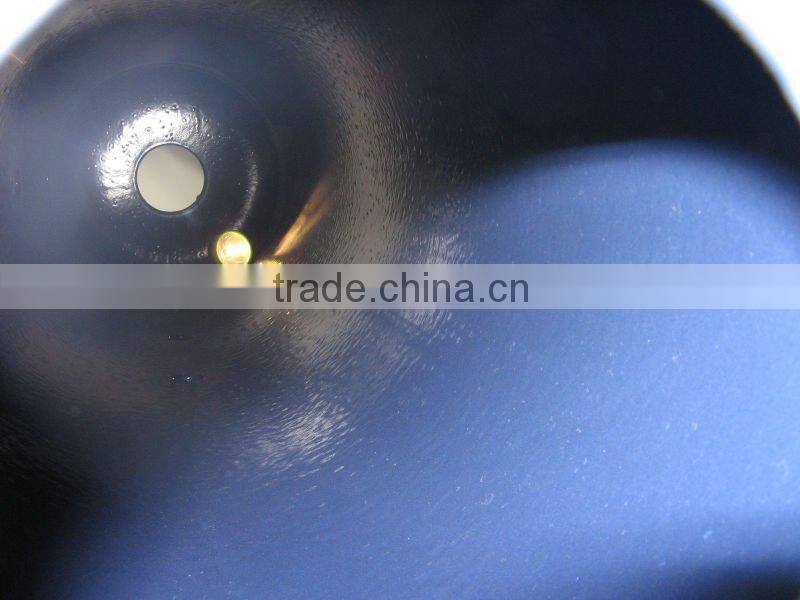

Enamel Tank
Certifications:
