low price mini solar panel

FOB Price

USD $80 - $256 / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Evacuated Tube	Pressure	Unpressurized
Circulation Type	Direct / Open Loop (Active)	Heating System	Batch / ICS (Passive)
Connection Type	Direct-Plug	Installation	Freestanding
Housing Material	Stainless Steel	Certification	CE
Capacity	250	Place of Origin	Jiangsu, China
Brand Name	SKI SOLAR	Model Number	SKI-NB

Product Description

low price mini solar panel

Product Description

What's the model of our solar hot water heater?

Model	Absorbing area(m2)	Heat pipe			Tank Capacity	Qty.(Sets)
Model	Absorbing area(m2)	Diameter	Length	Number	Tank Capacity	20"	40HQ
SKI-NB 1800/58-12	1.98	ø58mm	1800mm	12	120L	57	140
SKI-NB 1800/58-15	2.48	ø58mm	1800mm	15	150L	47	117
SKI-NB 1800/58-16	2.65	ø58mm	1800mm	16	160L	44	109
SKI-NB 1800/58-18	2.97	ø58mm	1800mm	18	180L	40	96
SKI-NB 1800/58-20	3.3	ø58mm	1800mm	20	200L	35	88
SKI-NB 1800/58-24	3.96	ø58mm	1800mm	24	240L	30	75

What's the specification of our solar hot water heater?

Specifications:

1) Tank:

Tank material (exterior): Colored Steel Sheet, 0.4mm thick

Tank material (interior): Specification SUS3042B 0.4mm thick

Tank Capacity: 138L - 250L

Outer Tank Diameter: 460mm

Accessories: 1.5 KW Electric Heating Element, Mg Anode, Solar controller, Auxiliary tank (optional);

2) Glass Vacuum Tube

Diameter: 58mm

Length: 1,800mm

3) Support: Galvanized Steel, 1.5mm

4) Accessories: auxiliary tank /solar controller (optional)

5) Operating pressure: no pressure limited

6) The tubes and supports are adjustable.

7) Silicon rings to connect and seal them.

8) Stainless steel tank

9) Welded by high efficiency rolling welding machine

10) Easy to ship and install

Stainless steel tank

Working Principle

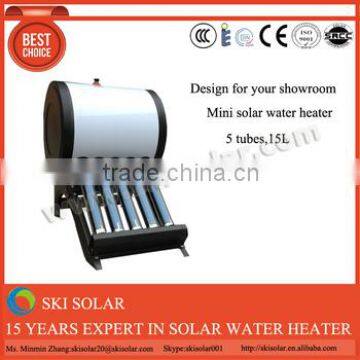

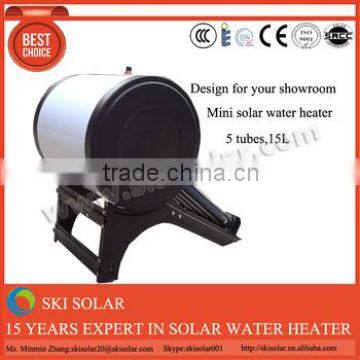

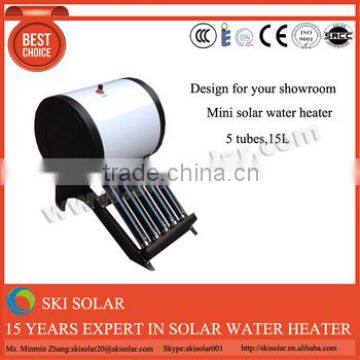

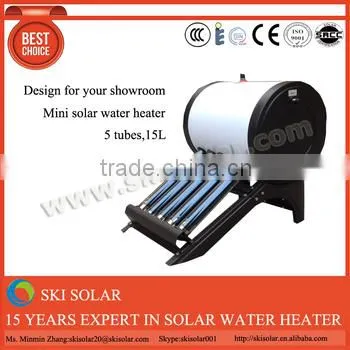

Product Photos

Accessories optional

Whats the application of our solar hot water heater?

1. Hotels, resorts, hospitals and hostels

2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)

Packaging & Shipping

Packaging & Shipping, Trade Terms

Shipping

1. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

2. Customers specifying freight forwarders or negotiable shipping methods!

3. Delivery Time: 7-10 days for samples; 15-25 days for batch goods.

Payment Terms

1. Payment: T/T; 30% deposits; 70% balance against copy of original BL.

2. MOQ: 1pcs

3. Warranty : 5 years for water tank, 3 years for the collector

Our Services

1.We are Alibaba Assessed 9 years Gold Supplier.

2.We are a factory manufacturing solar water heaters,best production capability ,best quality control, Best Service .

3.Inspected by the Inspection Institution of Technischer überwachüngs Verein Certification.

4.100% QC inspection Before Shippment.

5. CE/ISO/EN 12975 listed,competitve price.
