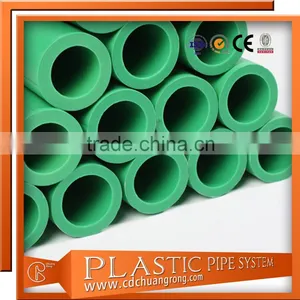

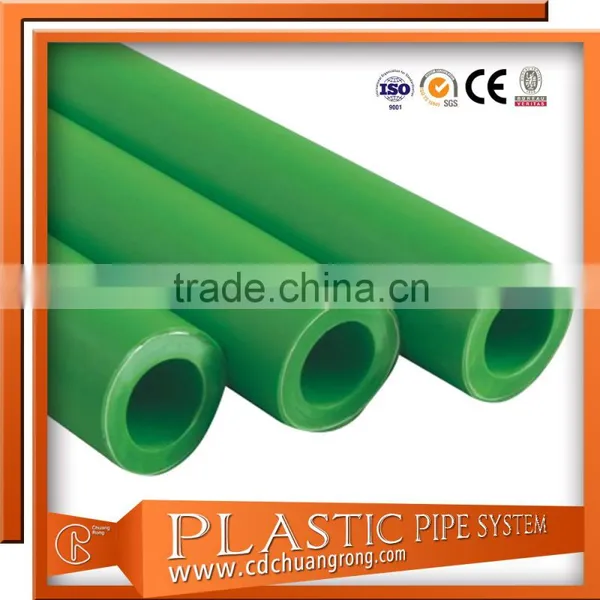

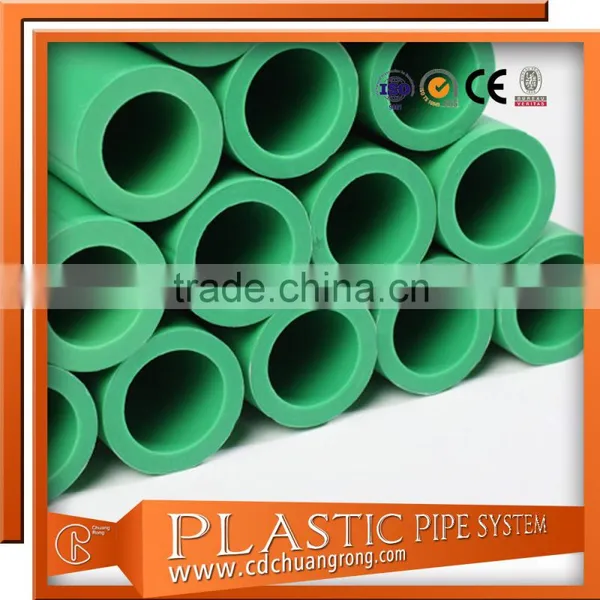

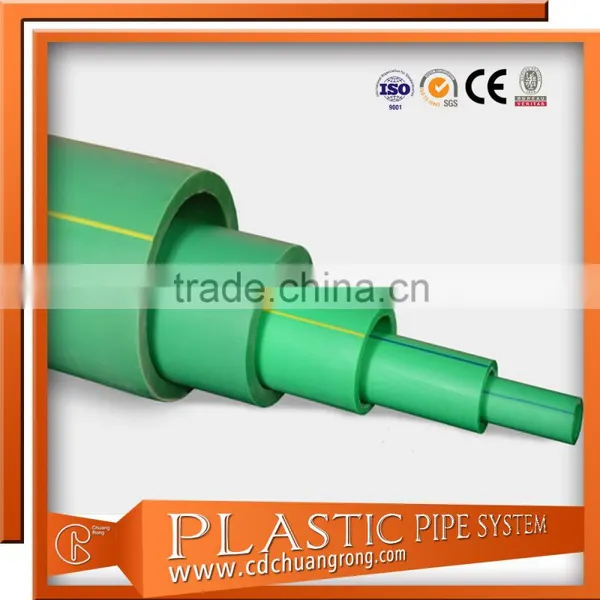

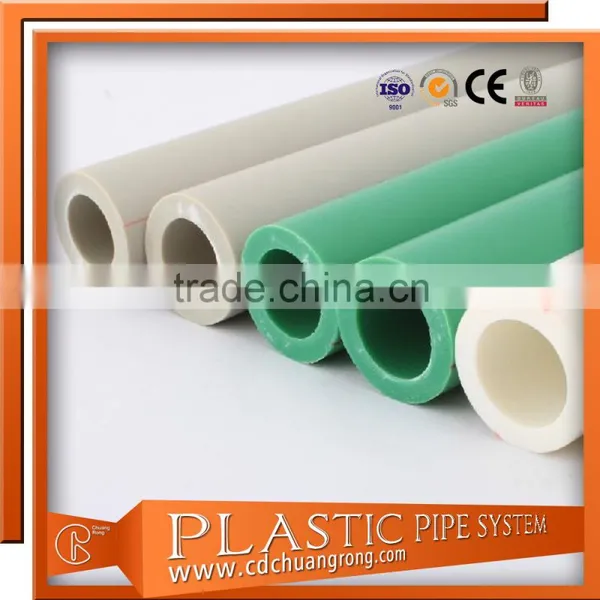

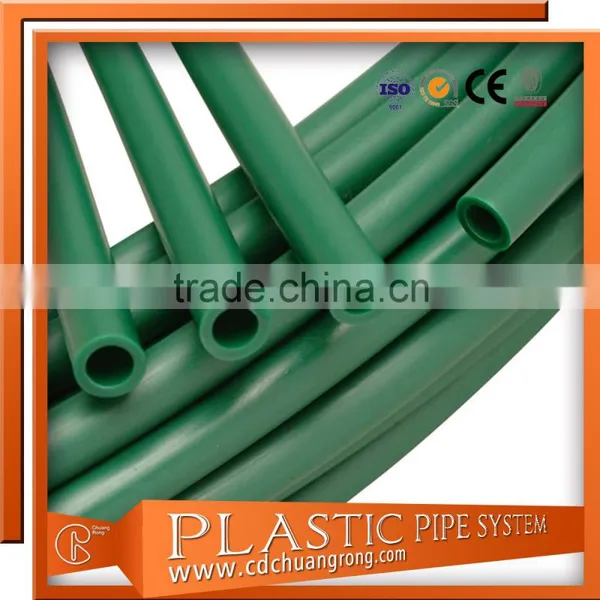

PPR Hot / Cold Water Supply Pipe:
Specification:
1.Material:High quality virgin PPR
2.Diameter:20-110mm
3.Pressure:PN10 to PN20
4.Standard:GB/T48742.2-2002
5.Connection:Socket Fusion
Features:
1.Green,environmental protection,sanitation non-toxic,
2.Good stability,resistance to high temperature and pressure.
3.Excellent anti-aging properties,service life over 50 years.
4.A hot mele homogeneity connect to eliminate hidden drangers of leakage.
Application:
1.Portable water supply in residential buildings,hospital,hotels,shipbuilding etc.
2.Pipe networks for rainwater utilization systems,swimming pool facilities,
agriculture and horticulture,industry
3.Heating pipe for residential building.
Specification:
GB/T18742.2-2002 polypropylene piping systems for hot and cold water
|
Nominal outside diameter Dn(mm) |
Nominal wall thickness en(mm) |
length L (m) |
|||||
| S5 | S4 | S3.2 | S2.5 | ||||
| 20 | 2.0 | 2.3 | 2.8 | 3.4 | 5.8m or 11.8m | ||
| 25 | 2.3 | 2.8 | 3.5 | 4.2 | |||
| 32 | 2.9 | 3.6 | 4.4 | 5.4 | |||
| 40 | 3.7 | 4.5 | 5.5 | 6.7 | |||
| 50 | 4.6 | 5.6 | 6.9 | 8.4 | |||
| 63 | 5.8 | 7.1 | 8.6 | 10.5 | |||
| 75 | 6.8 | 8.4 | 10.3 | 12.5 | |||
| 90 | 8.2 | 10.1 | 12.3 | 15.0 | |||
| 110 | 10.0 | 12.3 | 15.1 | 18.3 | |||
Note: the pipe dimension can be customized.
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.
Our products:1.Plastic pipe,pipe fittings and valves (PE PP PVC),
2.Plastic pipe welding machine and tools 3.pipe repair clamp
Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
