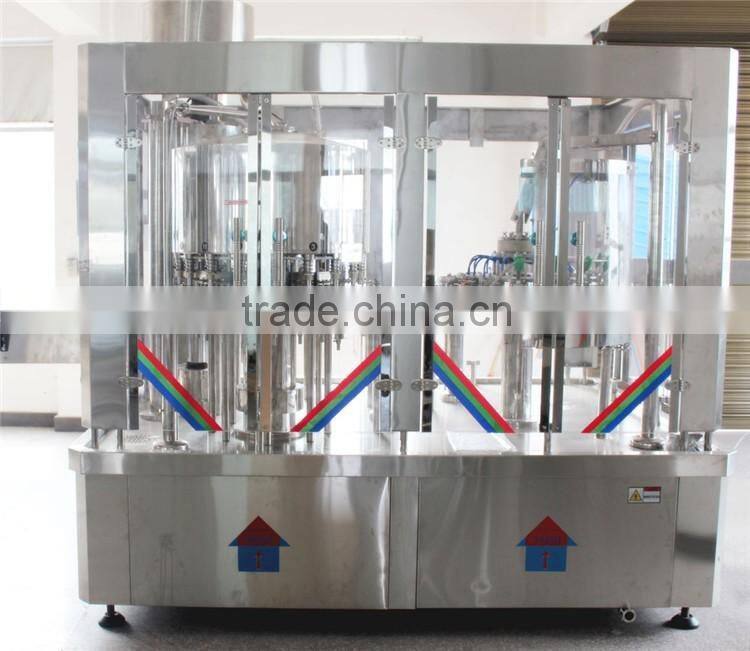

Help CenterBottled Pure Water Production Line 3-in-1 Machine Water Filling,washing,capping
Related Products
-
18-18-6 Automatic Liquid Filling,washing,capping 3-in-1 Machine for Water ,wine,juice,beverageUS$ 18,000 - 23,000MOQ: 1 Set -
GDP-12 Semi Automatic Liquid Filling Machine for Water ,wine,juice,beverageUS$ 580 - 1,300MOQ: 1 Set
-
Semi-automatic Double Nozzles Pneumatic Liquid Filling Machine /fillerUS$ 750 - 2,000MOQ: 1 Set
-
5 Gallon Water Filling Machine(a Complete Set)NegotiableMOQ: 1 Set
-
Ecnomic Filling Machine Liquid (Hot Sale)US$ 21,500 - 33,900MOQ: 1 Set
This series of equipment is mainly used for a variety of polyester bottles of mineral water, purified water and other non-carbonated beverage production, realization washing bottle, filling and capping in one machine.
This machine is convenient to operate, easy to clean, with high efficiency and
all the mechanical structure, stable work.
Main features of liquid filling machine:
1, The machine uses the card to run bottleneck suspension design work state, so that the bottle at high speed running smoothly and reliably, while significantly reducing the number of parts to make the change when replacing the bottle more convenient and faster.
2, Using a new generation of stainless steel flip-bottle holder, and bottle screw clamp so do not touch the section above, and a nozzle, rinse the inner wall of the bottle full, no dead ends.
3, Using advanced gravity filling technology, filling fast, steady, accurate.
4,Using magnetic torque screw lid, to achieve catch cover, screw cap. Stepless torque screw cap, seal tight and reliable, and does not hurt the cover.
5, Human machine interface touch screen buttons, PLC computer control with a lack of cover, overload warning device, timely detection and troubleshooting, high degree of automation.
6,With water contact parts are made of stainless steel, the main electrical components are internationally renowned manufacturers.
Technical parameters of liquid filling machine:
| Model | LF18-18-6 |
Power |
4KW |
Filling head |
18 |
Filling volume |
200-1500ml |
Filling liquid surface error |
±1% |
|
Range of bottle diameter
|
φ50—φ92mm |
Range of bottle height |
140--330mm |
Inner diameter of the bottleneck |
φ20--φ30mm |
Capacity |
8000 b/h(500ml) |
Weight |
3500kg |
Dimension |
250*170*230cm |

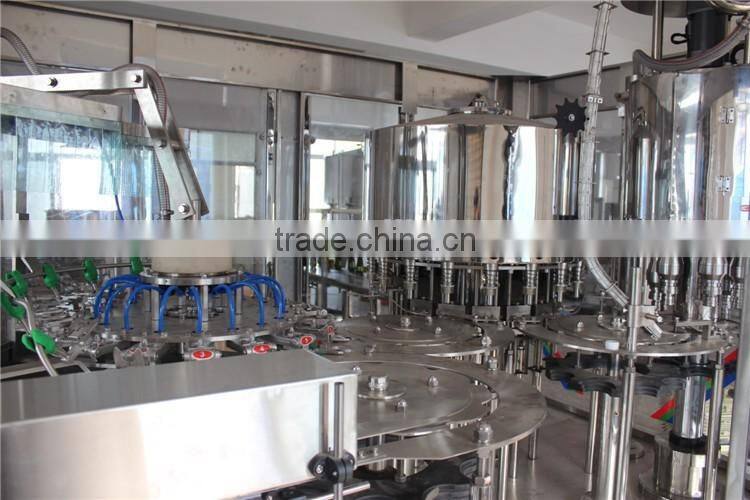

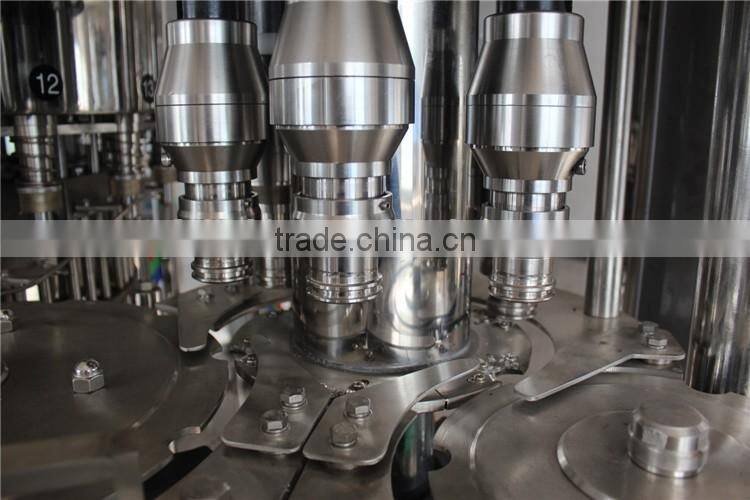

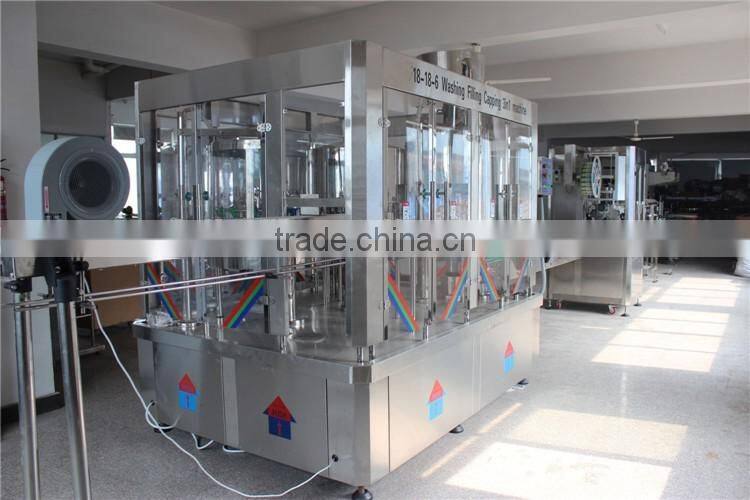

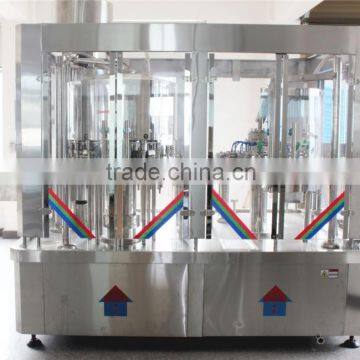

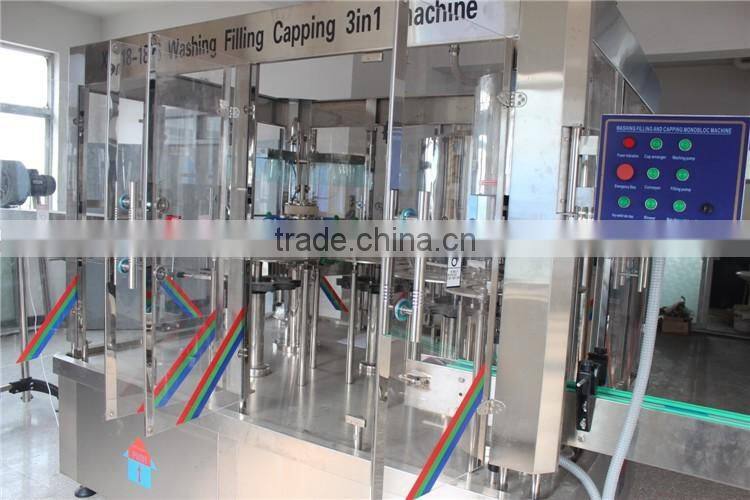

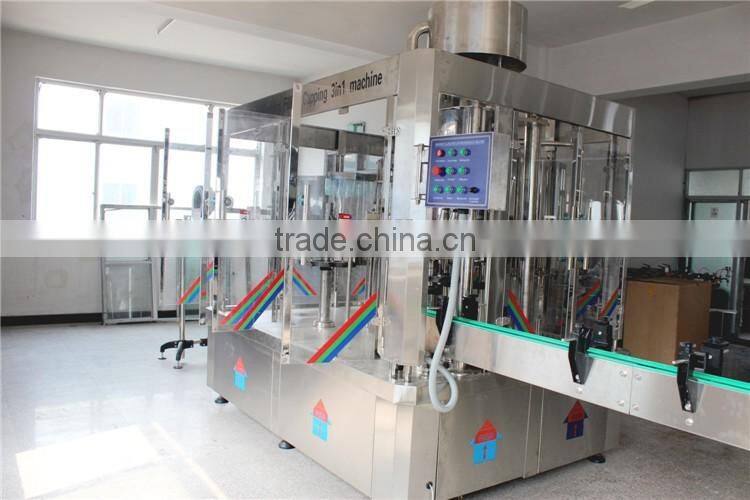

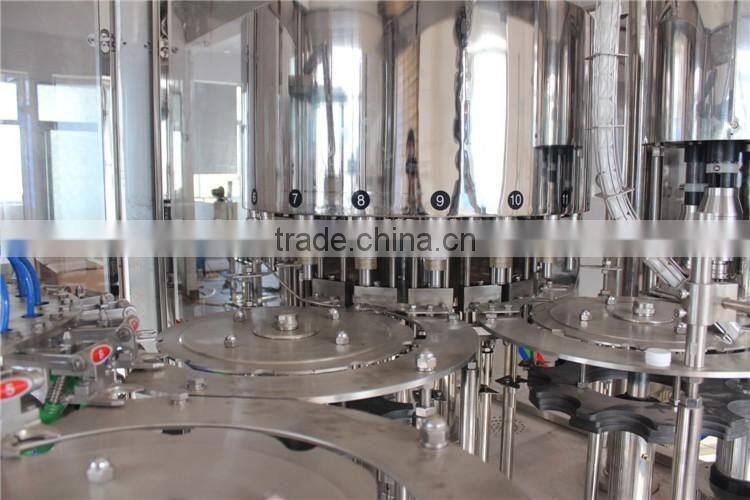

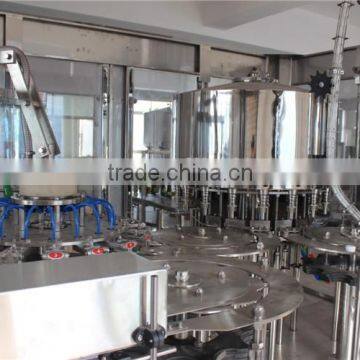

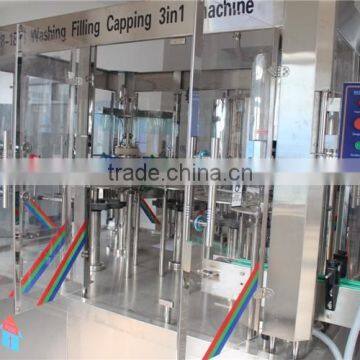

Product pohots
Packaging: wooden packing
Shipping:by sea or by air. we always choose the most efficient and best service route.
(1) 100% factory tested before shipment
(2) 1 Year's Quality Warranty
(3) Solve problems within 24 hours
(4)Technical support&online support
1. Q:Are you a manufacturer or a trading company?
A:We are the manufacturer with over 15years experience.
2. Q:What's the payment terms?
A:T/T,30% deposit and 70% balance before delivery. We also accept L/C.
3. Q:How to order?
A:You can send me an inquiry,then we could comfirm the details through emails or telephone.
4. Q:How much is the transpotation freight?
A:The freight depends on the weight and size,also the destination port.
5.Q:Is this machine easy to install? Will you arrange engineer to help me install?
A: we can dispatch our engineer to your factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer.
Wenzhou laifu Machinery Manufacturing CO., Ltd is established in 1991. We are the professional manufacturer and exporter of pure water treatment line, mineral water treatment line, bottle water and barrel water filling system, juice and beverages producing line in China.
Our products include:active carbon filter, sand filter, micron filter, RO system, ozone sterilizer, UV sterlizer, semi automatic and automatic washer, filler, capper ,packing machine and so on.
Along with the development , our products are sold to all over the world such as USA, India, Indonesia, Vietnam, Nigeria, Middle east, etc.
