PPR Pipe Socket Fusion Welding Machine
Socket Fusion Machines(PRISMA 125)
Building site and workshop machines for socket fusion of pipes and fittings in accordance with the standards in force. The welding machines is available in two versions, depending on the type of sockets & spigots supplied: For type A and B
Building site/workshop machine
Working range up to Ø 125 mm
Light and easy to transport
Device to select the welding depth
Standard Composition
-Machine body complete with an electronic socket welder
-Steel case complete with sockets and spigots from Ø 25 to Ø125 mm and tool kit
-Pipe support tripod
-Sliding trolley
Technical Feature
| Working Range | 25-125mm |
| Power Supply | 110V,230V |
| Single phase 50-60Hz | |
| Total power absorbed | 1400W |
| Working temperature | 180ºC~280ºC |
| Room temperature range | -5ºC~40ºC |
| Time to reach welding temperature | ~10 min |
| Materials | PE, PP, PP-R, PB, PVDF |
| DIMENSION(WxDxH) | |
| Machine working | 1080*840*580mm |
| Transport wooden case | 1500x800x1300mm |
| WEIGHT | |
| (Prisma 125 only) | 100Kg |
Inspection:

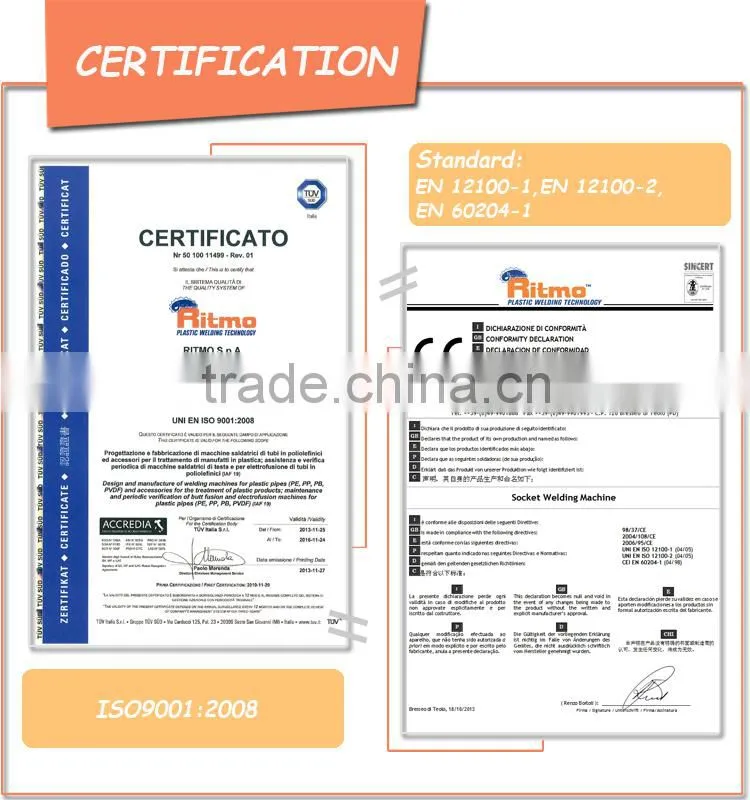

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
All kinds of products are regularly conducted pressure-tight blastingtest,
longitudinal shrinkage rate test, quick stress crack resistance test,tensile test and melt index test,
so as to ensure the quality of products totally reach the relevant standards from raw materials to
finished products.
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.
Our products:1.Plastic pipe,pipe fittings and valves (PE PP PVC),
2.Plastic pipe welding machine and tools 3.pipe repair clamp
Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
