solar balcony panel solar panel made in china

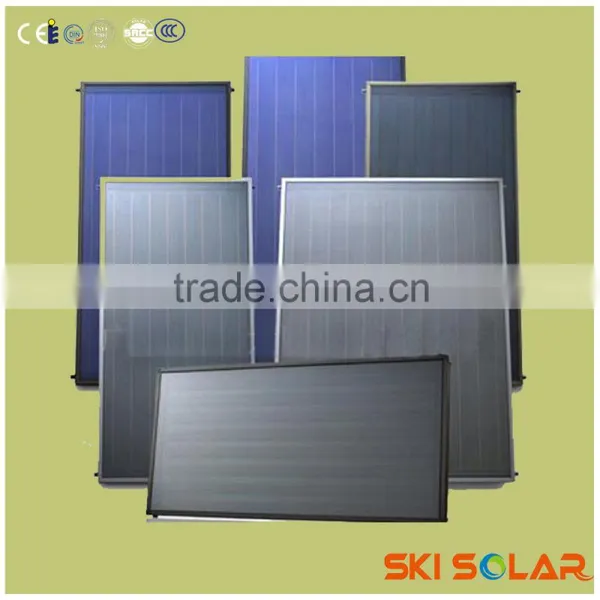

What is the flat plate solar collector?
Flat Plate Solar collectors contain an insulated layer and weatherproof box. The box contains a dark absorber plate, covered by one or more transparent or translucent glass. Water or conducting fluid passes through pipes located below the absorber plate. As the fluid flows through the pipes it is heated. The flat plate solar collector is with high efficiency and reliable utilization. It is widely used at split pressurized solar water heater. The collector can be installed on roof or wall and it is harmonious with the building.
What is the specification of the flat plate solar collector?
Specifications of flat plate:
Dimension L*W*T |
2000mmX1000mmX80mm |
Gross area |
2.00m² |
Aperture area |
1.84m² |
Absorber area |
1.73m² |
Cover |
Tempered Glass |
Cover transmission |
89% |
Net weight |
35kg |
Surface treatment |
chrome plating |
Absorber material |
TP2 copper |
Insulation |
Rock wool, glass fiber cotton (black backing) polyurethane compound |
Insulation thickness |
Back:45mm; Side:20mm |
Border |
Aluminum alloy |
Water Tank Specifications:
Tank Capacity |
Solar Collector |
Electrical backup |
Electrical backup |
| 100l | 2m² |
1.5kw |
2-3 |
| 200L |
2m² or 4m²
|
1.5kw |
3-4 |
| 300l | 4m² |
2.5kw |
5-6 |
| 400L | 8m² |
2.5kw |
8-10 |

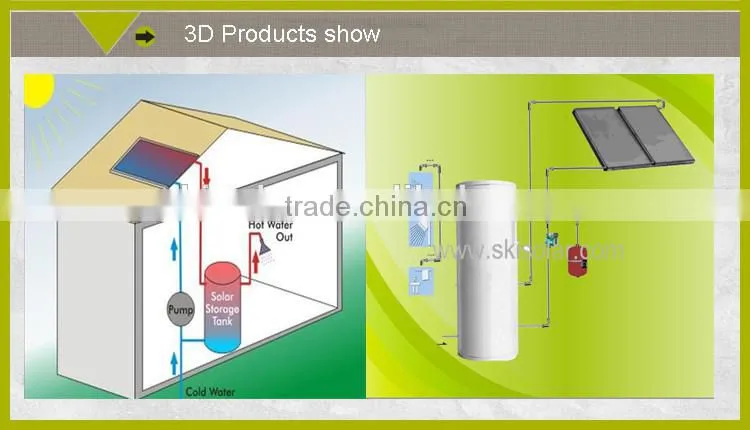

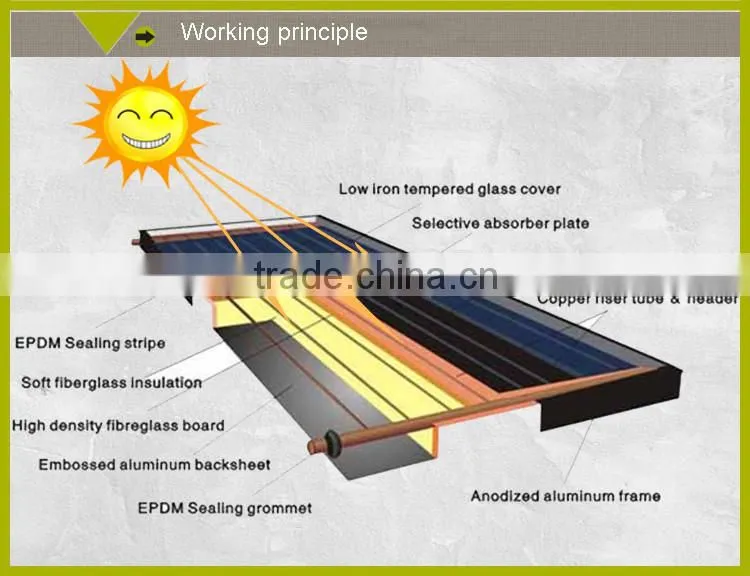

What is the technology of this flat plate solar collector?
Design Advantages:
♦High efficiency:S-type tube structure initiated in China,the low-flow instant efficiency can up to 81.1%
♦High safety:yphoon,hail,snow,heavy rain resisted design
♦ Pressurized operation:working pressure 0.75 Mpa,test pressure 1.2 Mpa
♦ Anti-low-temperature:can still work properly under -40°c

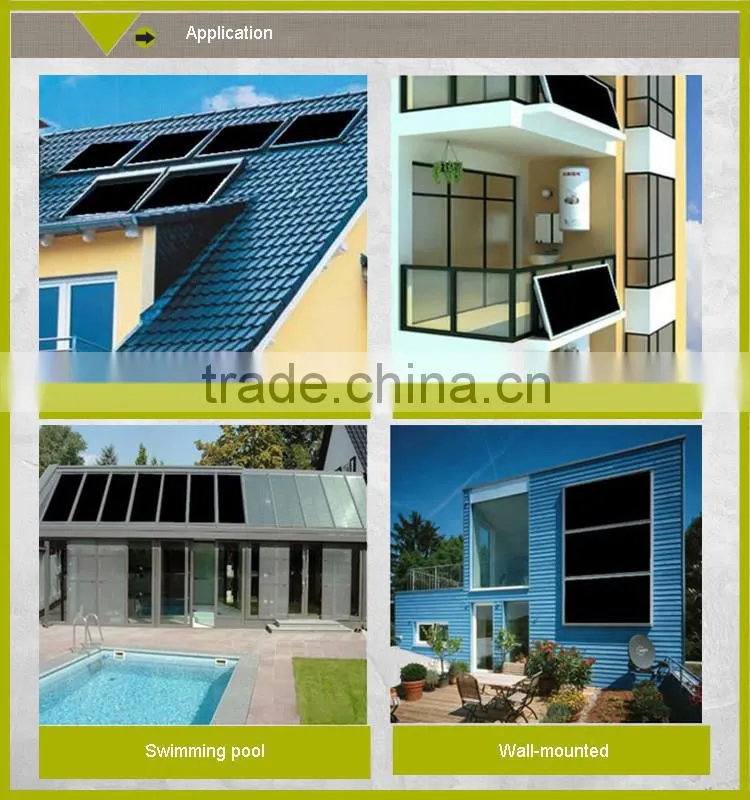

How to use this flat plate solar collector?

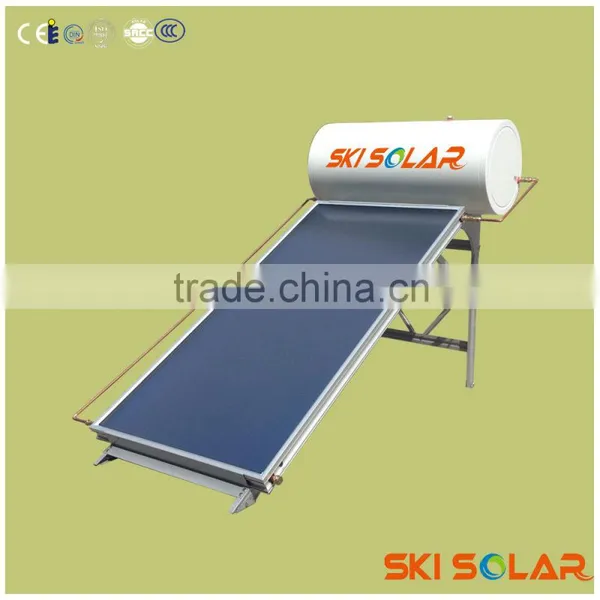

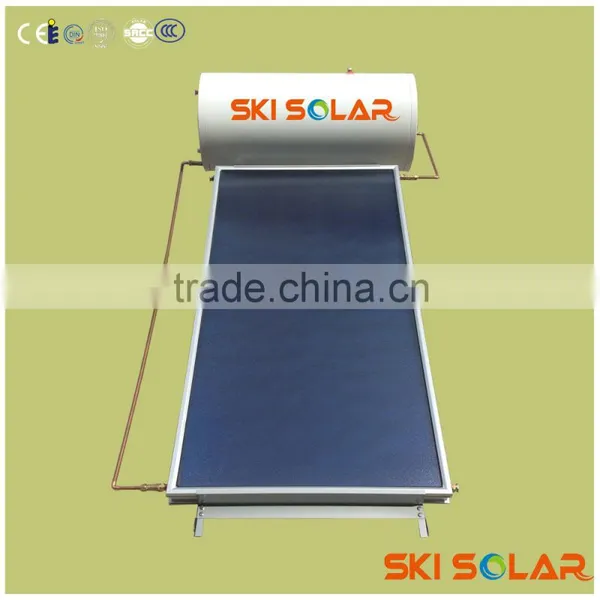

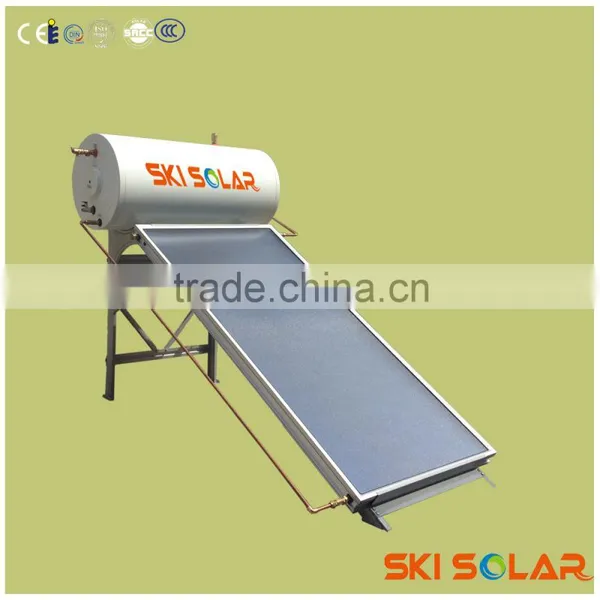

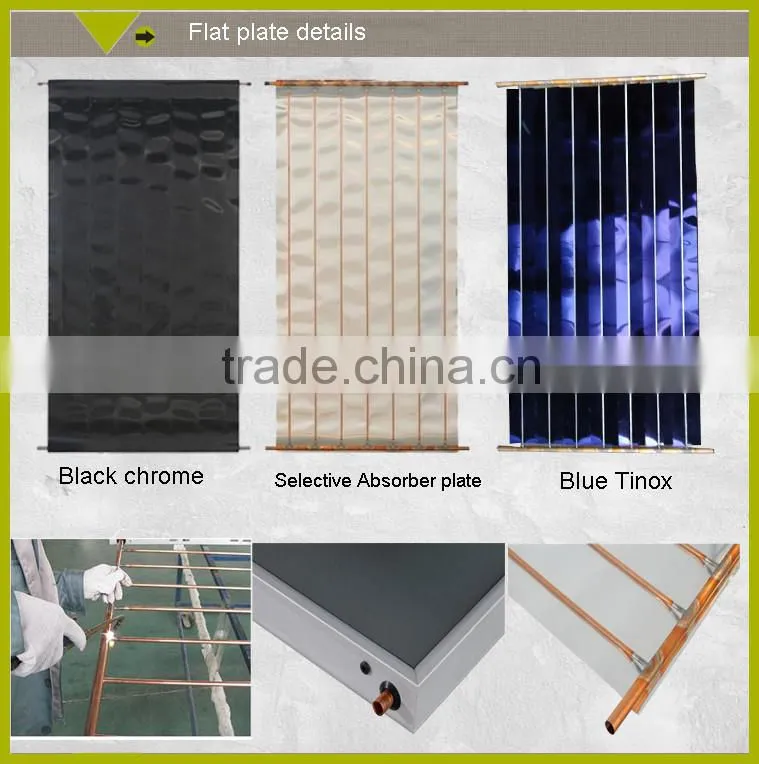

What is the details of this flat plate solar collector?

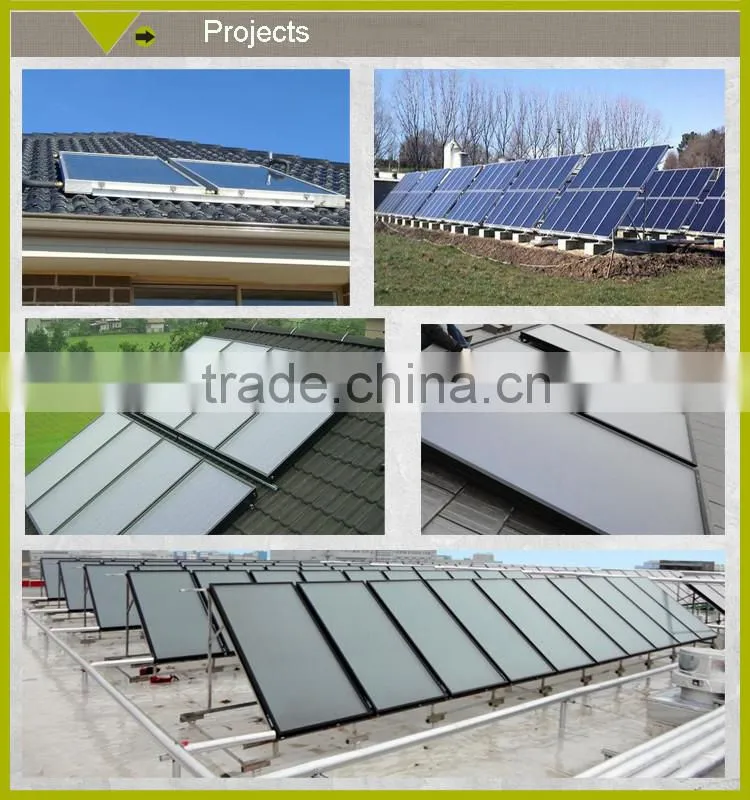

Projects of this flat plate solar collector

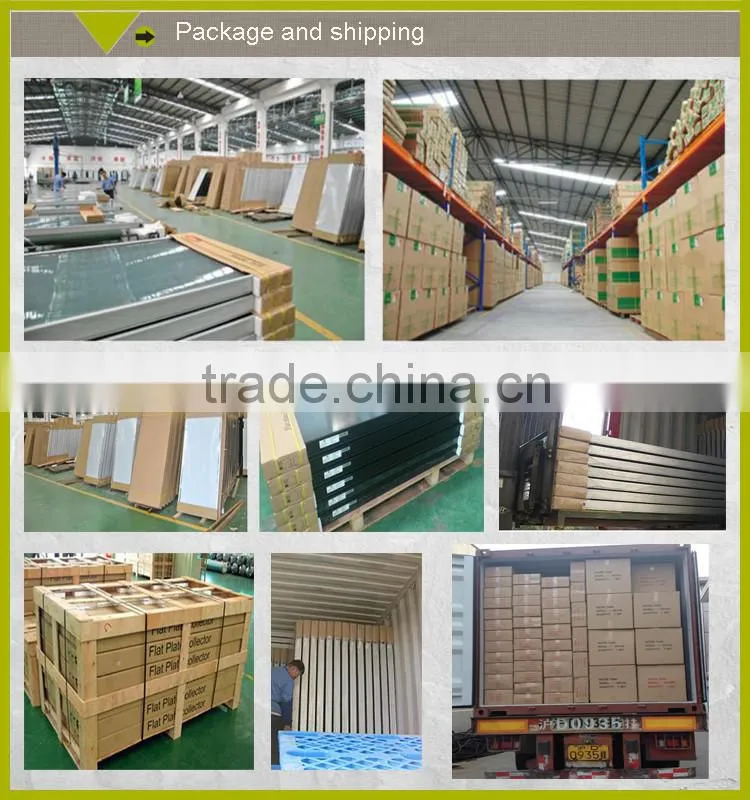

Package and shipping of this flat plate solar collector
Shipping
Payment Terms
Changzhou SKI Solar Energy Co.,Ltd.located in Changzhou,jiangsu province,which is only 180KMs far away from the biggest city-Shanghai.Our company is an OEM/ODM manufacturer in the R&D,production and marketing of solar products. We are one of the largest solar manufacturers and exporters of solar water heaters in China.
It is with rich technical force,well equipments and a number of high-precision mechanized production lines.It has a production capacity of 10000 sets solar water heaters annually,ranking the size of the domestry industry forefront.The products have been exported to over one hundred countries such as USA,Europe and so on.Our products won great acclain from our clients.
