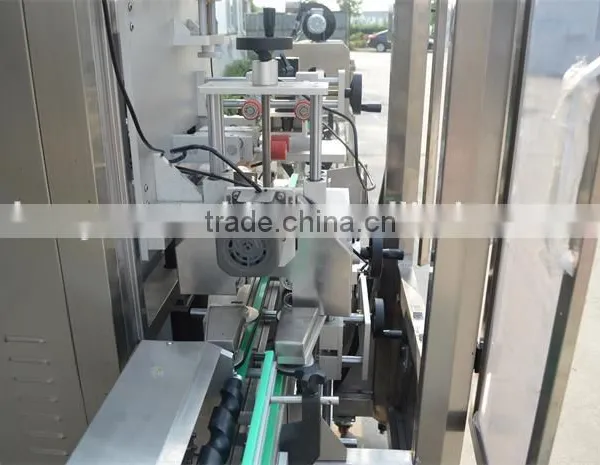

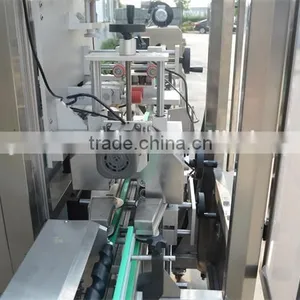

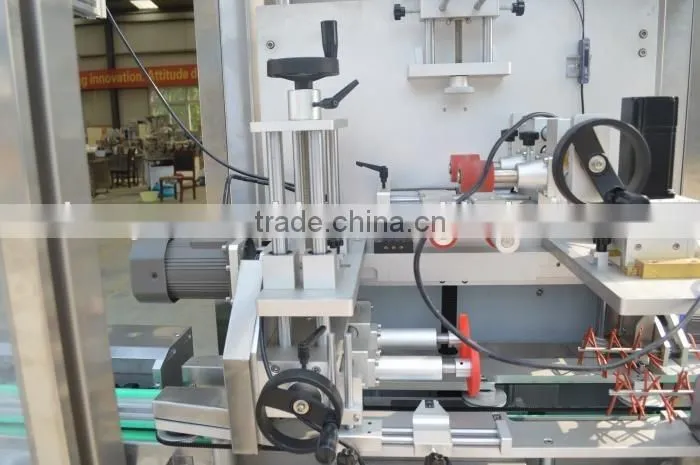

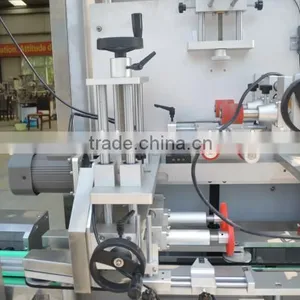

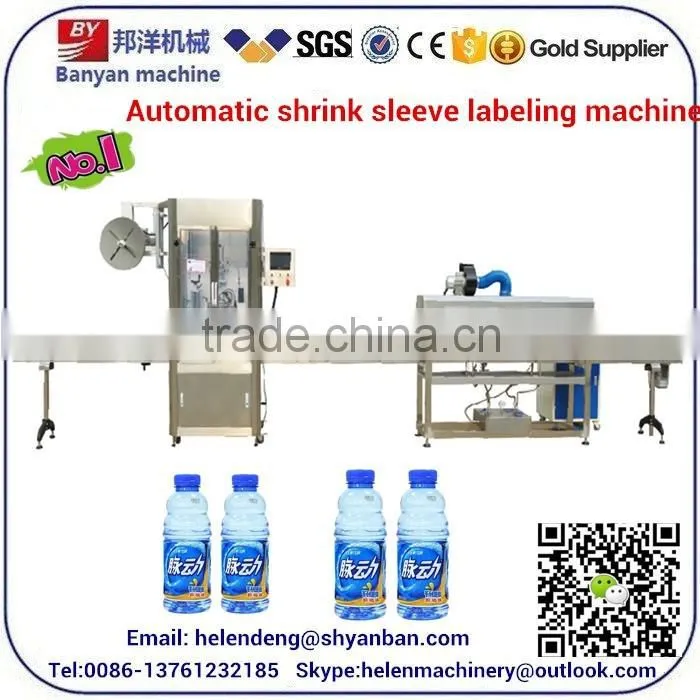

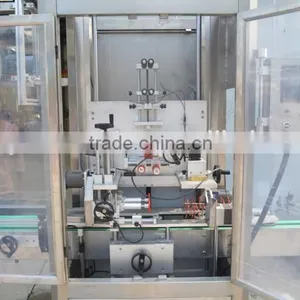

YB- TB200 Automatic shrink sleeve labeling made in China.
Performance feature:
1. The whole line can be adjusted production automatically or manually:
Automatic speed control: under automatic state, our machine can adjust speed according to the former production speed automatically, with bottles of magic eye, fully automatic tracking system, fully achieve unmanned automation function.
Manual control: can control convey speed according to the requirements of the production, the operation fully human.
2. Whole machine malfunction automatically detect, equipped with man-machine interface in Chinese/English display and trichromatic lamp alarm prompt, could find out equipment failure reasons timely.
3. Single positioning guide pillar type center: more stable to guide the label.

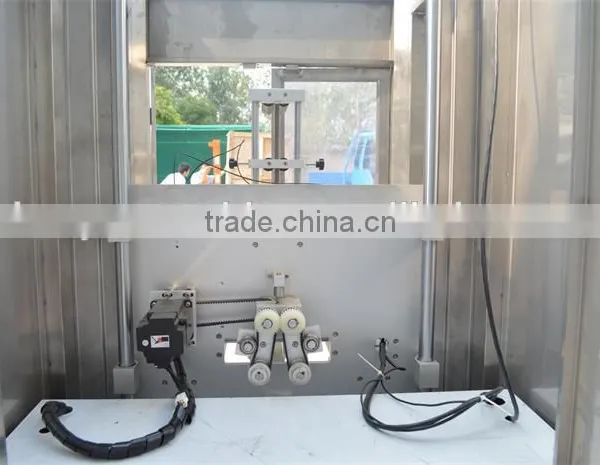

4. Adjustable cutter head: original cyclotron cut-off, double blade, long life;
5. Cutting surface is smooth and no tail, make the shrink more perfect.
6. Applicable bottle type: round square, flat, cup type and irregular curve type bottles.
7. Main electrical elements adopts foreign well-known brand.
Technical parameters:
Model |
YB-TB200 Automatic shrink sleeve labeling machine |
Capacity |
100-200 bottles/min |
Label length |
40-300mm |
Label thickness |
0.03-0.13mm |

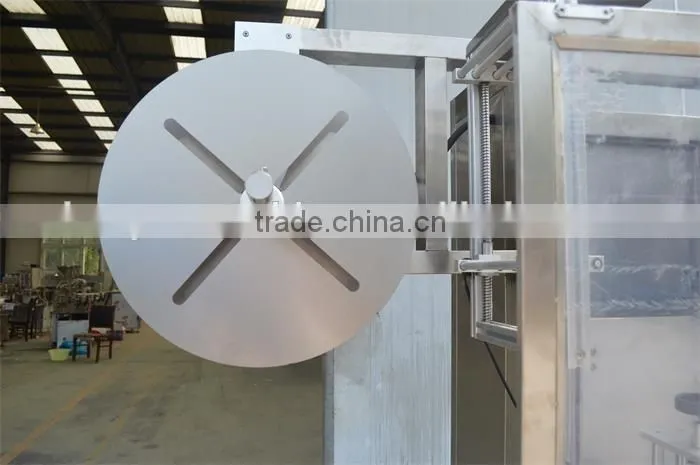

Paper corn inner diameter |
76mm |
Power supply |
1Ph. 220V, 50/60Hz |
Power |
1.8 KW |
Net weight |
350kg |
Overall dimension |
L2100 × W850 × H2100mm |
Cutter disk specification:
Cutter disk inner bore diameter (mm) |
Applicable bottle diameter (mm) |
138 |
120-134 |
124 |
106-120 |
110 |
86-106 |
90 |
56-86 |
60 |
25-56 |

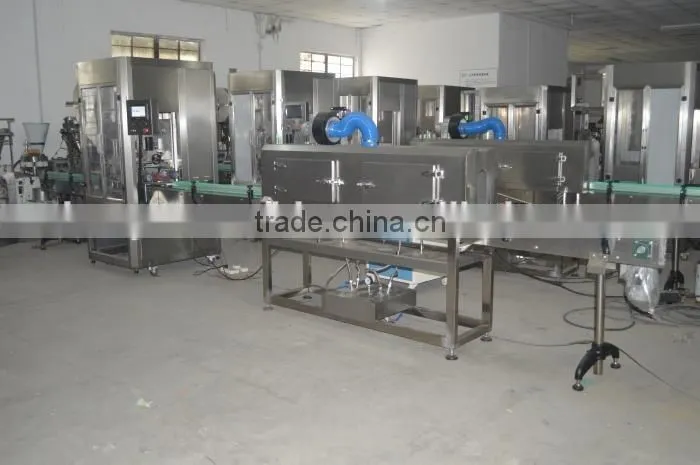

YB-1800 Steam Shrinkage Furnace
Product features:
1. New steam shrinkage furnace, no matter what kind of bottle shape, when use this machine, all can achieve the best shrink effect.
2. Shrinkage smooth, the steam jet method adopts pipeline pinhole type vapor emission, vent are divided into three adjustable sections, for each section, up and down, front and back, and air output can be adjusted, achieve the most perfect shrink effect.
3. The machine cover is made of stainless steel and heat preservation, not only save energy, but also shrinkage effect more perfect.
4. The stainless steel water dish at bottom of machine could collect water, connection pipe discharge, does not affect the environment.
5. The whole machine adopts the waterproof design, convenient operation and maintenance.
Technical parameters:
Model |
YB-1800 |
Input Power of Blower |
AC220V, 0.75KW |
Power supply |
3phase, 380V,50/60Hz |
Working pressure |
≤0.2Mpa |
Steam consumption |
18Kg/h |
Convey speed |
0-35m/min |
Net weight |
180kg |
Overall dimension |
L1800xW600xH1500 |

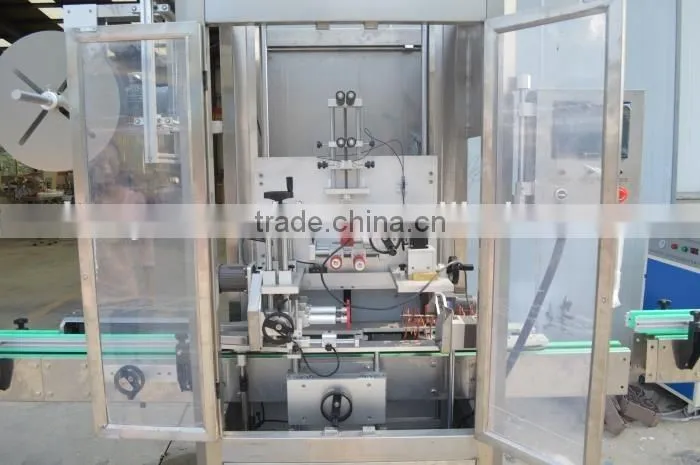

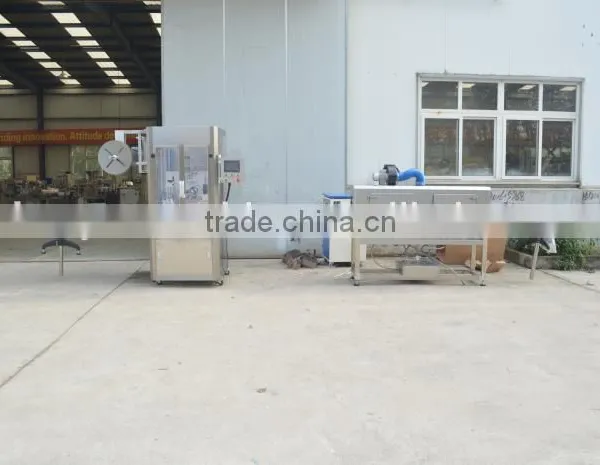

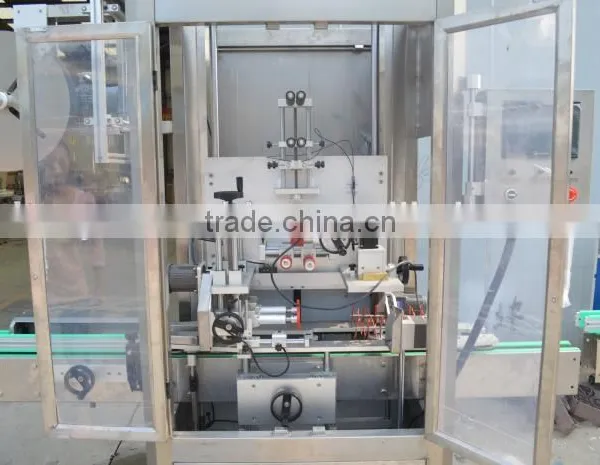

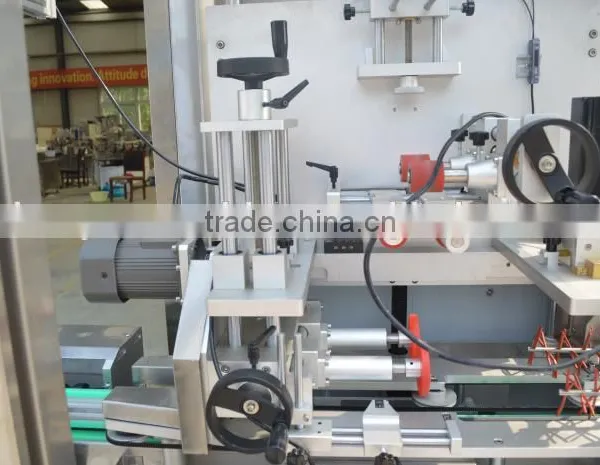

Machine picture:

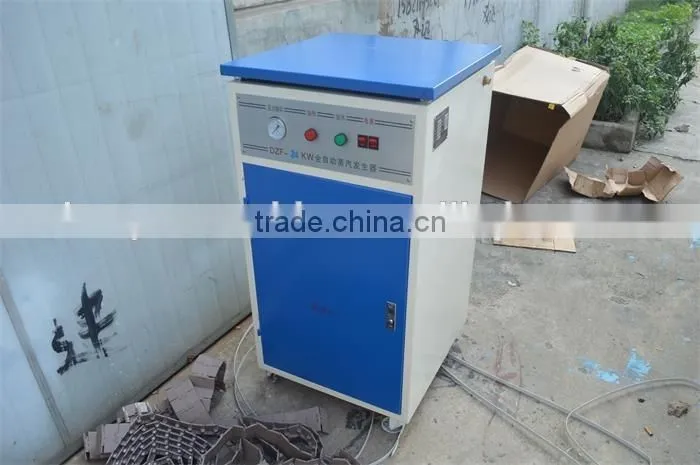

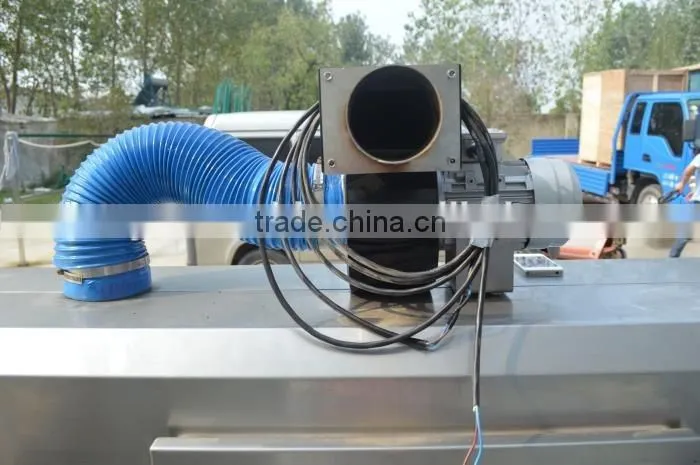

Steam generator:(optional)
other machine we can do! contact-- Linda

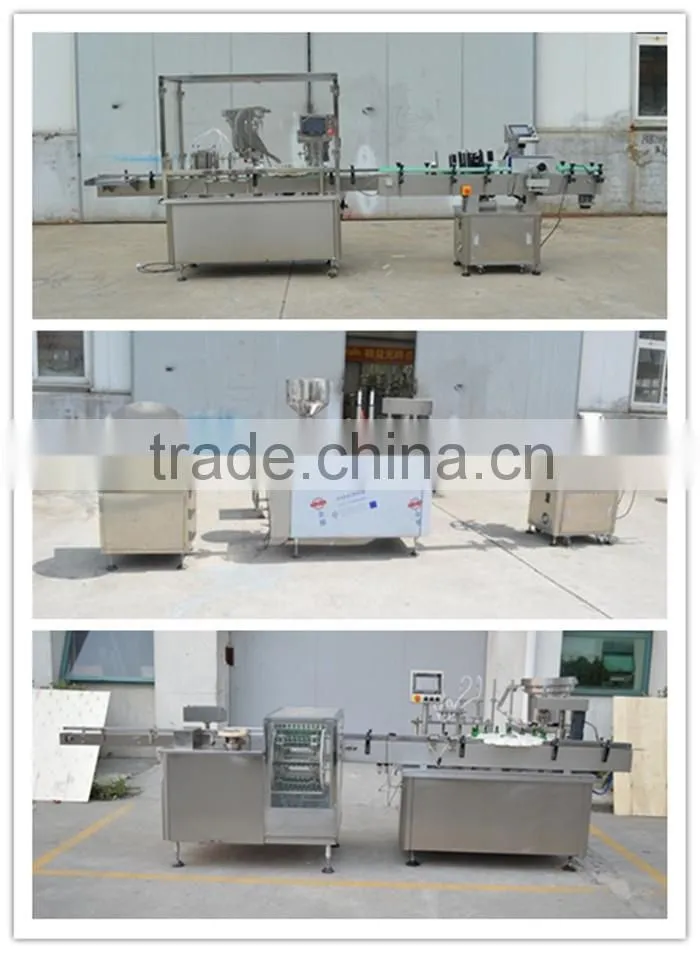

*filling and capping machine
*Our factory
*Service for you~
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical knowhow for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.

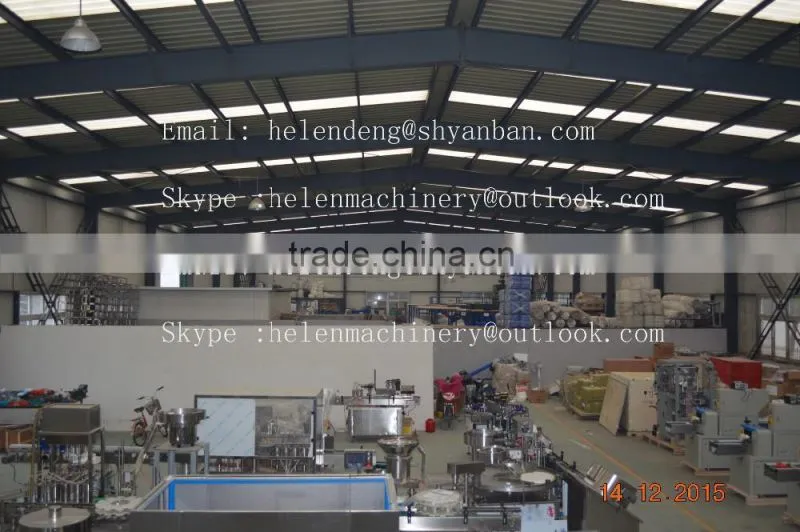

Wlcome to our factory
We are the best choice for you!
A)Why should you choose our packing and filling machine ?
We have been specialized in filling and packing machine for more then ten years,and until now have exported mahcines to more than 30 countries
B)Can you provide after-sale service ?
Yes ,sure.We have enginners available to service overseas .
C)Can i visit your factory and send team for learning and inspect ?
Yes,sure.We will do our best to teaching you how to use the machine.
D)What is our advantages?
1.Competitive price
2. Excellent technical support
3.Best service for you
We are not only selling our machines for you ,we also do the best service for customers.
Contact----Linda Shanghai BanYan Machinery Co.,Lt
We specialize in automatic filling and packaging machinery.Welcome to your enquiry!
We specialize in automatic filling and packaging machinery.Welcome to visit our factory!
