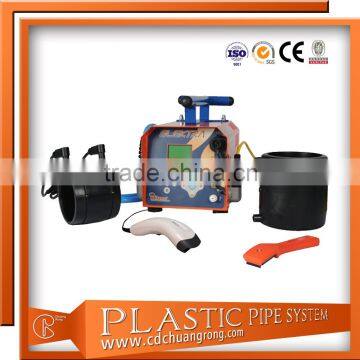

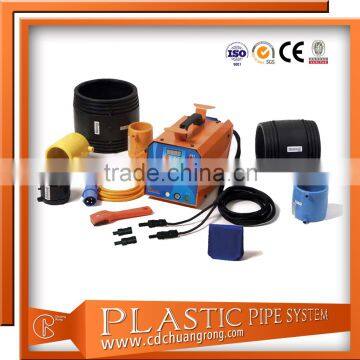

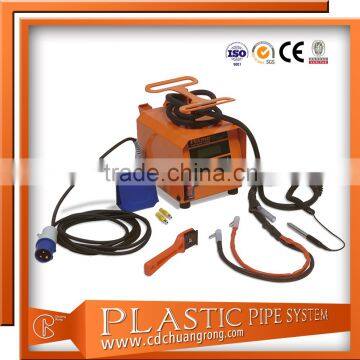

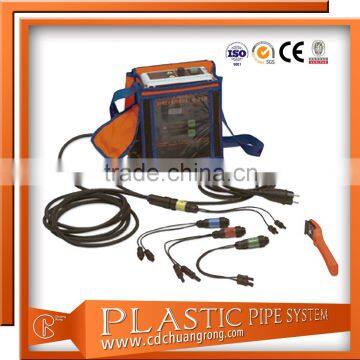

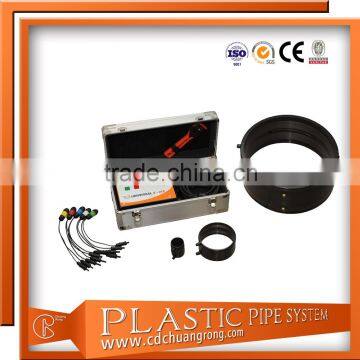

Pipe Welding Machines/Electrofusion Welder for Sale
POLYWELD MAN
Universal built-in site electrofusion machine for low voltage HDPE and PP couplers(8÷48V) for high pressure
conduits. The machine is easy to use due to its software that can be managed by a display and four buttons.
The welding data(tension and time) are manually set. A printer can be connected to the serial gate to obtain
a report at the end of the welding.
· Universal manual electrofusion machine
· Easy to use software to input parameters
· Connect to a serial printer to print out welding report
Technical Features
-Working range:20÷315mm(HDPE)
20÷125mm(PP-R)
-Power Supply:230V Single phase 50/60Hz
-Output maximum current:75A(peak 100A)
Working Range | 32-315mm |
Welding Material | PE,PP,PP-R |
Dimension | 325*195*270mm |
Machine Weight | 17kg |
Power Supply | 230VAC 50-60Hz |
Max total power absorbed | 3500W |
Working Temperature | -10℃/+50℃ |
Welding Voltage | 8/48V |
Peak Electric Power | 100A |
Protection Degree | IP54 |
Connectors Diameter | F-4mm |
Adapters Diameter | F-4.7mm |

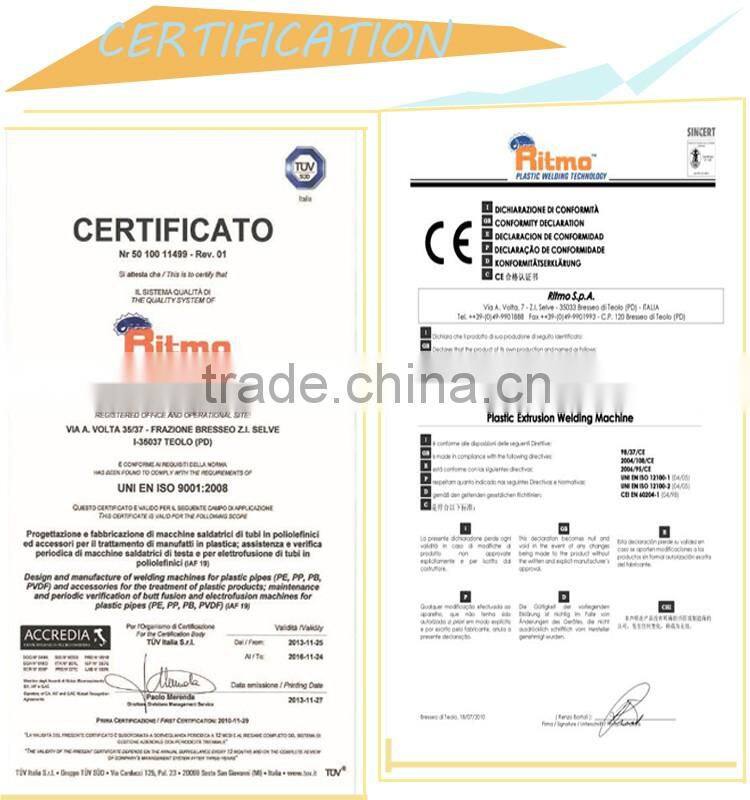

We can supply ISO9001-2008, BV ,SGS, CE etc certification.
CHUANGRONG is a leading professional supplier of plastic pipe system products since 2005.We have exported our products more than 50 countries and area.
Our products:1.Plastic pipe 2.HDPE fittings 3.PPR fittings 4.PP compression fittings 5.pipe welding machine and tools 6.pipe repair clamp. Our aim is to provide customer with the best solutions of plastic pipe connection.
Thank you for your looking through.
