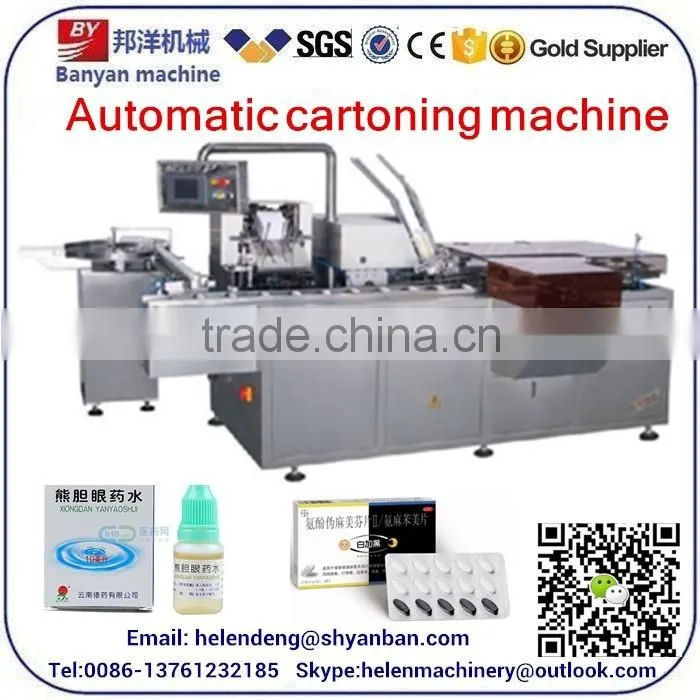

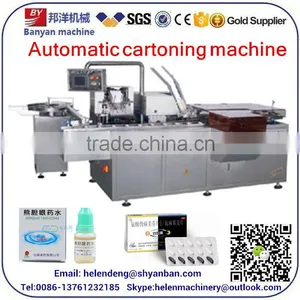

YB-120WZ Automatic cartoning machine
Machine name: YB-120WZ Automatic Cartoning Machine
Performance feature:
1. Automatic horizontal cartoning machine is a high-tech product, which is a integration of light, electricity, gas and machine.
2. It's suitable for blister forming capsule and tablet, aluminum-plastic packed blister board and similar items into cartons automatically.
3. Working process: medicine plate or other items transmission ( adjustable if more than one plate)
-- drugs manual transmission (to automatically finish 1-4 folding) -- carton automatic distraction and delivery--plate joint folded manual into carton -- automatic batch number printing, paper tongues sealing on both ends, etc.
4. Machine use high quality stainless steel casing shape, working faces are closed by organic glass door and windows. It's innovatively designed, strictly in accordance with requirements of pharmaceutical industry "GMP" standard.
5. Product height is not standard, auto rejecting when no instruction book.
6. Auto stopping machine when product does not enter carton completely.
7. Auto stopping machine when no carton, no continuous instruction book or no product.
8. Convenient to change products with different specification.
9. Main drive is equipped with overload protection device.
10. PLC automatic display failure, box packing speed and finished counting
Technical parameters:
Model |
YB-120WZ |
|
Capacity |
30-100 boxes/min |
|
Power supply |
1ph. 220V, 50/60Hz |
|
Main motor power |
0.75 KW |
|
Gas consumption |
120-160L/min (Pressure 0.6Mpa) |
|
Packing material |
Carton specification 250-350g/m2 (Depends on carton size) |
|
Specification |
L(701-180)mm x W(35-85)mm x H(14-50)mm |
|
Instruction book |
Paper specification |
60-70g/m2 |
Unfolding size |
L(80-250)mm x W(90-170)mm |
|
Folding range |
Customized |
|
The number of folding |
1-4 |
|
Net weight |
About 1400kg |
|
Overall Dimension |
L3100 x W1100 x H1550mm |
|
YB-120WZ Automatic Cartoning Machine
other machine we can do! contact-- Linda

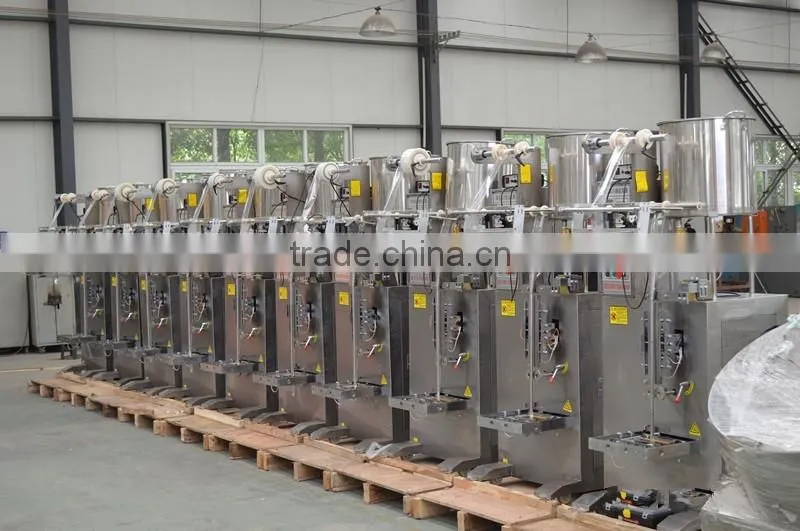

*vertical packing machine
*filling and capping machine
*Service for you~
1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical knowhow for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
2.Clients Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.
3.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
YB-120WZ Automatic cartoning machine
We are the best choice for you!
A)Why should you choose our packing and filling machine ?
We have been specialized in filling and packing machine for more then ten years,and until now have exported mahcines to more than 30 countries
B)Can you provide after-sale service ?
Yes ,sure.We have enginners available to service overseas .
C)Can i visit your factory and send team for learning and inspect ?
Yes,sure.We will do our best to teaching you how to use the machine.
D)What is our advantages?
1.Competitive price
2. Excellent technical support
3.Best service for you
We are not only selling our machines for you ,we also do the best service for customers.
YB-120WZ Automatic cartoning machine
Contact----Linda Shanghai BanYan Machinery Co.,Ltd
We specialize in automatic filling and packaging machinery.Welcome to your enquiry!
We specialize in automatic filling and packaging machinery.Welcome to visit our factory!
