Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Collector > Tankless Solar Water Heater

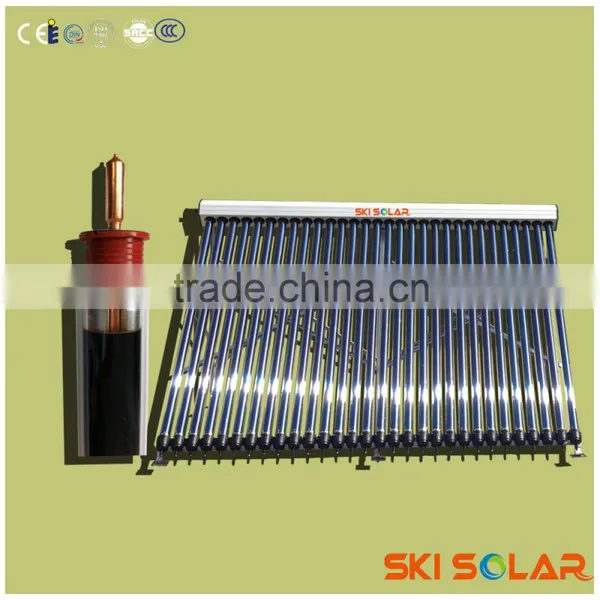

Tankless Solar Water Heater

Name: Tankless Solar Water Heater
Brand: SKI SOLAR
SKU: 106011279
Availability: InStock

US$ 144 - 357 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

SKI SOLAR

Model Number:

SKI-CA

Contact Supplier Request Quote Chat Now

Changzhou SKI Solar Energy Co., Ltd.

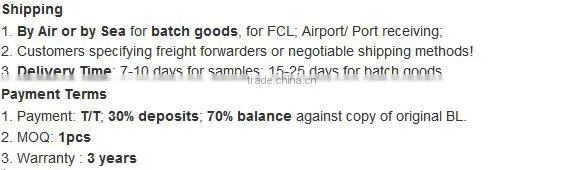

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai shenzhen qingdao ningbo guangzhou tianjin xiamen dalian lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name SKI SOLAR

Model Number SKI-CA

Type Pressurized

Application Solar Thermal

Pipe Material Glass

tankless solar water heater

Product Description

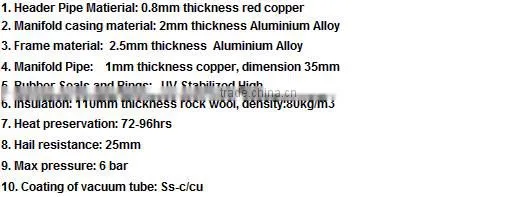

What is the details of our solar collector?

What is the specification of our solar collector?

Model	tubes	Absorbing Area(m2)	Heating capacity(L)	20'GP	40'GP	40'HQ
CA 58/800-12	12	1.98	120	57	111	155
CA 58/800-15	15	2.48	150	47	93	117
CA 58/800-16	16	2.65	160	44	87	109
CA 58/800-18	18	2.97	180	39	79	96
CA 58/800-20	20	3.3	200	36	73	88
CA 58/800-24	24	3.96	240	31	62	75
CA 58/800-30	30	4.96	300	25	51	62

What is the technical data of our solar collector?

Technical Data of heat pipe solar collector
Description	Heat pipe solar collectors
Numbers of tube(pcs)	15
Absorber area approx.(m2)	1.406
Hydraulic Connections	G3/4" male thread
Fluid volume(L)	0.75
Maximum operation pressure(Bar)	6
Test pressure(Bar)	9
Heat transfer fluid	Anti-freeze Fluid (Water-Glycol)
ing temp.	250C
hot water(L/Day)	150
	35C (Radiation>=800w/m2.day)
Collector efficiency	76.40%
Medium	Pure water
Start-up Temperature of heat pipe	<=30C
warranty	5 years

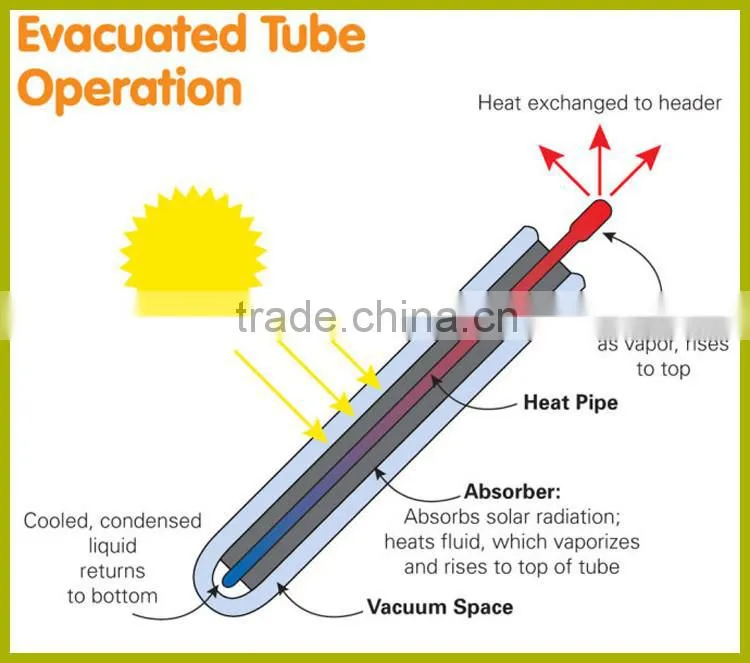

Whats the principle of our solar collector

1. The heat pipe series solar collector are always connected with existing heating supply device.

2. The selective coating on the inner Cover of the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminium fins.

3. The liquid in the heat pipe changes into vapour which rises to the condenser.

4. The heat then passes through the heat exchanger and the vapour becomes liquid, returning to the base of the heat pipe.

5. The heat conducts to the heat transfer liquid (anti-freezing liquid or water) via a copper pipe.

6. This transference of heat into the liquid creates a continuous circulation as long as the collector is heated by the sun.

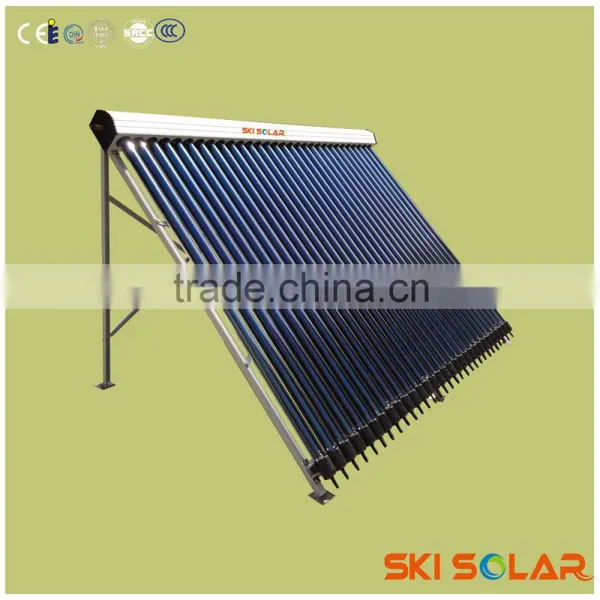

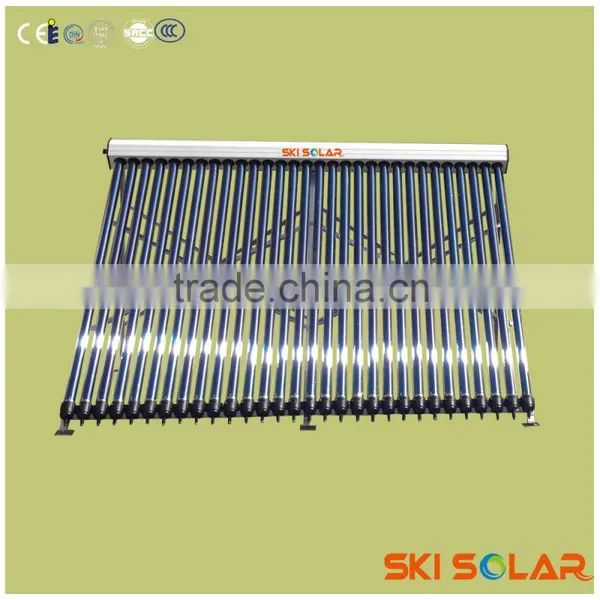

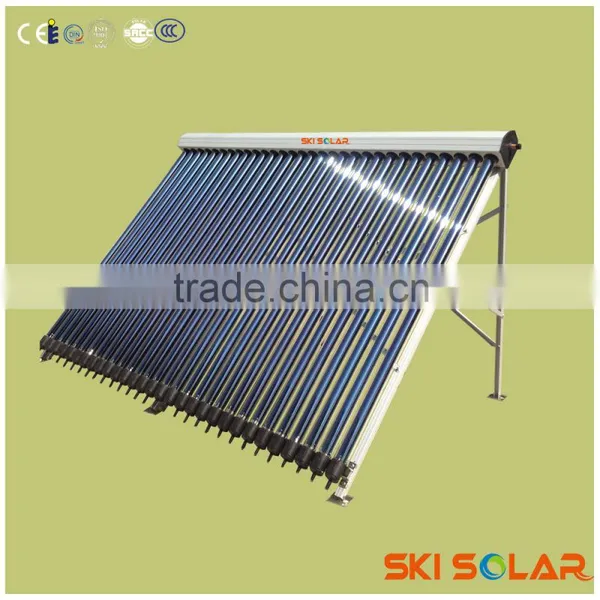

Product Photos

Product Features

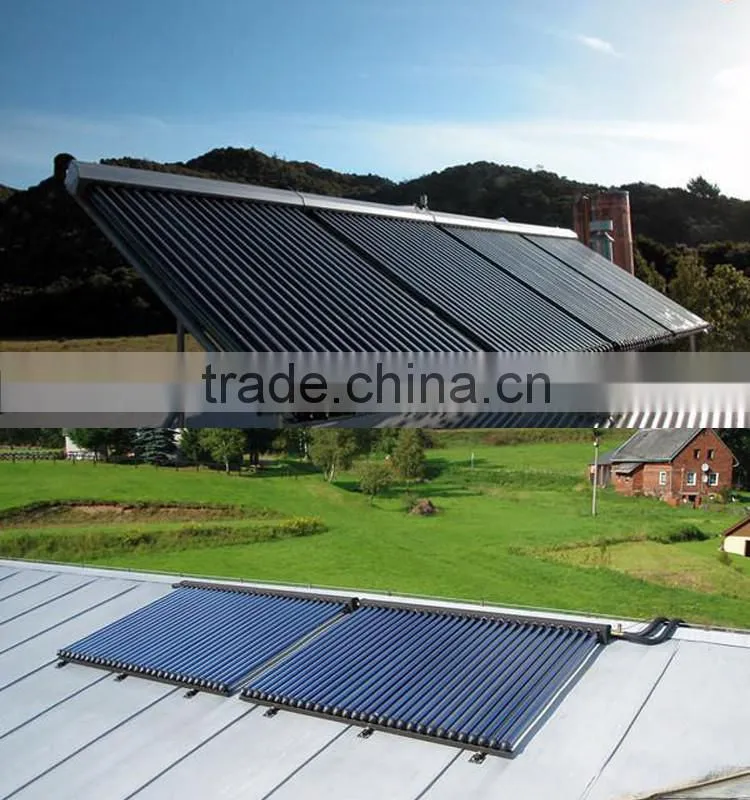

Whats the application of our solar collector

1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
