2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933

2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933 photo-1
2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933 photo-2

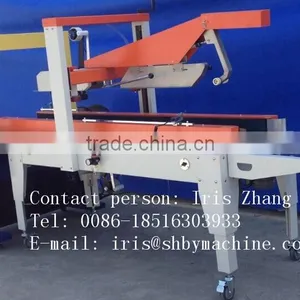

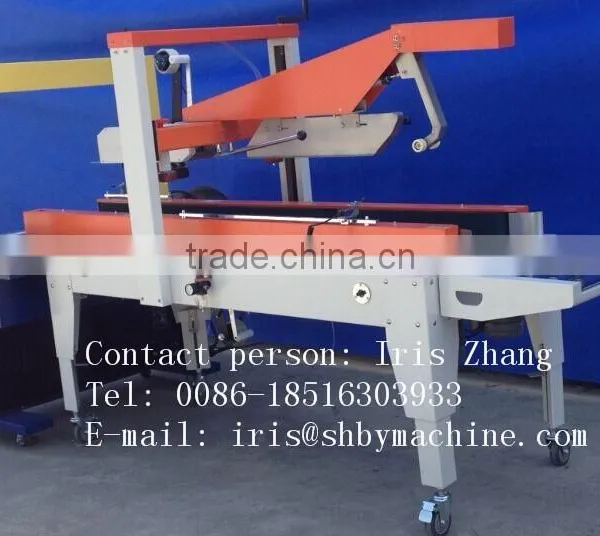

2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933 photo-3

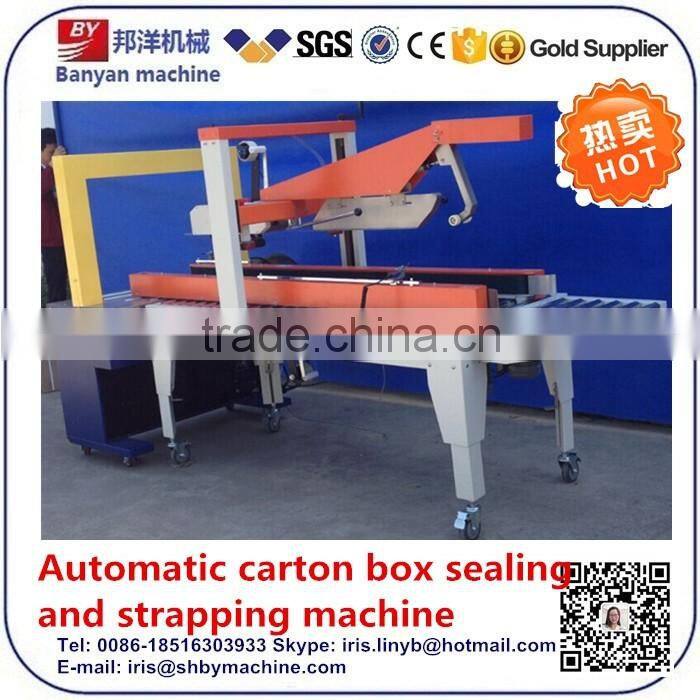

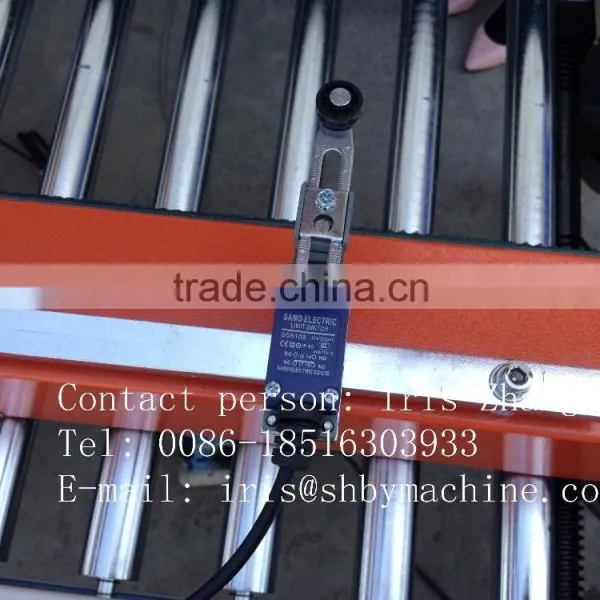

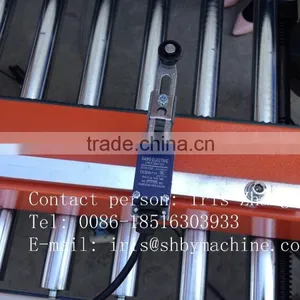

2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933 photo-4

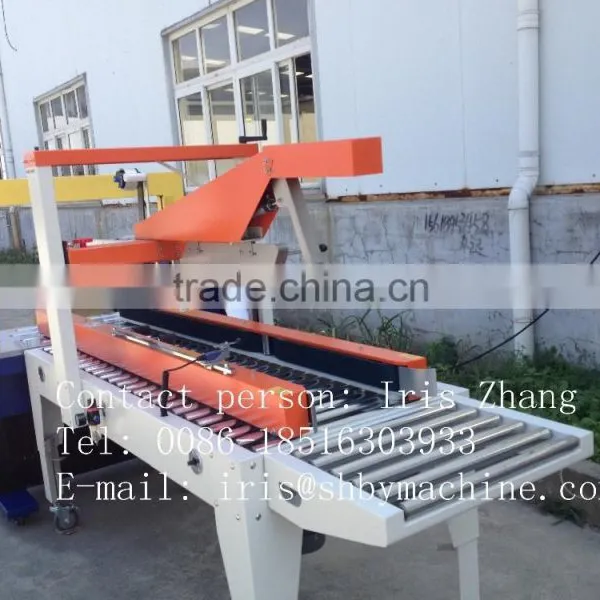

2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933 photo-5
2016 High Speed Price Carton Box Sealer, Carton Box Strapper, Carton Box Slitting With ce 0086-18516303933 photo-6
US$ 4,500 - 5,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, carton box sealer, carton box strapper, carton box slitting
Packaging Type:
Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch, Other, Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch, carton box sealer, carton box strapper, carton box slitting
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Other, Medical, Textiles, Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, carton box sealer, carton box strapper, carton box slitting
Packaging Type Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch, Other, Bags, Barrel, Belt, Bottles, Cans, Capsule, Cartons, Case, Film, Foil, Pouch, Stand-up Pouch, carton box sealer, carton box strapper, carton box slitting
Packaging Material Glass, Metal, Paper, Plastic, Wood, Other, Glass, Metal, Paper, Plastic, Wood, carton box sealer, carton box strapper, carton box slitting
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 1ph 220V, 50/60Hz
Power 1KW
Place of Origin Shanghai, China
Brand Name YB
Model Number YB-5050KZ
Weight 400kg
Dimension(L*W*H) 2900*1450*1700
Certification CE SGS
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Automatic fold carton sealing strapping machine suit packing same size cartons, sealing the cartons with stick tape. Artificial positioning when the size of the cartons are changed, the upper cover and back cover folded automatically, flattening don’t fold angle fold into fast. Cover of both side are smooth and beautiful, motors of both side catch the PVC tape automatically and pat, send into and seal cartons. It can finish up and down sealing in one step. This machine adopt pneumatic device achieve back cover fold automatic. It is reliable working, convenient operation and easily maintenance. This machine can be used single and used with automatic strapping machine and conveyor as a automatic sealing & strapping packing line. Stick tape sealing neatly, firm, regular, artistic, without tearing the cartons. This machine is widely used in food, beverage, cosmetics, household appliances, book, textiles…other industries.

Model
YB-5050KZ
Max packing size
L500*H500*W600mm
Min packing size
W130*H130*L180mm
Capacity
18m/min
Height of work table
630-820mm
Strap width
6-19mm
Strap dispenser
coil core ID. 200, 230, 280, 406mm adjustable
Strap speed
26 times/min
Width of tape
48, 60, 76mm
Voltage
1ph 220V, 50/60Hz
Noise
no more than 75DB
Air compressor
2/3L, 5Kgf/cm²
Conveying type
two sides conveyor send
Machine weight
400kg
Machine dimension
L2900*W1450*H1700mm

Sampels box ----our machine can do!


carton box sealer, carton box strapper, carton box slitting
Certifications
Detailed Images

Close the box device



This parts adpots two machinical tooth,  It is used to close and fold the box.

Add sealing-tape

 the box is added sealing tape.  and then delivery to the strapping parts.

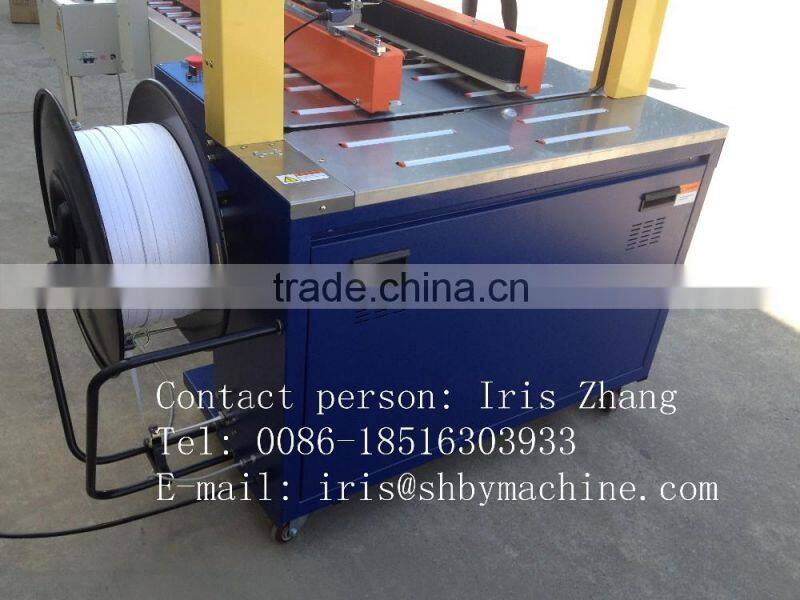

Strap feeder roll


The strap is feeder on the roll and used to pack the wooden box.

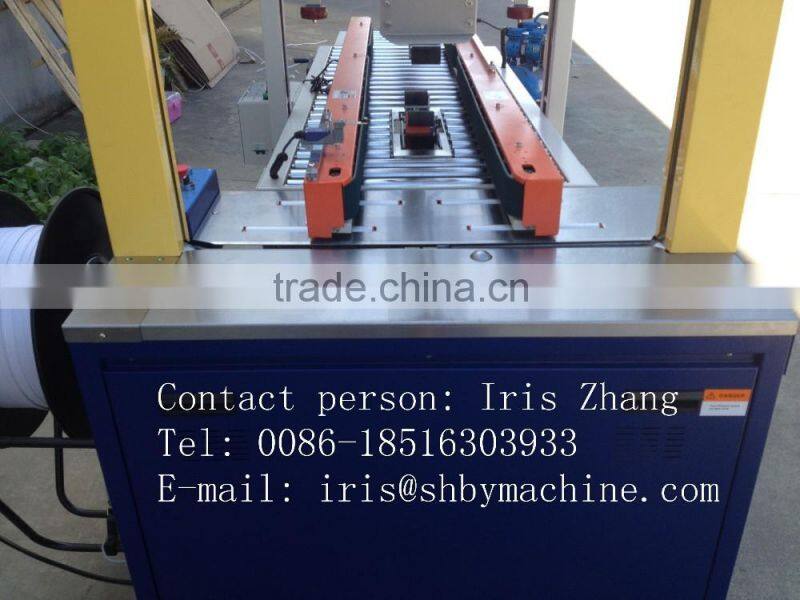

Adding Strap


The machine is added strap two times on this flat

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
3500mm (L) * 1600mm (W) * 1900(H)
Weight
400/550kg



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
