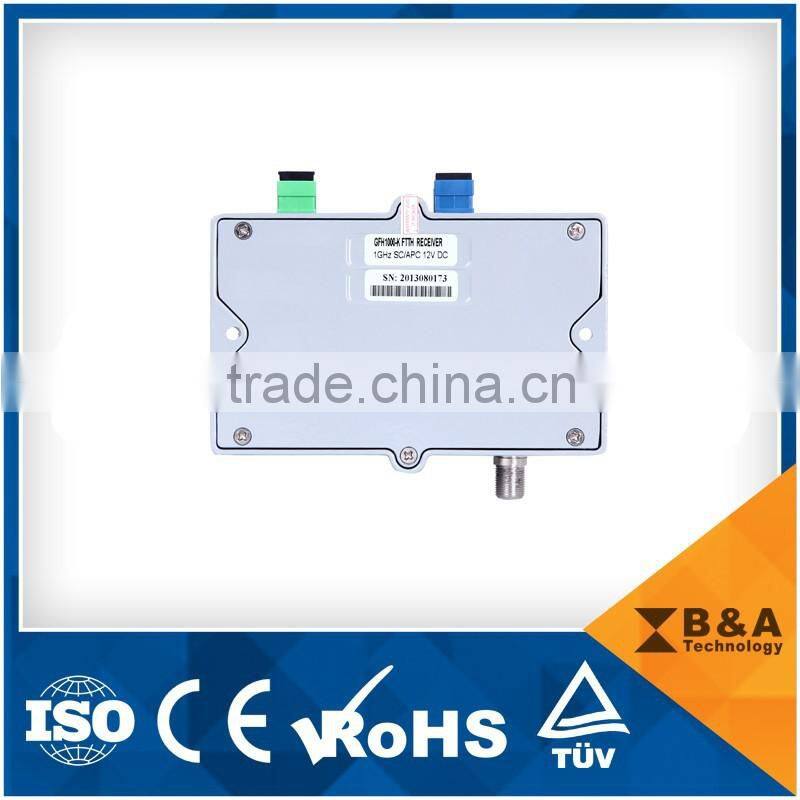

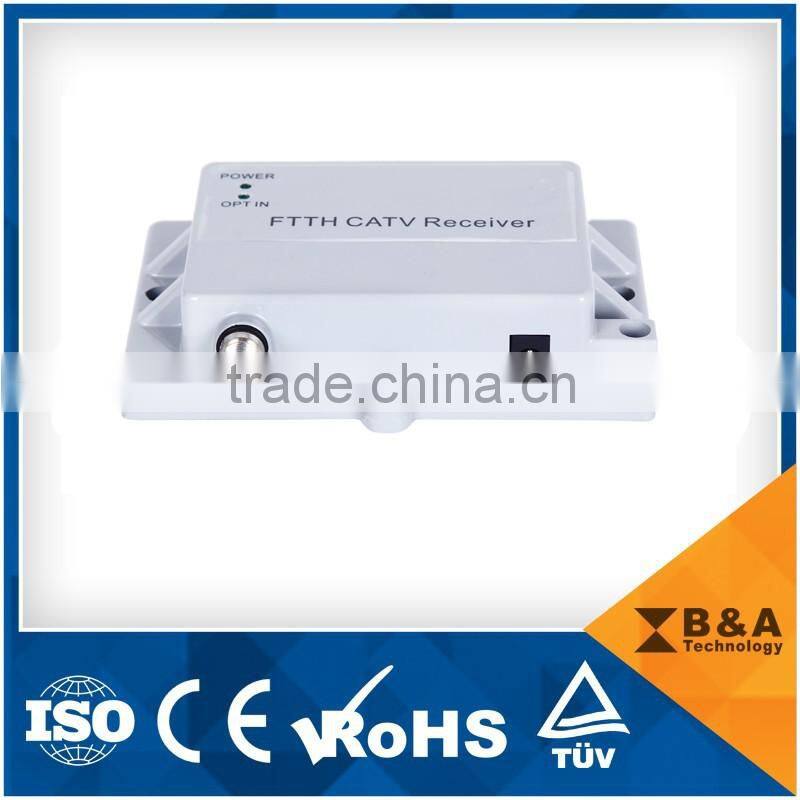

FTTH CATV Optical Receiver

FTTH CATV Optical Receiver thumbnail-1
FTTH CATV Optical Receiver thumbnail-2
FTTH CATV Optical Receiver thumbnail-3
FTTH CATV Optical Receiver thumbnail-4
FTTH CATV Optical Receiver thumbnail-5
FTTH CATV Optical Receiver thumbnail-6
FTTH CATV Optical Receiver photo-1

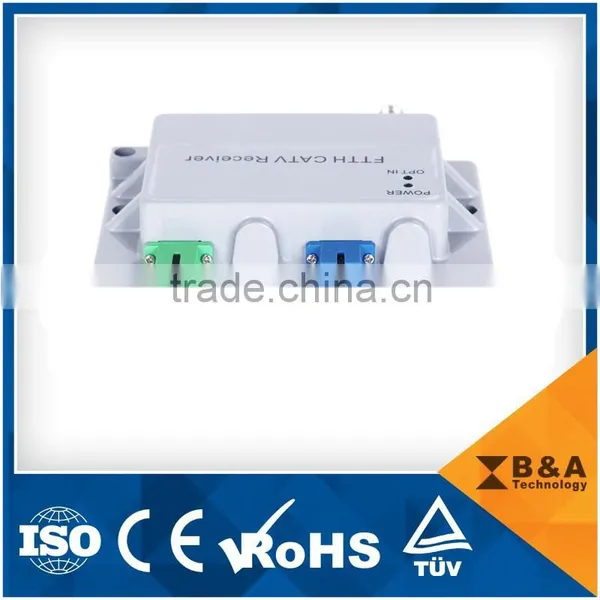

FTTH CATV Optical Receiver photo-2

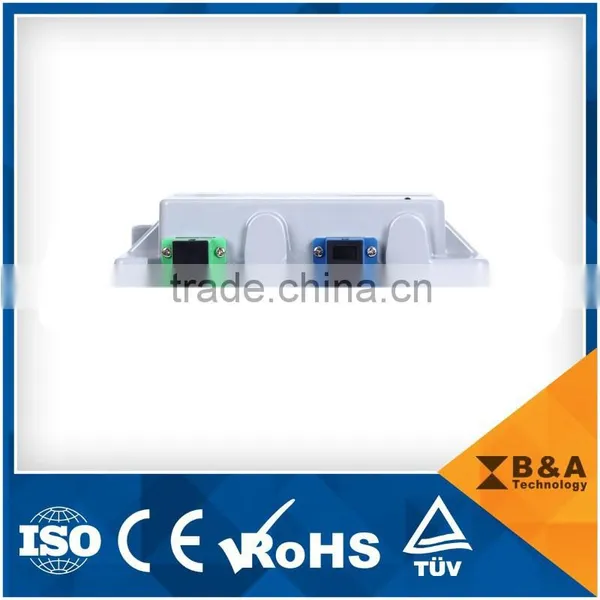

FTTH CATV Optical Receiver photo-3
FTTH CATV Optical Receiver photo-4
FTTH CATV Optical Receiver photo-5

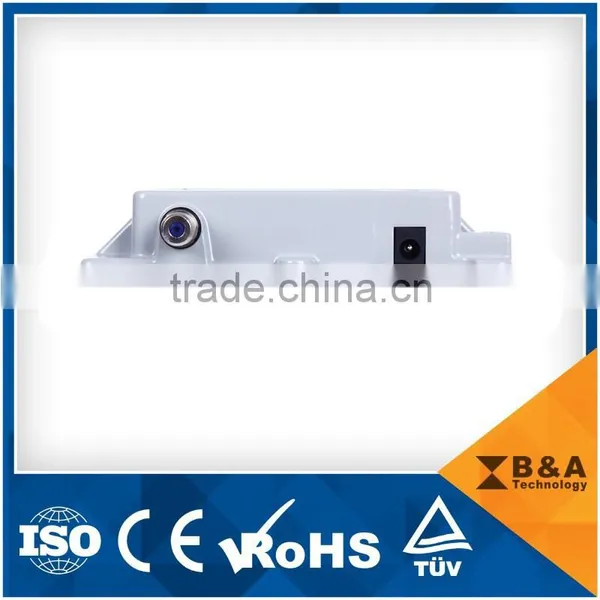

FTTH CATV Optical Receiver photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
B&A
Model Number:
OR9910
Contact Supplier Request Quote Chat Now
Shanghai B&A Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name B&A
Model Number OR9910



Product Description

 FTTH CATV Optical ReceiverFTTH CATV Optical Receiver

FTTH CATV Optical Receiver



Application

CATV

Optical Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Wavelength



1000

----

1600

nm

Optical power Analog TV RF



-8

---

+2

dBm

Optical power DVB-C QAM RF



-14

------

+2

dBm

RF Bandwidth



50

----

1000

MHz

Optical Return Loss



------

50

-----

dB

RF Output Impedance



-----

75



Ω

RF Output Level  Analog TV RF @-5dBm



20

-------

----

dBmV

RF output level DVB-C QAM RF @-9dBm



15

-------

----

dBmV

RF Flatness



------

±0.75

----

dB

RF Return Loss



14

----

----

dB

Analog TV RF CNR Digital TV QAM MER                    Analog TV RF  @-5dBm



45

----

----

dBc

Analog TV RF CNR Digital TV QAM MER                         DVB-C QAM RF  @-9dBm



34

----

----

dBc

CSO                              @77ch NTSC  Analog TV RF



----

----

-60

dBc

CTB                                @77ch NTSC  Analog TV RF



----

----

-60

dBc



Electric ElectricCharacteristics

Parameter

Symbol

Min

Typ

Max

Unit

Power Supply

Vps

-----

12

-----

VDC

Consumption

P

-----

----

2

W





Environmental Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Operating temperature

Tw

-10

-----

70

℃

Storage temperature

Ts

-40

-----

80

℃

Humidity

------

10

------

85

%

(3):Non-condensing

Order Information



Category

Structure

Application

Interface

OR: Optical Receiver



99:OR

1:W/ WDM

1: SC/UPC

2: SC/APC

3: FC/UPC

4: FC/APC

5: LC/UPC

6: LC/APC





Certifications

 FTTH CATV Optical Receiver





Company Information



 FTTH CATV Optical Receiver







Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Shanghai B&A Technology Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2008
Factory Size
1,000-3,000 square meters
Total Employees
101 - 200 People
