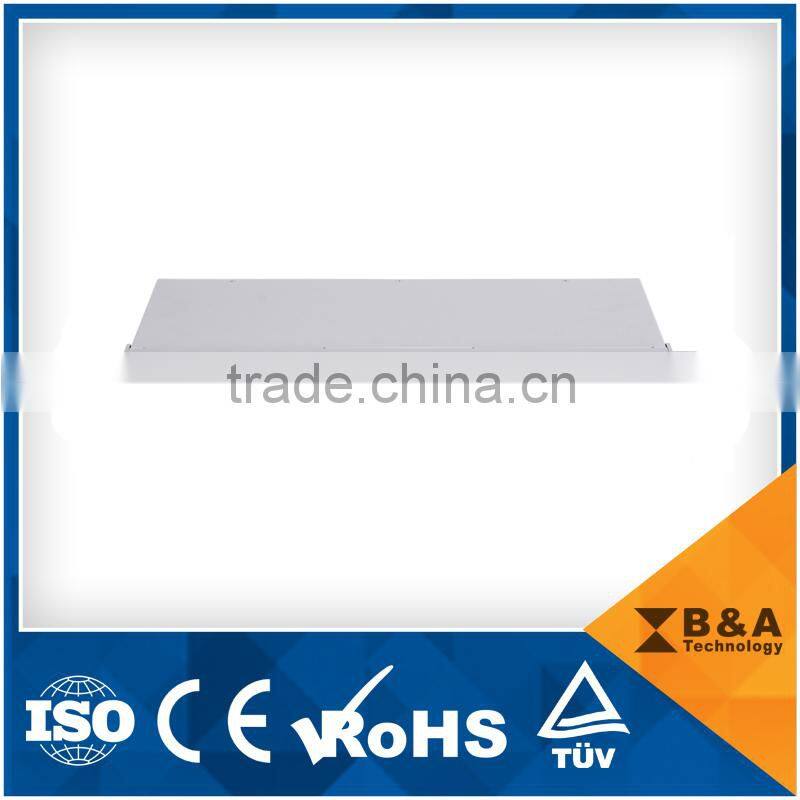

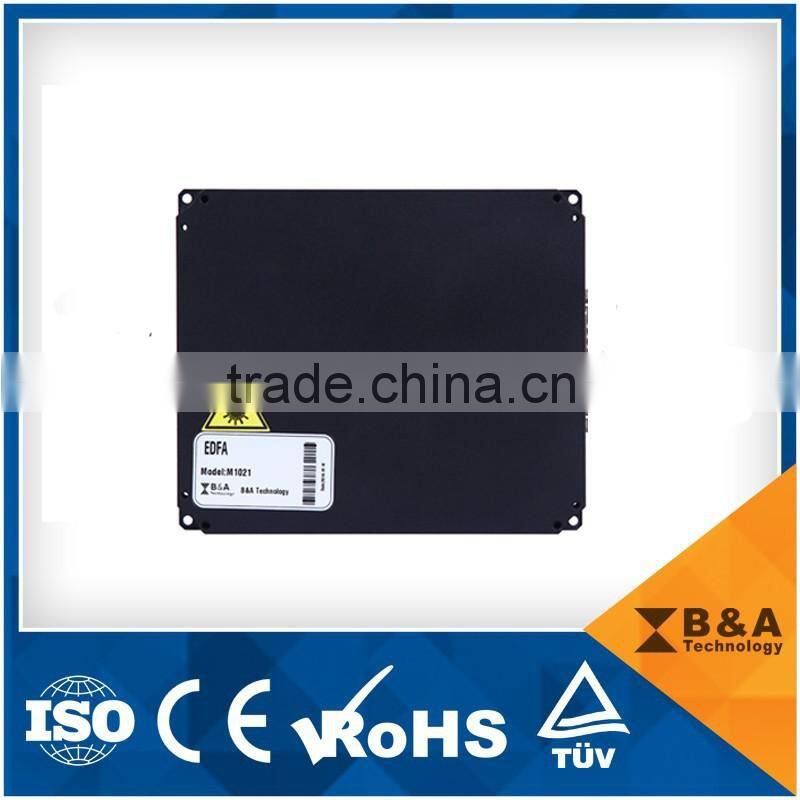

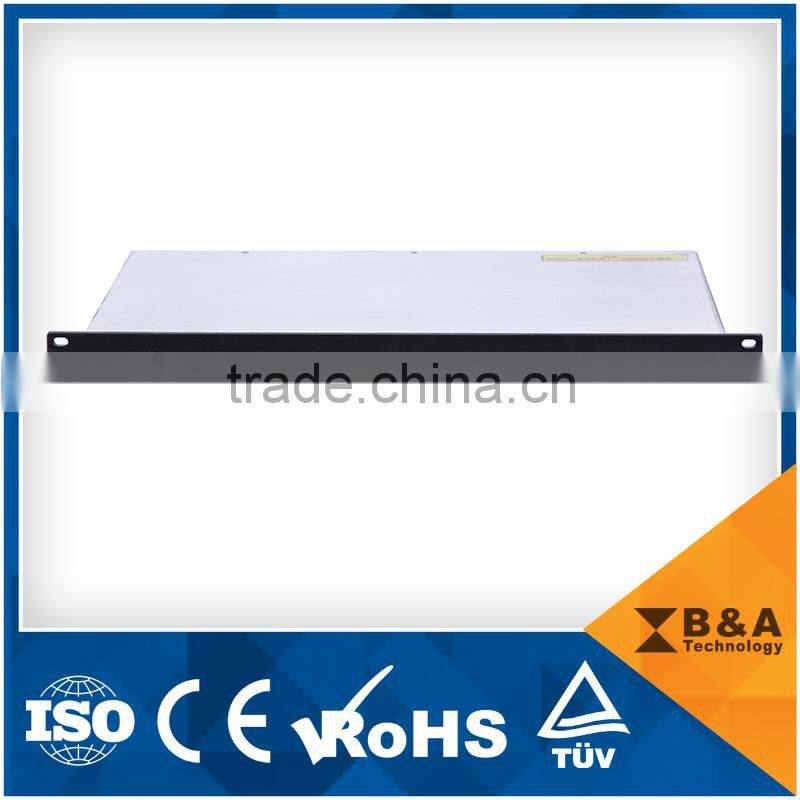

C-Band CATV Fiber Amplifier EDFA

C-Band CATV Fiber Amplifier EDFA thumbnail-1
C-Band CATV Fiber Amplifier EDFA thumbnail-2
C-Band CATV Fiber Amplifier EDFA thumbnail-3
C-Band CATV Fiber Amplifier EDFA photo-1
C-Band CATV Fiber Amplifier EDFA photo-2
C-Band CATV Fiber Amplifier EDFA photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
B&A
Model Number:
GA1A10
Contact Supplier Request Quote Chat Now
Shanghai B&A Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name B&A
Model Number GA1A10





Product Description

Features:

C-Band CATV Fiber Amplifier EDFAC-Band CATV Fiber Amplifier EDFA



C-Band CATV Fiber Amplifier EDFA

Features

Low noise figure:less than 4.5dB at 0dBm input

Extremely low CSO:<-70dBc

Double power supply high performance hotswap: Mix 220V and -48V

High stability and reliability: MTBF>100000 hours

Network management Agent hotswap

Perfect network interface: Ethernet,RS-485 and RS-232

Support Telnet and SNMP

High precision AGC/APC circuit: power control accuracy type ±0.05dB

Intelligent temperature control system: power consumption and hot radiation reduce 30% than common products

Variety mechanical and circuit structure(including pure optical module, module with electric, benchtop and 1U rack)

Application



1.Analog CATV long distance transmission



2.Video optical transmission system



3. Optical distribution system



4.FTTH



Optical Characteristics





Parameter

Symbol

Min

Typ

Max

Unit

Wavelength

λc

1530

1550

1562

nm

Output Power(1)

Po

13

------

24

dBm

Input power

Pi

-3

------

+10

dBm

Gain

G

------

20

------

dB

Noise Figure(2)

NF

------

4.5

-----

dB

Output power stability

ΔPo

-----

±0.05

±0.1

dB

Return Loss

RL

-------

-------

-45

dB

PDG

PDG

------

-------

0.3

dB

PMD

PMD

------

-------

0.5

ps





Electric Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Power supply

Vps

85/170

110/220

132/264

VAC

Consumption

P

-----

-----

18

W

Environmental Characteristics



Parameter

Symbol

Min

Typ

Max

Unit

Operating Temperature

Tw

-5

-----

60

℃

Storage Temperature

Ts

-40

-----

80

℃

Humidity

------

10

------

85

%



Packaging & Shipping

 Packing Details: Standard export package or customized package

Delivery Details: 7-10days





Size

    483*236*44(mm)

Related Products

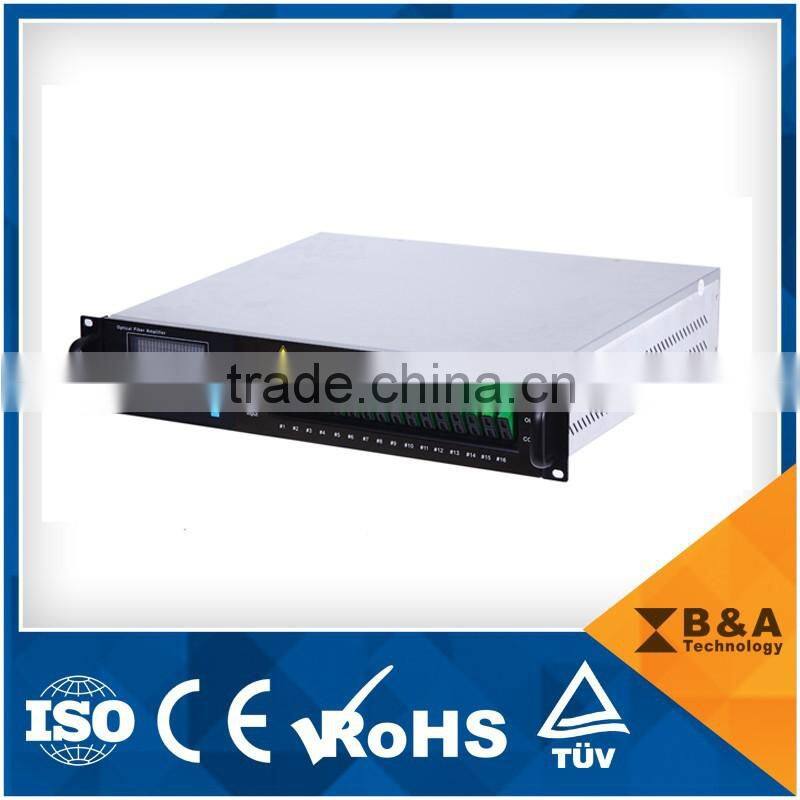

 C-Band CATV Fiber Amplifier EDFA
