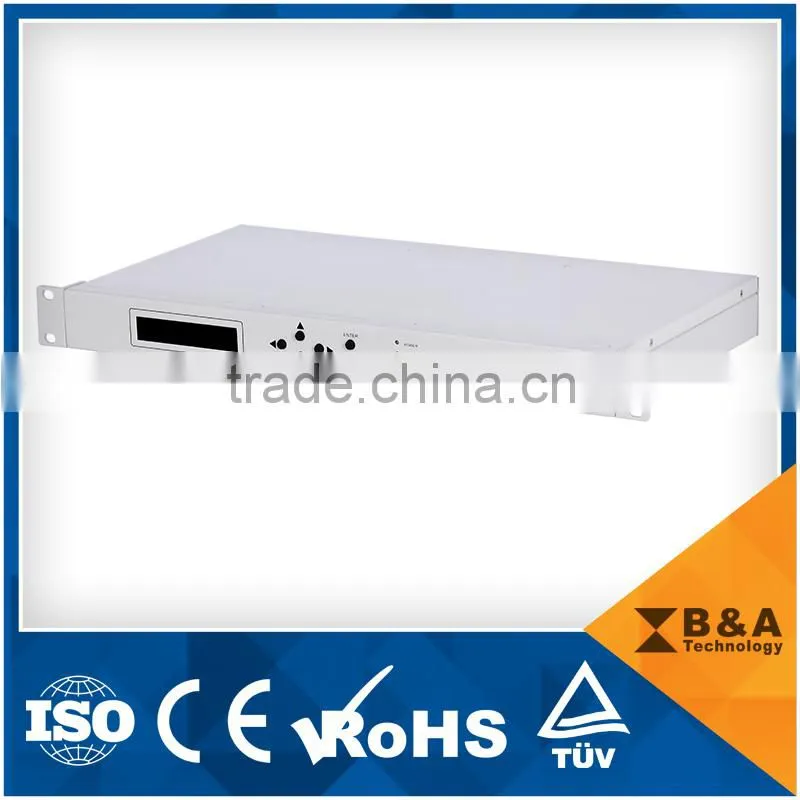

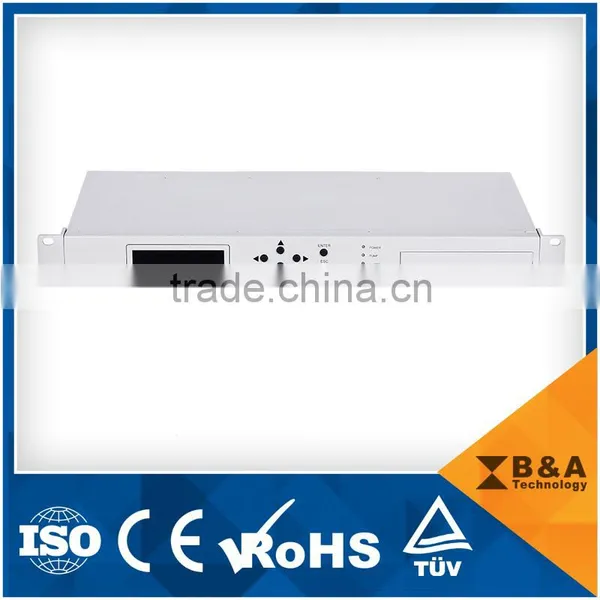

C-Band DWDM EDFA Fiber Line Amplifier

C-Band DWDM EDFA Fiber Line Amplifier thumbnail-1
C-Band DWDM EDFA Fiber Line Amplifier thumbnail-2
C-Band DWDM EDFA Fiber Line Amplifier thumbnail-3
C-Band DWDM EDFA Fiber Line Amplifier photo-1
C-Band DWDM EDFA Fiber Line Amplifier photo-2

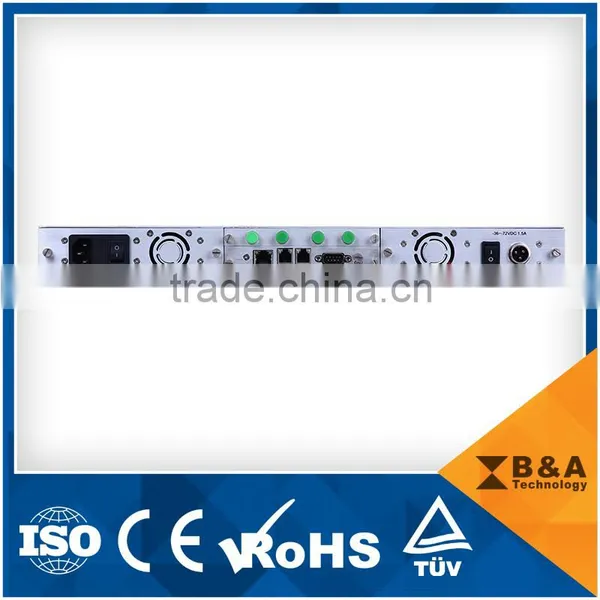

C-Band DWDM EDFA Fiber Line Amplifier photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
B&A
Model Number:
GA1A40
Contact Supplier Request Quote Chat Now
Shanghai B&A Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name B&A
Model Number GA1A40





Product Description

Features:

C-Band DWDM EDFA Fiber Line AmplifierC-Band DWDM EDFA Fiber Line Amplifier



C-Band DWDM EDFA Fiber Line  Amplifier

Features

Low Noise Figure: Typical 4.5

High Flatness: Typical 1dB

Cover Whole C-Band: Carrier 40 or 80 chs

Redundancy hot swap power module: 110/220VAC and 48VDC can plug Mix

Perfect Network Interface: Ethernet, RS-485 and RS-232 port

Support Telnet Interface and SNMP network management

Gain can be adjustable by network and manual

High precise AGC and ATC circuit

High saturation output power

Flexible Mechanics and circuit structure(Module,1U rack and Gain Block)

Compatible with Telecordia GR1312-CORE

Application



1.Pre-amplifier



2. Online amplifier



3.Booster amplifier



4.DWDM optical system



Optical Characteristics





Parameter

Symbol

Min

Typ

Max

Unit

Wavelength

λc

1529

1550

1564

nm

Saturation output power(1)

Po

------

------

20

dBm

Input Power

Pi

-35

------

+6

dBm

Gain

G

------

20

------

dB

Flatness

FL



1.0

1.5

dB

Noise Figure(2)

NF

------

4.5

-----

dB

Output power stability

ΔPo

-----

±0.05

±0.1

dB

Return Loss

RL

-------

-------

-45

dB

PDG

PDG

------

-------

0.3

dB

PMD

PMD

------

-------

0.5

ps





Electric Characteristics

Parameter

Symbol

Min

Typ

Max

Unit

Power supply

Vps

85/170

110/220

132/264

VAC

Consumption

P

-----

-----

18

W

Environmental Characteristics



Parameter

Symbol

Min

Typ

Max

Unit

Operating Temperature

Tw

-5

-----

60

℃

Storage Temperature

Ts

-40

-----

80

℃

Humidity

------

10

------

85

%



Packaging & Shipping

 Packing Details: Standard export package or customized package

Delivery Details: 5-10days





Size

    483*236*44(mm)
