Features:

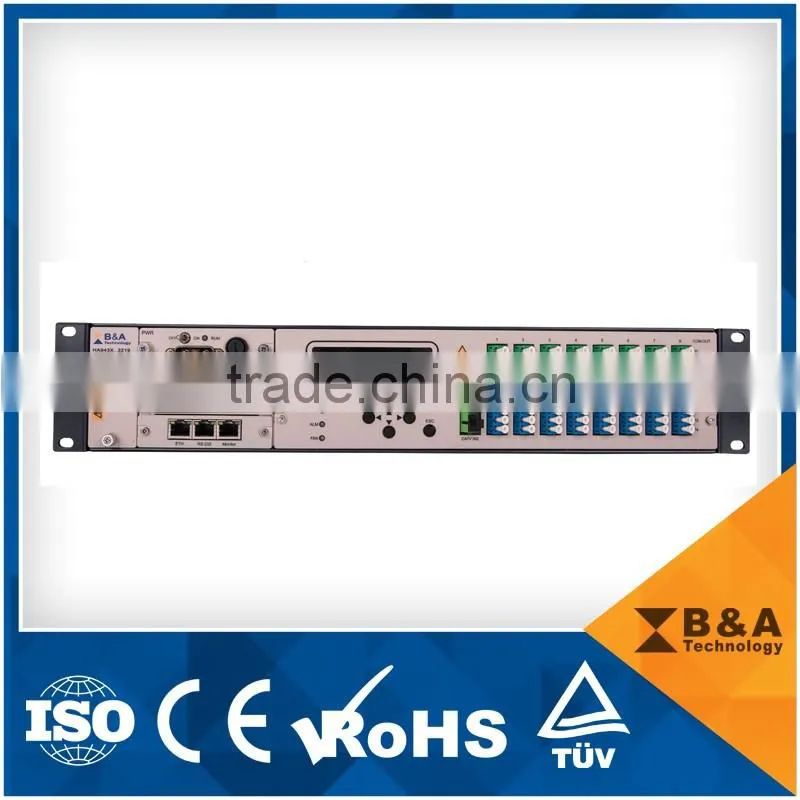

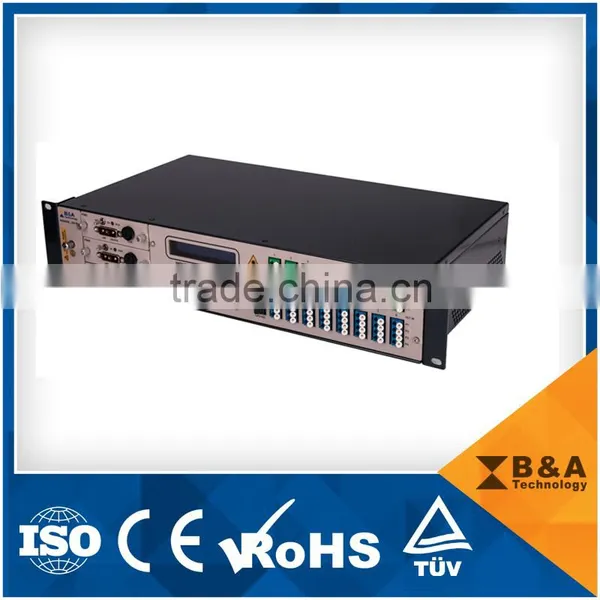

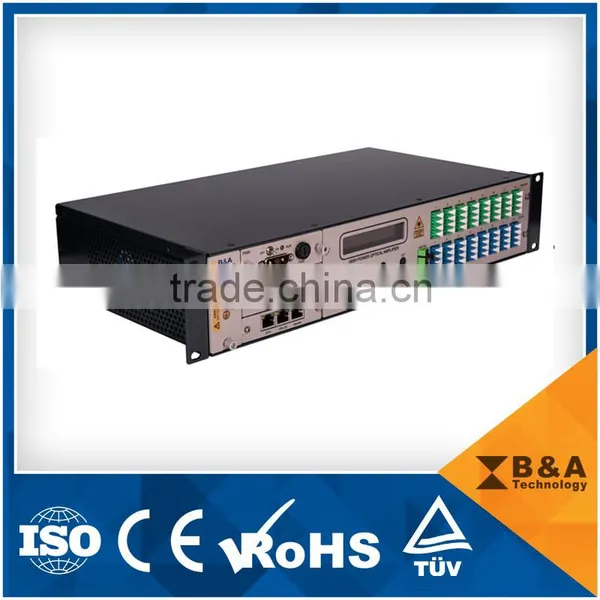

GPON Multi-port EDFA Combiner
Features
High power: up to 2W total, 1Unit for 2000~4000 optical node
Low Noise Figure: below 6dB (@0dBm input)
Low CSO: <-70dBc
High stability and reliability: MTBF>150000 hours
Redundancy Hot Swap Power module
Support Telnet and SNMP network management
Application
1.Analog CATV Transmission
2.FTTH Optical Access
3. Optical Distribution
4.Free Space Optical
Optical Characteristics
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Wavelength |
λc |
1545 |
1550 |
1565 |
nm |
Output Power(1) |
Po |
------ |
40 |
dBm |
|
Input power |
Pi |
-10 |
------ |
+10 |
dBm |
Output Port |
|
------ |
------ |
64 | dB |
Noise Figure(2) |
NF |
------ |
5.5 |
6 |
dB |
Output power stability |
ΔPo |
----- |
±0.2 |
±0.5 |
dB |
Input Isolator |
ISOi |
30 |
------ |
------ |
dB |
Output Isolator |
ISOo |
30 |
------ |
------ |
dB |
Input Pump Leakage |
PumpLin |
------ |
------ |
-30 |
dBm |
Output Pump leakage |
PumpLout |
------ |
------ |
-30 |
dBm |
Return Loss |
RL |
50 |
------- |
---- |
dB |
PDG |
PDG |
------ |
------- |
0.5 |
dB |
PMD |
PMD |
------ |
------- |
0.5 |
ps |
Electric Characteristics
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Power supply |
Vps |
-70 |
-48 | -40 | VDC |
Consumption |
P |
----- |
----- |
80 |
W |
Environmental Characteristics
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Operating Temperature |
Tw |
-5 |
----- |
60 |
℃ |
Storage Temperature |
Ts |
-25 |
----- |
65 |
℃ |
Humidity |
------ |
0 |
------ |
95 |
% |
483X240X88(mm)
Packing Details: Standard export package or customized package
Delivery Details: 7-15days
