YB-520 machine manufacturers large seedspacking machine 2 function in one machine
- 100 Set / Sets per Month
- Shanghai Port
- T/T Credit Card
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Chemical, Commodity, Food, Medical | Packaging Type: | Bags, Film, Pouch, Stand-up Pouch |
Packaging Material: | Paper, Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V | Power: | 2.5KW | Place of Origin: | Shanghai, China |
Brand Name: | YB | Model Number: | YB-520 | Weight: | 550kg |
Dimension(L*W*H): | L1500*W1140*H1540mm | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Contact--Linda by WhatsApp:+18201882624 Shanghai BanYan MachineryCo.,Ltd |

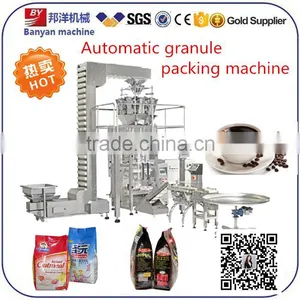

YB-520 Factory price!Automatic detergent large seedspacking machine
This machine also can pack block bag type and gusset bag type:
Usage
This machine is mainly used for packing granule products: such as sugar, salt, coffee beans,
rice, frozen dumplings, cereal, tea, washing powder,desiccants and so on.
Also can pack any powdered products, Just need change the feeding device.
Machine function and features:
1. This machine can automatically complete following work: material lifting-- Multi-heads maeasuring--coding--bag making--filling--gas injection / exhaust-- (optional)--sealing--
counting -- conveying finished products- sorting finished products.
2. PLC servo and pneumatic control system and super touch screen to form the drive control
center; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, when
replacement product can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to
promptly eliminate
5. Can make hole punching device after customer’s request.
6. This machine has stainless steel type and carbon steel type for your choice.
Technical parameter:
Model | YB-520 | YB-720 |
packing speed | 5-60bags/min | 5-55bags/min |
Packing volume | 2000ml | 4000ml (can be customized) |
Film width | <=520mm | <=720mm |
Thickness of film roll | 0.04-0.09mm | 0.04-0.09mm |
Macking bag size | L:80-400mm,W:150-250mm | L:80-450mm,W:150-350mm |
Pulling film type | Double belt pull film | Double belt pull film |
Air consumption | 0.8Mpa, 0.4m³/min | 0.8Mpa, 0.4m³/min |
Packing accuracy | <+-1% | <+-1% |
Power | 2.5KW | 3.0KW |
Power supply | AC220V, 50/60Hz | AC220V, 50/60Hz |
Seal type | pillow/gusset/block seal | pillow/gusset/block seal |
Main Machine net weight | 550kg | 700kg |
Main machine dimension | L1500*W1140*H1540mm | L1800*W1250*H1780mm |
YB-520 China supplier equipments producing coffee packaging machine CE approved
Selected installations:
1 Multi-bags cutting function (gusset bag type and block bag type)
2 Pothook holes punching function (circle hole and others)
3 Outlet conweyor device
4 Inflator and exhaust device
5 Air Compressor and nitrogen gas flush.
Gas injection and film roll pulling device :
Air inflow device:
Ribbon Printer:
PLC and Color Touch-Screen from famous brand.
Double belt pulling film to make the perfect bag shape:
The main packing machine is versatile, It's can pack any powdered products and any granular products. Just need change the feeding and metering device!
Like follows picture showed to you:
*Optional: Granule packing system:
*Optional:Powder packing system:
YB-520 China supplier equipments producing coffee packaging machine CE approved
Frequently Asked Questions
Q: Are you a factory or trading company?
A:BY Machinery is a factory who has rich experiences in food, drinks , medical and cosmetic industrials, we offer OEM services in the last over 10 years, and now we have our own brands and own designed machines for sale!
Q: How long need to ship the machines after order
A: All machines can be ready and shipped in 15 or 30 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q:Why should you choose our packing and filling machine ?A:We have been specialized in filling and packing machine for more then ten years,nd until now have exported mahcines to more than 30 countries
Q:Can you provide after-sale service ?
A:Yes ,sure.We have engineers available to service overseas .
Q:Can i visit your factory and send team for learning and inspect ?
A: Yes,sure.We will do our best to teaching you how to use the machine.
Q:What is our advantages?
A: 1.Competitive price
2. Excellent technical support
3.Best service
If you want know More details: ask me by any way you convenient.
Contact----Linda Shanghai BanYan Machinery Co.,Ltd
Contact Person | Linda | |
Job Title | Trade Manager | |
Skype | helenmachinery | |
WhatsApp/Tell | 0086-18201882624 | |
Wechat No. | linda27577 | |
helendeng(at) | ||
Company name | Shanghai Banyan Machinery Co.,Ltd | |
Website | www banyanmachine.en.china.cn | |
Address | No.8,Lanyu Rd,NanxiangTown,Jiading District,Shanghai,China |
We are factory, so we have outstanding engneers for your machine design to make the machine best for your products.
We also have a Warm sales team, we can do the best service for you! One Year warranty and lifelong technical support!
Welcome to visit our factory, Welcome to your inquiry!
