Fully Automatic big capacity soya milk/ wheat flour powder Packaging Machine
All of our Machines Can be Customized
Usage:
This machine is widely used to pack powder products: such as milk powder, flour, starch, coffee powder, spices, curry powder, protein powder, condiment, herbal powder, chemical and medical powder products.
Function and features for automatic powder packaging machine
1. This machine can automatically complete following work: material lifting--auger filler measuring--coding--bag making--filling--sealing--counting--conveying finished products--sorting finished products.
2. PLC servo and pneumatic control system and super touch screen to form the drive control center; high reliability and the intellectualized degree, and equipped with safety protection.
3. Touch screen can store a variety of different product packaging process parameters, when replacement product can be used at any time without having to reset.
4. Equipped with fault display system, when the fault occurs, be clear at a glance, in order to promptly eliminate.
5. Can make hole punching device after customer’s request. 6. This machine has stainless steel type and carbon steel type for your choice.
6. This machine has stainless steel type and carbon steel type for choice
Optional device:
1. Hole punch device
2. Tear notch device
3. Link bag device
4. Valve device
5. Gusset bag device
6. Gas injection/exhaust device
Optional External Device:
1. Air Compressor
2. Check weigher
3. Metal detector
4. Date printer
5. Finished products conveyor
Fully Automatic big capacity soya milk/ wheat flour powder Packaging Machine
Model |
YB-520F automatic powder packing machine |
Packing speed |
5-60 bags/min |
Packing volumn |
2000ml |
Making bag size |
L: 80-400mm, W: 150-250mm |
Film width |
≤ 520mm |
Thickness of film roll |
0.04-0.09mm |
Pulling film type |
Double belt pull film |
Air consumption |
0.8Mpa, 0.4m³/min |
Packing accuracy |
≤ ±1% |
Power |
2.5 KW |
Power supply |
AC220V, 50/60Hz |
Seal type |
Pillow seal, Gusset bag, Block bottom bag |
Main machine net weight |
550kg |
Main machine dimension |
L1500 × W1140 × H1540mm |
Whole machine
PLC Controlled touch screen, easy to operate and maintenance
Double Belt Pull Film, more steady and precise.
Collar Bag Former
Finish Bag conveyor
Film Roll to hold plastic film
Cylinder

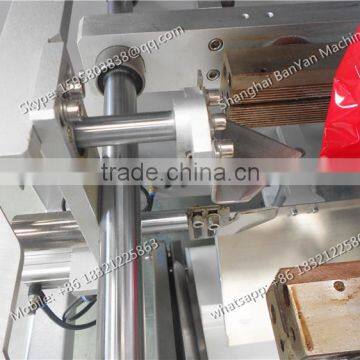

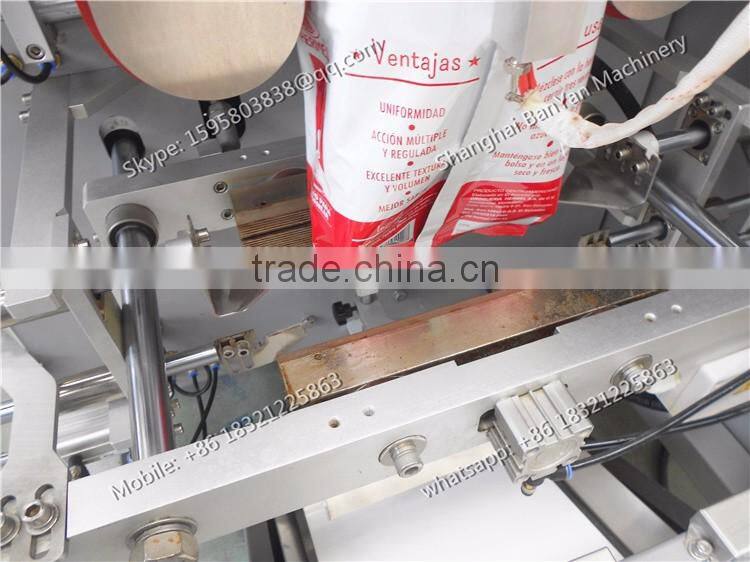

Gusset Device and horizontal sealer and cutter

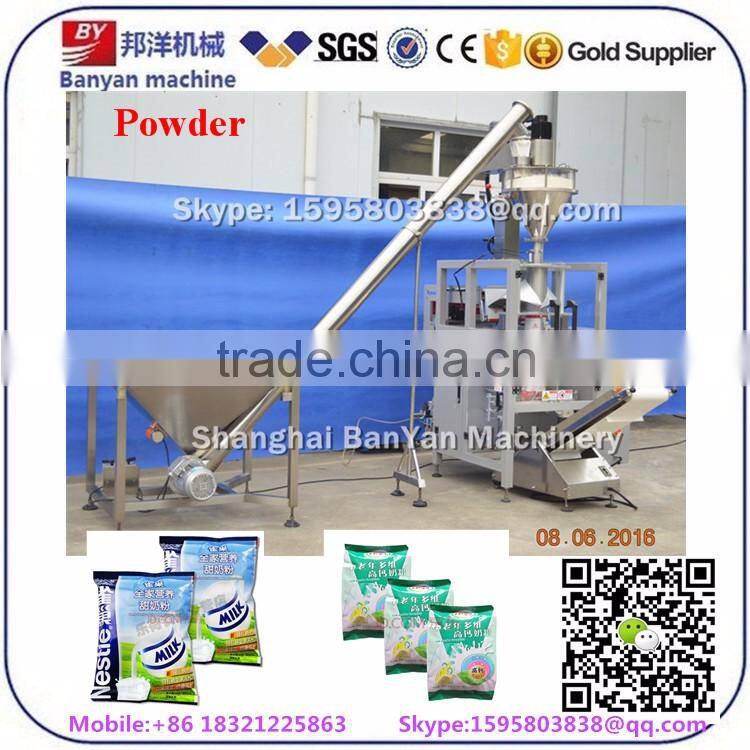

Whole Machine
Our CE Certificate and our clients from all over the world:
Shanghai BanYan Machinery Co.Ltd Recently CIPM Exibition
We are the best choice for you!
Q: Why should I choose your packing and filling machine ?
A: We have been specialing in filling and packing machine for more than 10 years,and we have exported machines to more than 30 different countries all over the world for now.
Q: Are you a factory or trading company?
A: BanYan Machinery is a factory who has rich experiences in food, drinks , medical and cosmetic industrials. We have been offering OEM services more than 10 years, and now we have our own brands and designed machines for sale!
Q: How long will you ship the machines after my order placed?
A: All machines can be ready and shipped in 15 to 30 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q: Can you provide after-sale service ?
A: Yes ,sure.We have engineers available to service overseas.
Q: Can I visit your factory and send team for learning and inspect ?
A: Yes,sure.We will do our best to teach you how to use the machine.
Q: What is your advantages?
A: 1.Good quality machines and Competitive price.
2.Excellent technical support.
3.Best service for you.
We are not only selling our machines to you ,we also do the best service for our customers.
Looking forward to the cooperation with you!
Factory of our company:
Fully Automatic big capacity soya milk/ wheat flour powder Packaging Machine
Warm welcome your inquiry about our powder packing machine!!!
