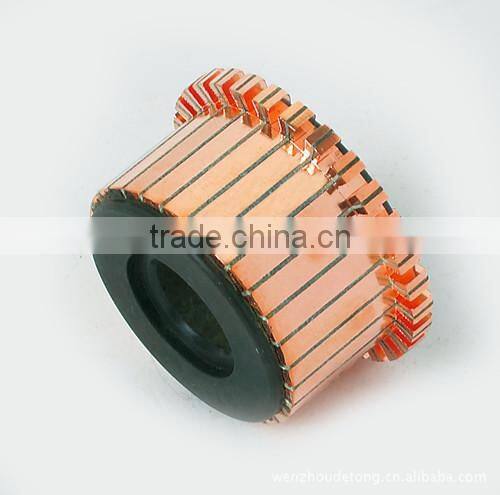

starter motor commutator flat commutator with high quality
Product Description:
| Materials | 0.03% or 0.08% sliver copper/bakelite CN6551 |
| Size | 24.1*8*22.5mm |
| Structure | Segmented/ Hook/ Groove commutator |
| Usage | Motor spare parts |
| MOQ | 500pcs |
| Sample Time | 15-30 days |
| Delivery Time | 30 days |
| Packing | Paper cartons on pallets/ Customized |
| Brand | SH series commutator |
| Production Capacity | 1000000pcs/month |
| Service& Warranty | Best service for all customers, with 6 months' warranty |
Technical Specifications:
1. To be free from void(bubble) more than 1mm and cracks in molded resin surface, but air hole(depth 1.4±0.1, width 0.5± 0.05 ) should be tolerated. |
| 2. Voltage Test: Bar to bar at 450V, 1s, and bar to shaft at 1500V, 1 min, there will be no breakdown or sparl |
| 3. Spin Test: Under 180±2 ℃ , 3000rpm, 3mins, the max change in OD is 0.01mm and the max deviation between bar to bar is 0.003. |
| 4. Insulation Resistance: The insulation resistance is greater than 50MΩ under 500V. |

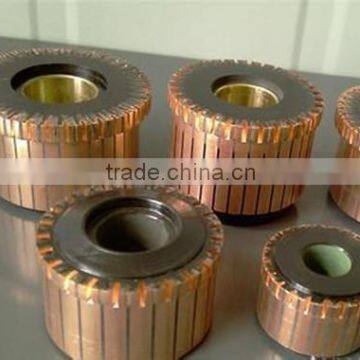

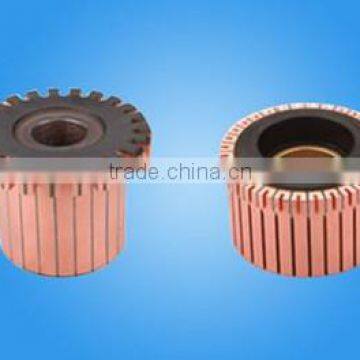

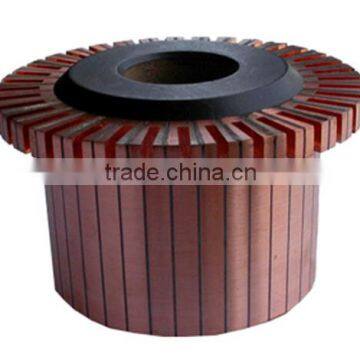

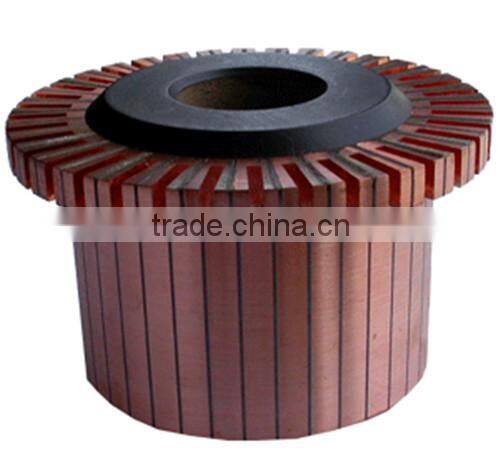

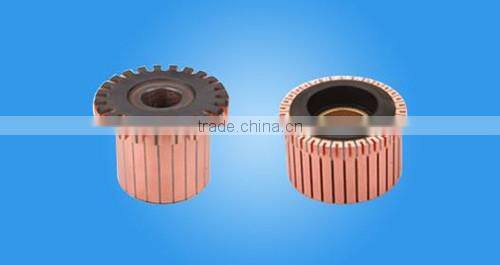

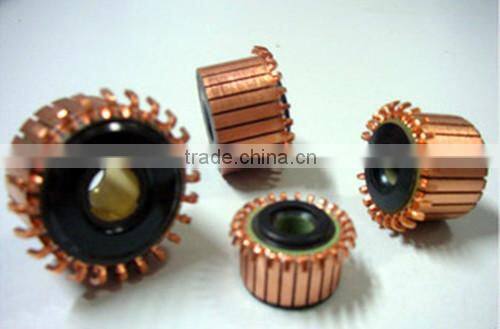

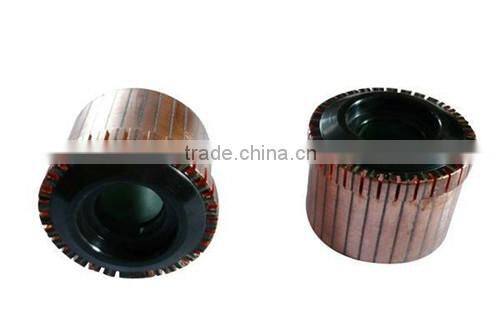

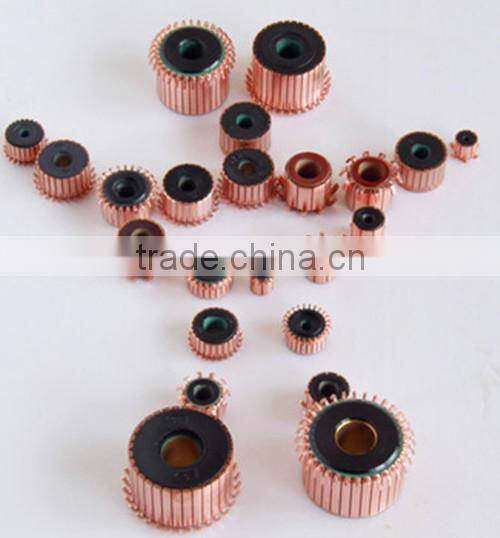

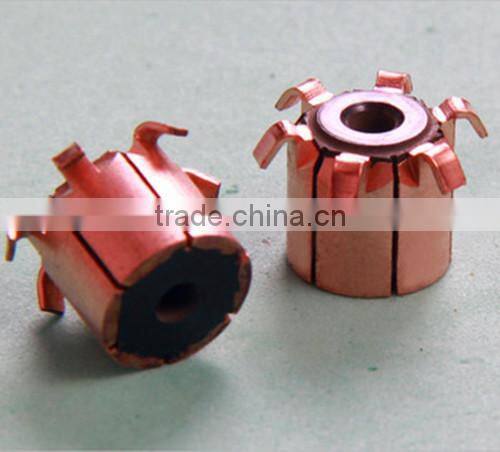

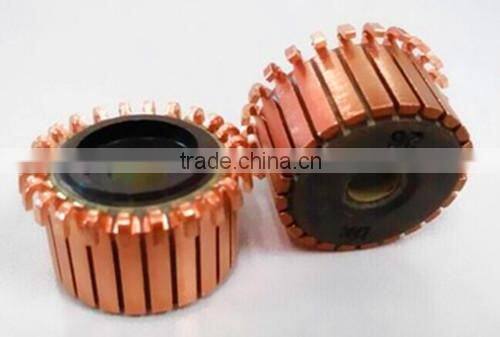

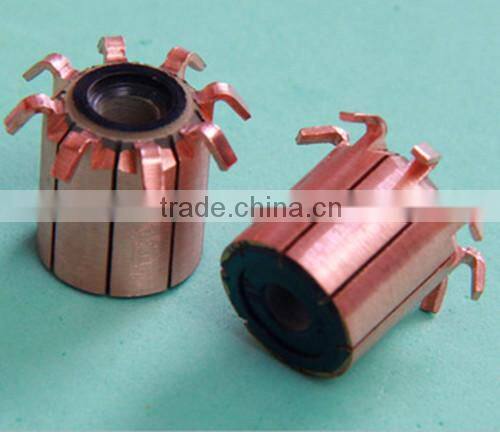

product picture:
Package and Delivery:
Package :carton box with plastic tray or according to your requirement
Delivery:7 days after receiving your payment
About Company:
Jiangxi Sanhe electromechanical Co., Ltd is a professionalmanufacturer and exporter that is concerned with the design, development and production of commutator .
We are located in NO.888 High-tech Industrial Real Estate,Xinyu,Jiangxi,China with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world.
Covering an area of 3000 square meters, we now have over 100 employees and an annual sales figure that exceeds 10million USD We are currently exporting 98%of our products worldwide.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Europe,South korea,India,Europe,America.
