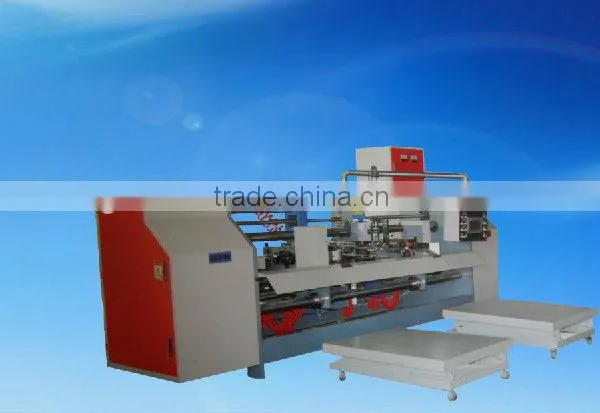

Help CenterSDJ-2400 Double Pieces Stitching Machine/semi-auto Cardboard Stitching Machine/stitcher
Related Products
-
SDJ-3000 High Speed Semi-auto Cardboard Stitching Machine/stitcherUS$ 30,000 - 59,000MOQ: 1 Set -
Semi-automatic Stapled MachineUS$ 13,000 - 19,000MOQ: 1 Set
-
Semi-auto Staple MachineUS$ 13,000 - 19,000MOQ: 1 Set
-
SDJ-2700 High Speed Semi-auto Cardboard Stitching Machine/stitcherUS$ 30,000 - 59,000MOQ: 1 Set
-
SDJ-2400 High Speed Semi-auto Cardboard Stitching Machine/stitcherUS$ 30,000 - 59,000MOQ: 1 Set
Specifications
stitching machine1, double pieces
2, Applicable to large cardboard
3, high speed, automatic counting
4,Servo motor
Whole machine:
Mechanical advantage:
1.The speed is high, about 500 nial/ per minute.
2.Operate easily,it does noy require skilled personnel,more flexible,
3.Effective in reducing labor intensity, double servo drive,operation more convenient,less mechanical transmission part, so the failure rate I slower
4.A dual-prupose machine,single and double sheet,irrgular carton, cartons without cover and bottoms can be nailed
Function:
- Can nail :single,double,shtrengthening the nail screw at one time
- Mixer is suitable for the big carton,binding energy and fast
- In pieces size using automatic control,computer screen disply and fault description
- Nail spacing: 0mm~120mm can be arbitrary regulation.
- Full electric controlpieces size used
- paper feeding unit adopts automatic counting
- Mixer adjustment screw pitch,apply computer setting automatic nail spacing
- Mixer is suitable for 3 or 5 layers big carton
Configuration:
The use of power: 12HP (Janpan Yasukawa from serving motor)
All of Taiwan’s imports of all belt.
Control box switch with all Taiwan Shihlin production.
Aie compressor used the production plant in Taiwan.
Switch $ button used in Taiwan plant.
Bearing used in Japan KOYO NACHI brand
ALL of the speed reducer adopts the production plant in Taiwan.
Nail head adopts a special tungsten steel production,computer gongprecision machining.
Choose Configuration:
Siemens PLC
Germany bearing
Italian servo motor
Parameter |
DXJ-2400 |
DXJ-2700 |
DXJ-3000 |
Max(L+W)*2 |
4800mm |
5400mm |
6000mm |
Paper size |
1060mm |
1060mm |
1060mm |
Max board length |
2550mm |
2550mm |
2850mm |
Min board length |
350mm |
350mm |
350mm |
Max board width |
1200mm |
1300mm |
1500mm |
Min board width |
180 |
180 |
180 |
Min board hight |
400 |
400 |
400 |
Nail Span(small-big) |
0-120mm |
0-120mm |
0-120mm |
Nails number |
1-99 nails |
1-99 nails |
1-99 nails |
Mechanical speed |
500/min |
500/min |
500/min |
Service Motor |
18HP |
18HP |
18HP |
Mechanical length |
6000mm |
6000mm |
6000mm |
Machine weight |
4000kg |
4100kg |
4200kg |
Maximum slotted nail length |
600mm |
||
Maximum first nailing position |
25mm(D)/No cover |
||
