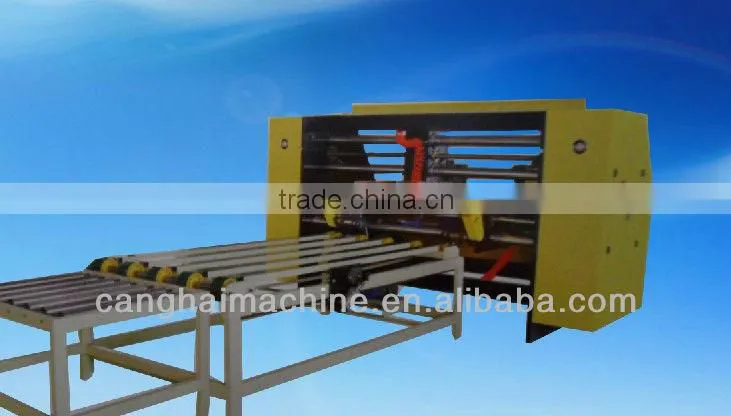

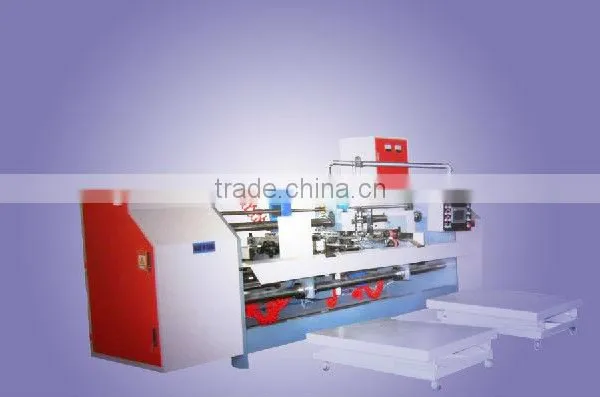

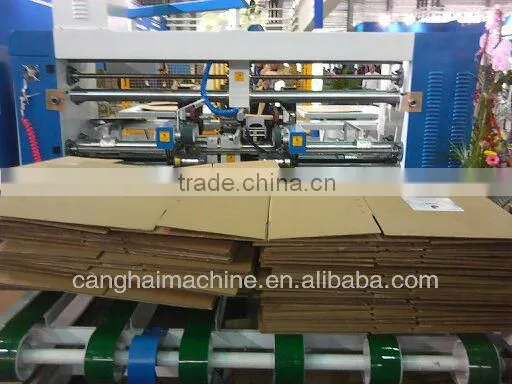

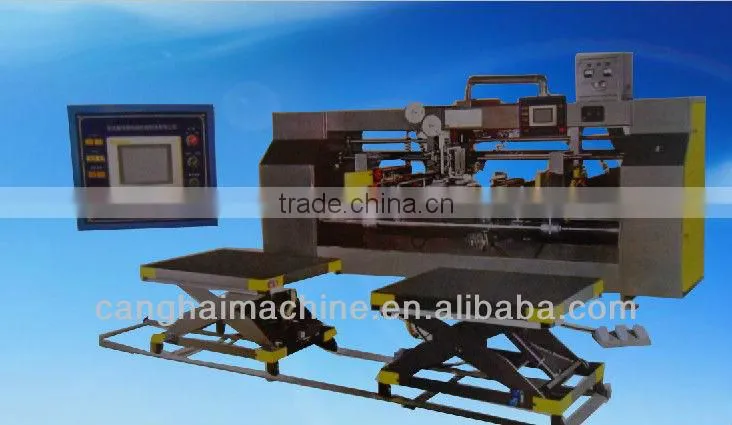

SDJ-2700 Semi-automatic stitching machine (one pieces and two pieces)

Specifications

stitching machine
1, double pieces
2, Applicable to large cardboard
3, high speed, automatic counting
4,Servo motor



Whole machine:



Mechanical advantage:



1.The speed is high, about 500 nial/ per minute.



2.Operate easily,it does noy require skilled personnel,more flexible,



3.Effective in reducing labor intensity, double servo drive,operation more convenient,less mechanical transmission part, so the failure rate I slower



4.A dual-prupose machine,single and double sheet,irrgular carton, cartons without cover and bottoms can be nailed



Function:



1. Can nail :single,double,shtrengthening the nail screw at one time
2. Mixer is suitable for the big carton,binding energy and fast
3. In pieces size using automatic control,computer screen disply and fault description
4. Nail spacing: 0mm~120mm can be arbitrary regulation.
5. Full electric controlpieces size used
6. paper feeding unit adopts automatic counting
7. Mixer adjustment screw pitch,apply computer setting automatic nail spacing
8. Mixer is suitable for 3 or 5 layers big carton

Configuration:



The use of power: 12HP (Janpan Yasukawa from serving motor)



All of Taiwan’s imports of all belt.



Control box switch with all Taiwan Shihlin production.



Aie compressor used the production plant in Taiwan.



Switch $ button used in Taiwan plant.



Bearing used in Japan KOYO NACHI brand



ALL of the speed reducer adopts the production plant in Taiwan.



Nail head adopts a special tungsten steel production,computer gongprecision machining.



Choose Configuration:

Siemens PLC

Germany bearing

Italian servo motor











Parameter	DXJ-2400	DXJ-2700	DXJ-3000
Max(L+W)*2	4800mm	5400mm	6000mm
Paper size	1060mm	1060mm	1060mm
Max board length	2550mm	2550mm	2850mm
Min board length	350mm	350mm	350mm
Max board width	1200mm	1300mm	1500mm
Min board width	180	180	180
Min board hight	400	400	400
Nail Span(small-big)	0-120mm	0-120mm	0-120mm
Nails number	1-99 nails	1-99 nails	1-99 nails
Mechanical speed	500/min	500/min	500/min
Service Motor	18HP	18HP	18HP
Mechanical length	6000mm	6000mm	6000mm
Machine weight	4000kg	4100kg	4200kg
Maximum slotted nail length	600mm
Maximum first nailing position	25mm(D)/No cover
