Help CenterSlitting Creasing and Thin Blade Corrugated Paperboard Machine
Related Products
-
Corrugated Thin Blade Slitter Scorer and Creasing Machine/packing MachineUS$ 1,000 - 5,000MOQ: 1 Set -
Slitting Creasing and Cutting Corrugated Paperboard MachineUS$ 1,000 - 5,000MOQ: 1 Set
-
Corrugated Carton Creasing Slitting MachineUS$ 3,000 - 7,000MOQ: 1 Set
-
Slicing Paper and Rolling the Line MachineUS$ 2,000 - 3,000MOQ: 1 Set
-
Cardboard Slitter Scorer MachineUS$ 2,000 - 3,000MOQ: 1 Set
Specifications
Automatic Slitting and Creasing Machine1.selling well more than 20 country
2.perfect service
3.one year warranty

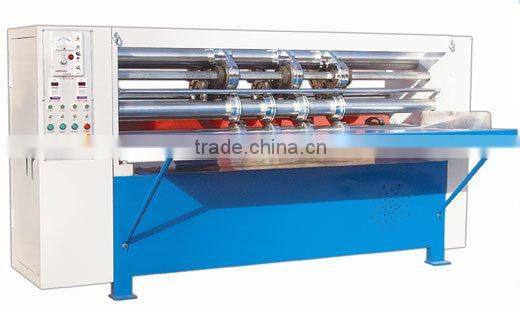

Automatic Slitting and Creasing Machine
Functions:
Mark of main being used in cardboard paper and line ball.
Features:
The machine is driven by stepless motor and its power is transmitted synchronically with gears and sprocket wheels. It is featured with low noise, smooth drive and easy adjustment of breadth. The paper separating blade is made of 1.2mm high-strength alloy and feeding rollers are made of rubber that leave no marks on paper. The machine is error-free in paper separating and good at saving electricity with lower rate. Equipped with auto and manual blade milling unit, the machine can ensure smooth edges of the paper and non shrunken corrugations and is recongized as the ideal equipment for carbon box and packing industries.
Main Technological parameters
Model(Unit:mm) |
SYF2200 |
SYF2500 |
SYF3000 |
Width |
2200 |
2500 |
3000 |
Maximum feeding size |
2100 |
2400 |
2900 |
Minimum feeding size |
120 |
120 |
120 |
Maximum blade diameter |
260 |
260 |
260 |
Minimum blade diameter |
225 |
225 |
225 |
power |
3 |
4 |
4 |
Trace pressing wheels |
6 |
6 |
6 |
Cutting knife |
4 |
4 |
4 |
Dimension |
3100*1250*1350 |
3400*1250*1350 |
3950*1250*1350 |
Notice:According to customer's dimension , width can be made wide or narrow ,The maximum width can be 3500mm.
Skype: thom-thomaswang
tel: +86-15132736834
