Help CenterCarton Box Machine Semi Automatic Flute Laminating Machinery
Related Products
-
Gift Box Laminating MachineUS$ 1,000 - 100,000MOQ: 1 Set -
Semi Automatic Cover Making MachineUS$ 11,000 - 15,000MOQ: 1 Set
-
FM Series Semi-auto Flute Laminating MachineUS$ 11,000 - 15,000MOQ: 1 Set
-
Carton Machinery Corrugated Flute LaminationUS$ 11,000 - 15,000MOQ: 1 Set
-
Fully Automatic Laminate MachineUS$ 11,000 - 35,000MOQ: 1 Set
Specifications
cardboard lamination machine1. semi-automatic
2 double ues lamination machine...
Type: Laminating Machine
3 ISO ,CE
Specifications
1,high precision, easy operation, saver of time and labour
2,All material are inspected according to ISO-9001 standard
Specifications
Automatic Flute Laminating Machine MJBZQ-1-1600
*easy operation
*high precision
*good quality &service
*competitive pricce

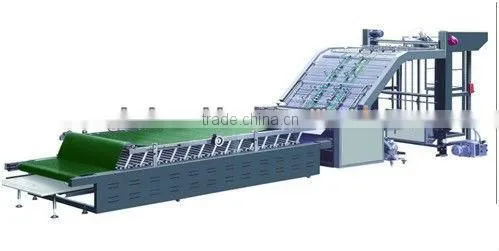

Automatic Carton Flute Laminating Machine
* Introduction
Automatic Carton flute laminating machine are designed for laminating cardboard and cardboard, cardboard and corrugated board (Flute shape A, B, C, D, E, F and N), 3-layer, 5-layer, or 7-layer corrugated paperboard all can be laminated smoothly and accurately. Famous internal or foreign foreign manufacturers make all the main components with long service life and excellent stability. Electrical components of internationally known brands are adopted to ensure reliability of running.
This machine features stability, high precision, easy operation, saver of time and labour, maintenance of convenience, etc.
* Characteristics
1. Automatic Flute Laminating machine adopts chain pusher and back registration system together with spring blade side lay and vacuum sucking conveying system makes this series of machine fit for a larger range of paper, high precision while remaining the features of easy operation and maintenance.
2. The core designed rubber roller together with knurled steel roller enhances the evenness of gluing, strength of stickiness, as well as lowering the production cost.
3. Balance-tested rollers, tight assembling technique, plus timing and tooth belt driving mechanic system makes the machine runs at low noise with high precision.
4. The machine adopts automatic glue supply and recyclable glue circulating system.
5. Self-developed high-strength feeder compliant with high configuration electric system makes the machine run at low malfunction and stable. The electric parts used are all world wide available brand or well-known Chinese brand.
6. All material are inspected according to ISO-9001 standard and the key parts such as the harmonic gear and bearings are imported ones.
7. The bottom sheet for this machine can be A, B, C, D, E, F flute corrugated sheet. It can do 3 or 5 ply board to sheet lamination or board to board lamination. The range for top paper can be 200-600 GSM with top paper advance or alignment function.
Model |
1300 |
1450 |
1600 |
Maximum size(W*L) |
1300*1100mm |
1450*1100mm |
1600*1400mm |
Minimum size(W*L) |
350*350 |
350*350mm |
450*450mm |
Laminate precision |
≤±1.5mm |
≤±1.5mm |
≤±1.5mm |
Speed |
6000 sheets / h |
6000 sheets / h |
6000 sheets / h |
Total power |
12kw |
12kw |
13kw |
Length |
12.5m |
12.5m |
15m |
Total weight |
6.8T |
7.2T |
8.0T |
Send Inquiry to This Supplier
