Specifications
>Carton Gluer machine
>One minute quick order change.
>Carton glue min size is 260mm.
It is for corrugated carton box's gluing. When you do not want your boxes been pasted by stapling, so maybe gluing is your best choice.
I think some general introduce of it is necessary:
Features
1. Designed with reasonable construction and outstandling shape for easy operation and perfect performance.
2. E-eyes can be inductive for lifting point and control platform lifting up/down automatically.
3. Automatic side patting devices in the middle of machine can avoid scissor cross happening.
4. Motorized adjustment for Side patting guide in the middle and stacking platform in the backside. And with synchronously moving.
5. Pressure rollers combine with conveyor belts enhances the paper-shaping.
6. Auto-counter can set the quantity of finished items(1-20 pieces). Automatically form a bundle of finished one for help of packing.
7. Shift knobs are brand of schneider. optoelectronic switch are brand from taiwan. Main drive motors are also brand from taiwan. Others motor adopted domestic brand.
8. Two workers is necessary for whole process, glueing wrapping and well-stacking, can be done. Labor cost saving and easy operation.
The main and most important part is the Gluing Head.When the Glue come down from upside, it flows into the Gluing head. So the quality of the Gluing head means a lot to a gluing machine.
This machine is suitable for small and middle factory. It is faster then stapling machine.Also buautiful then stapling boxes in some way.
By the way. Normally the most popular size for this machine IS 2500mm. It is not
very big and nor small for big boxes. List the specifications as follows:
Technical parameters
Model |
ZXJ2400 |
Max.cardboard mm |
1200*2400 |
M.in cardboard mm |
300*900 |
Size mm |
11000*3000*1600 |
Weight KG |
6000 |
Power KW |
11.5kw |
cardboard thickness layer |
Three or five |
control way |
PLC and touch screen |
So the large corrugated carton board's size is no more than 2600mm. It is one
piece machine, not for two piece.

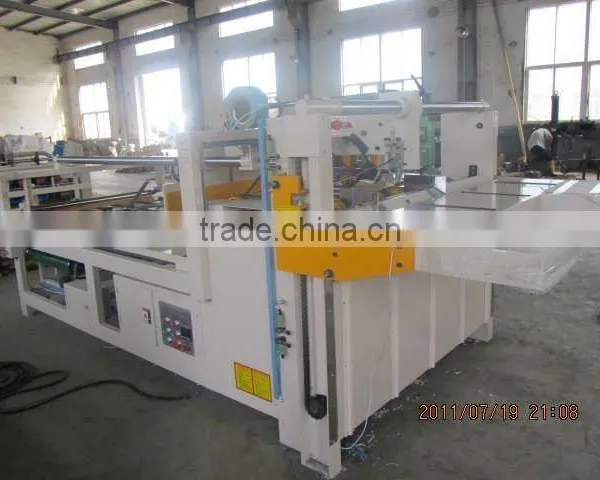

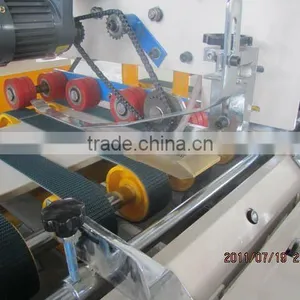

List some pictures to show the quality of our machines. That is why you would better
buy this kind of machine from our factory, because good quality with best price, we guarantee
one year warantee. We provide all the necessary spare parts of the machine. Because we
aer factory. So it is the main point.
