Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001

Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 thumbnail-1
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 thumbnail-2
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 thumbnail-3
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 thumbnail-4
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 thumbnail-5
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 thumbnail-6
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 photo-1

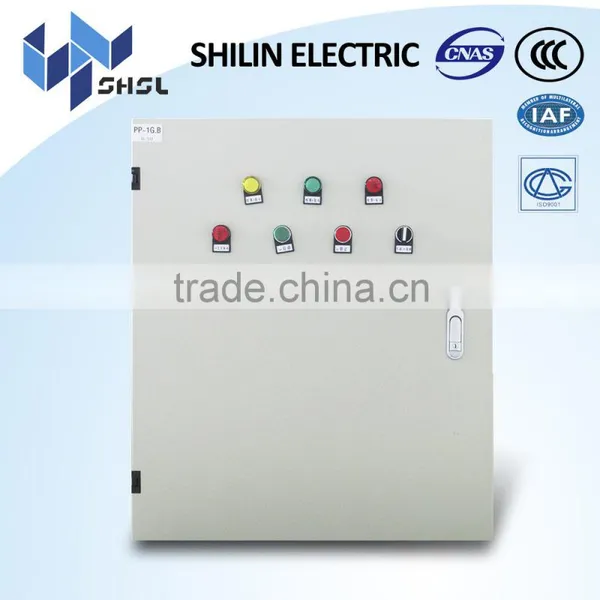

Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 photo-2
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 photo-3

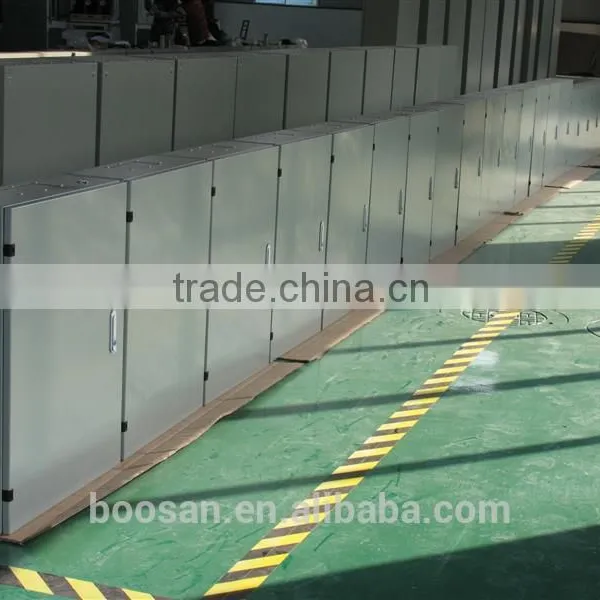

Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 photo-4
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 photo-5
Good Quality Ip65 Waterproof Shilin Electrical Switch Cabinet With Iso9001 photo-6
US$ 63.73 - 65 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
SHILIN
Model Number:
JXF
Contact Supplier Request Quote Chat Now
Shanghai Boosan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI Ningbo Zhoushan port Tianjin Tangshan Guangzhou Suzhou Qingdao Rizhao Qinghuang ISLAND Yantai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SHILIN
Model Number JXF
Protection Level IP65
Type Distribution Box
External Size Optional

  shilin electrical switch cabinet with iso9001



MORE PRODUCT & SIZE



MODEL PRODUCT SIZE(MM)
  Product model HEIGHT-A WIDTH-B DEPTH-C
JXF-250*200*140 250 200 140
JXF-300*250*140 300 250 140
JXF-300*250*180 300 250 180
JXF-300*300*140 300 300 140
JXF-300*300*180 300 300 180
JXF-400*300*140 400 300 140
JXF-400*300*200 400 300 200
JXF-500*400*140 500 400 140
JXF-500*400*200 500 400 200
JXF-500*400*230 500 400 230
JXF-600*400*140 600 400 140
JXF-600*400*200 600 400 200
JXF-600*400*230 600 400 230
JXF-600*500*140 600 500 140
JXF-600*500*200 600 500 200
JXF-600*500*230 600 500 230
JXF-700*500*160 700 500 160
JXF-700*500*200 700 500 200
JXF-700*500*250 700 500 250
JXF-800*600*200 800 600 200
JXF-800*600*250 800 600 250
JXF-1000*800*200 1000 800 200
JXF-1000*800*250 1000 800 250
JXF-1000*800*300 1000 800 300





Product Description

 It is suitable for three-phase three-wire, four-wire, five-wire system of 50Hz, 500V and less than 250A loading current. It is suitable for three-phase three-wire, four-wire, five-wire system of 50Hz, 500V and less than 250A loading current.



JXF low-voltage control box is suitable for three-phase three-wire, three-phase four-wire, three-phase five-wire system of 50Hz, 500V or lower, with less than 250A loading current. It is used to control distribution system, leakage protection, and various control and protection of motor overloading, short-circuit, lacking phase. This box has reasonable desigh, small size, nice apperance, reliable performance, to be widely used in metallergy, petrol, medical health, avigation, building, malls, schools and city constructions.







STANDARDS

  IEC60439-1:1992 Low-voltage complete set switchgear and control equipment, first part: Type test and partial type test complete set equipement.



GB7251.1-1997 Low-voltage complete set switchgear and control equipment, first part: Type test and partial type test complete set equipment.





AMBIENT CONDITIONS



1. Altitude:  ≤2000m;
2. Ambient temperature: -25°c~+40 °c ;
3. The relative humidity of month average under +20 °c : ≤ 90%;
4. Air condition: no baleful gas, steam and volatile dust;
5. Applicable occasions should free from corrosives and severe vibrations.





STRUCTURE FEATURE
JXF close type control box shell materials adopt 1.5mm thickness quality steel, its surface adopts nice bright epoxy resin powder dope, and do static sputing process. Nice structure.
1. Multi-series, multi-structure: welding type, seperate type, assembly type, outdoor type and indoor type.
2. Multi double-layer door structure, reliable performance.
3. Multi-protection class: IP20, IP40, IP43, IP54, IP65, it can meet different places' requirements.
4. Separate type has excellent quality, can interchange same specification product freely.







CONTROL BOX OVERVIEW
