Specifications
1,corrugated paperboard rotary die cutting machine2,imported rubber
3,electric phase
4,used for paperboard

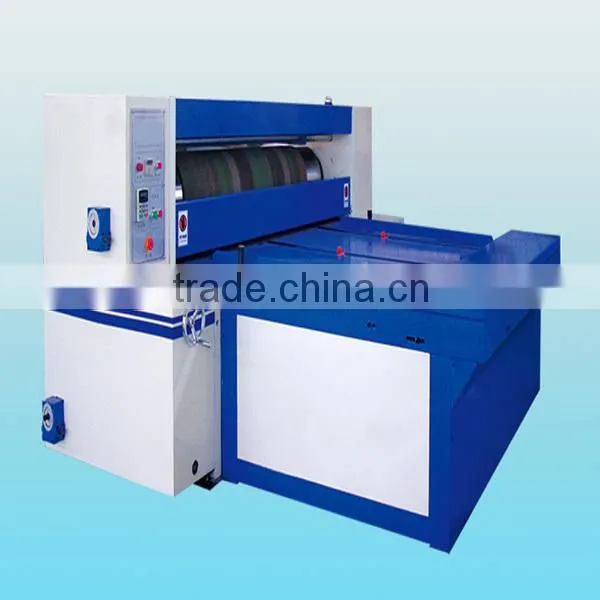

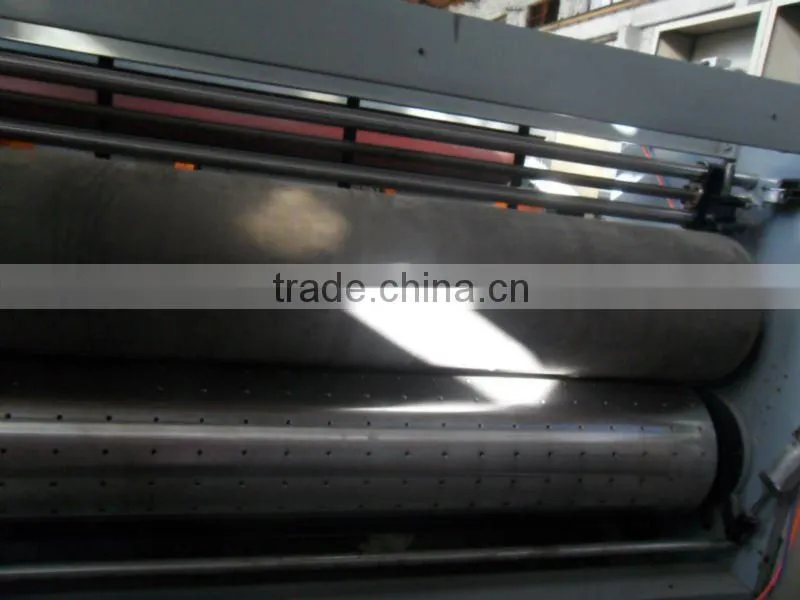

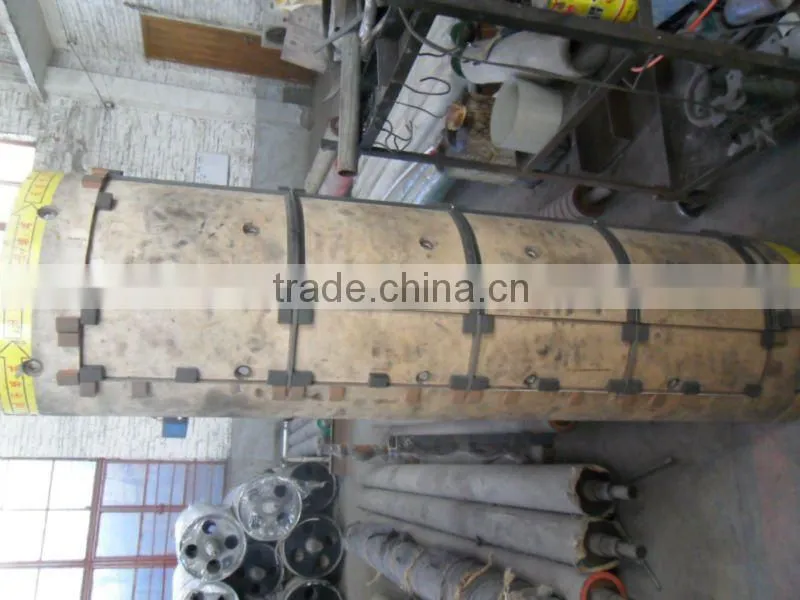

corrugated carton rotary die cutting machine
1,It adopts chain paper feeding style, double roller moving rolling pressing . It is the ideal equipment to make the printed corrugated box once to finish slicing ,pressing the line ,slicing the corner ,punching special hole and so on .
2,It adopts electric phase , input the digital adjustment phase directly ,adjust quickly and precisely ,rubber roller line speed automatic repair and rubber cushion restore(electric restore )function .It can restore 3-4 times and every time repair 1-1.5 mm .
3,The die roller is automatically horizontal moving and line speed repairing to make cushion rubber even pads .The cushion roller’s mechanical , horizontal and cam facility moves horizontally in a scope of ±35 mm to lengthen the using life of the die cutting cushion .
4,It equipped with counter , alarm bells and light control to reduce die-cutting without paperboard.
5,Imported cushion rubber , long use life . It adopts sprinkle lubricating system .
6,The main body and gears are made of high quality steel (50mm) after high frequency quenching .
type |
Max. size of paperboard(mm) |
Min. size of paperboard(mm) |
Die-cutting thickness(mm) |
Total power(kw) |
MQJ-1600B |
1600*1350 |
300*500 |
1-8 |
4.0 |
MQJ-1800B |
1800*1350 |
300*600 |
1-8 |
5.5 |
MQJ-2100B |
2100*1600 |
400*600 |
1-10 |
7.5 |
MQJ2400B |
2400*1600 |
400*700 |
1-10 |
7.5 |
