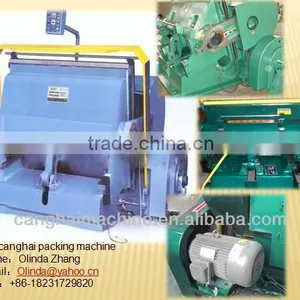

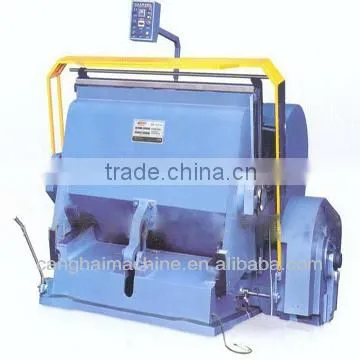

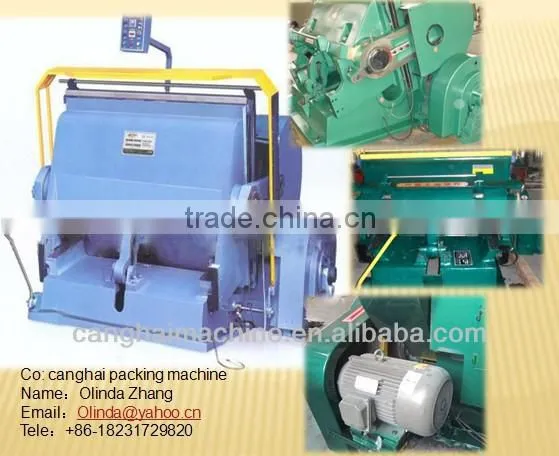

Creasing Cutting Machine or Corrugated Board Making Machine
US$ 7,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Application:
Commodity, Other, Commodity, Machinery & Hardware, making all kinds of carton mould, Machinery & Hardware
Packaging Type:
Cartons, Case, Other, Cartons, Case, wooden case or plastic, Carton
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1300-1600 Series of Creasing Cutting Machine/creasing Cutting MachineUS$ 7,000 - 12,000MOQ: 1 Set -
Creasing and Die Cutting MachineUS$ 7,000 - 12,000MOQ: 1 Set
-
Paperboard Creasing and Cutting MachineUS$ 11,000 - 12,000MOQ: 1 Set
-
Creasing Cutting MachineUS$ 7,000 - 12,000MOQ: 1 Set
-
ML750 Creasing Cutting Machine,creaser and Die CutterUS$ 7,000 - 12,000MOQ: 1 Set
Application
Commodity, Other, Commodity, Machinery & Hardware, making all kinds of carton mould, Machinery & Hardware
Packaging Type
Cartons, Case, Other, Cartons, Case, wooden case or plastic, Carton
Packaging Material
Paper
Automatic Grade
Semi-Automatic
Driven Type
Other, Electric, Electric
Voltage
220v or 380v
Place of Origin
Hebei, China
Brand Name
Canghai, Canghai
Model Number
1300-1600
Weight
1t-10t
Dimension(L*W*H)
2*1.5*1.2
Certification
ISO9001 and CE certificate
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

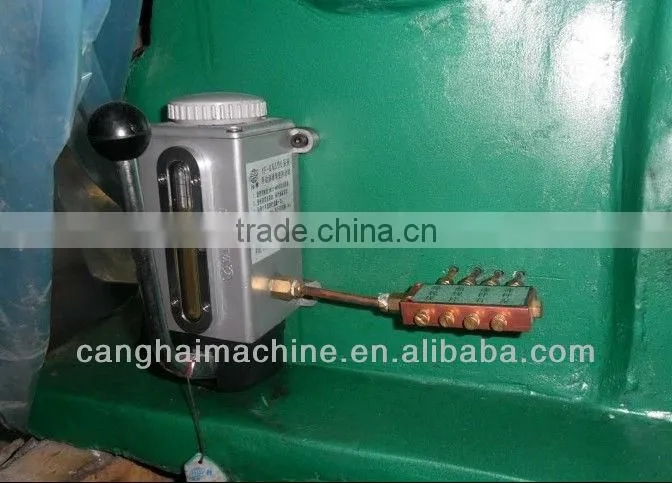

1.Smooth runing2.Uses centralized lubrication pump system
3.Adopts world famous brand electrical components
4.CE and ISO

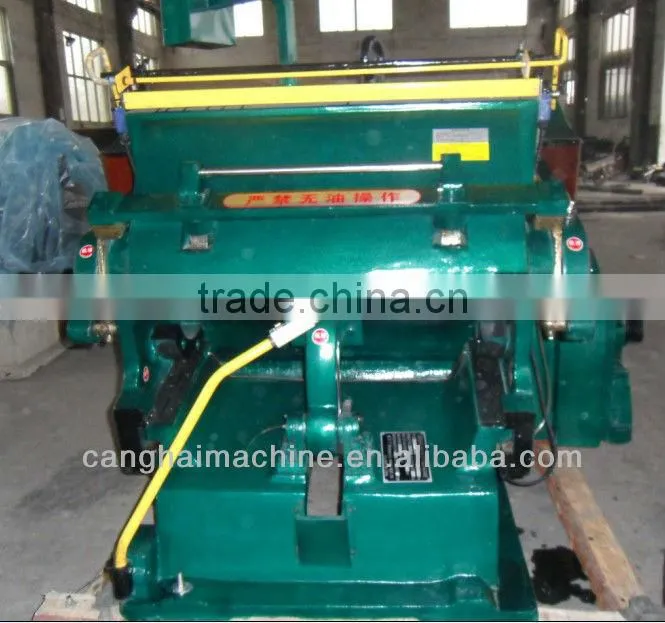

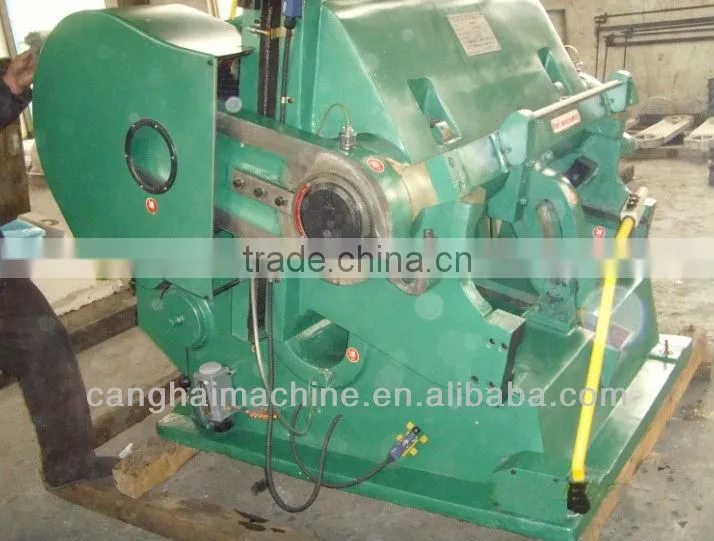

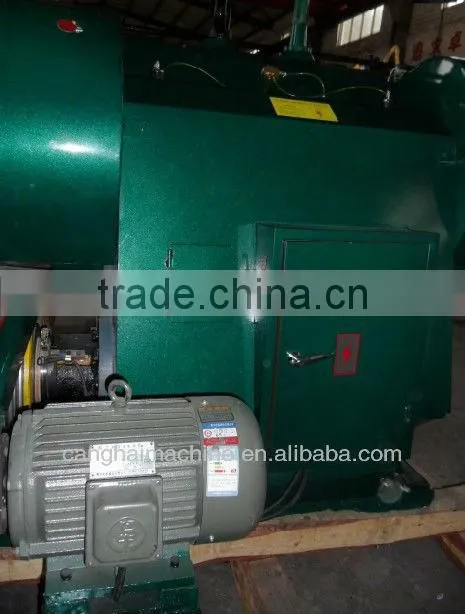

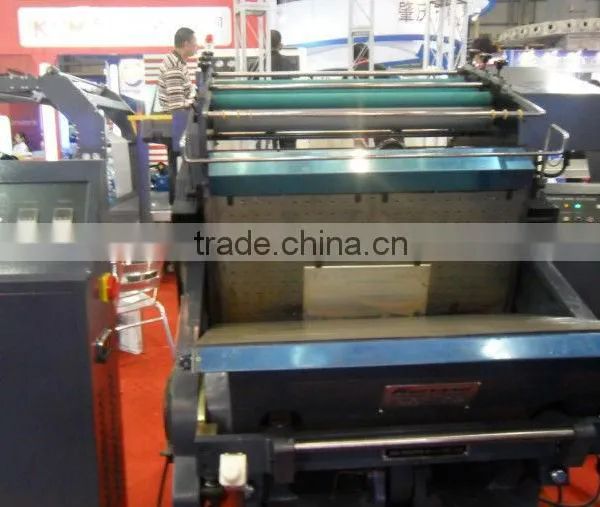

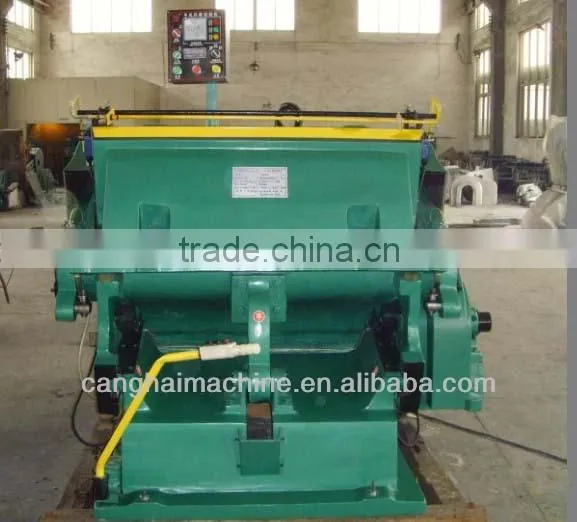

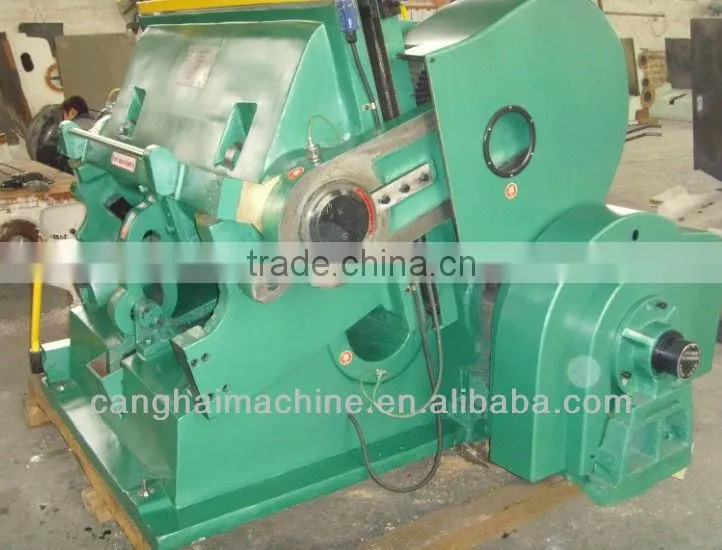

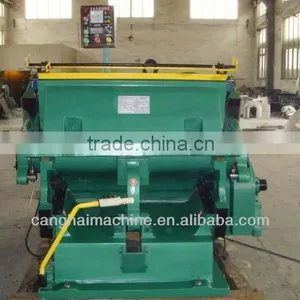

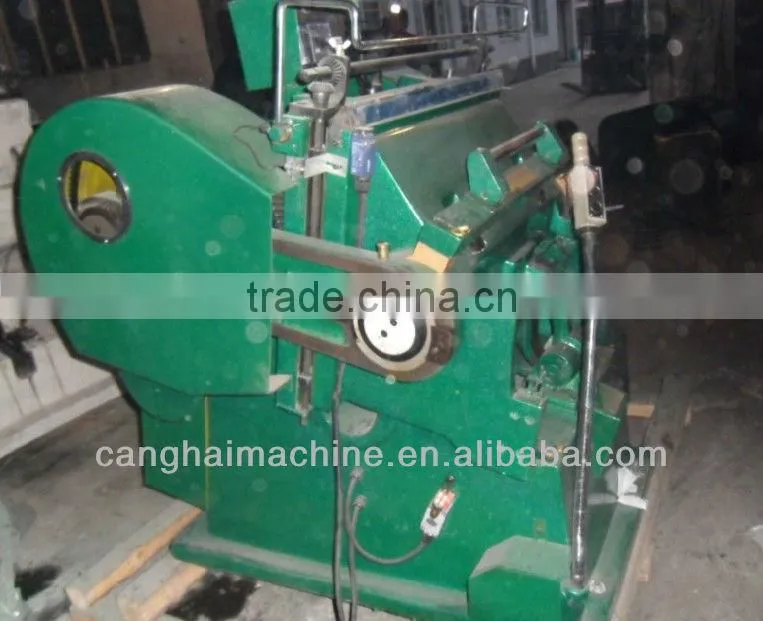

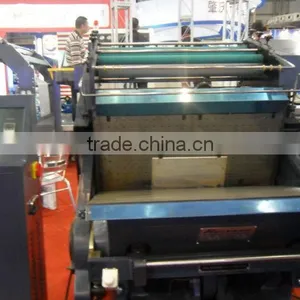

Creasing cutting machine or corrugated board making machine
Functions and characteristics:
1 High strength dve to one piece casting by using top quality materials for machine body
2 Smooth runing, big pressure and low noise are obviously remarked as 3-step helical gear mechanism is adopted
3 Single plate electromagnetic clutch is sensitive subreliable
4 Operational altitude is reasonably arranged.Moving-bed opens to its optimun
5 Safty system is really reliabl
Note:(The color of equipment can be choose from)
RQ serial die cutting & creasing machines special equipments of die cutting and creasing a wide range of materials, such as cardboard, corrugated board, plastic and leather. They are applicable to the fields of printing, packaging, decoration and plastic industries. RQ machines have been acceptable for the customers from home and abroad, due to their outstanding features, high quality and good service.
Technical Parameters:
Model |
Max.Rule Area (mm) |
Working speed(strokes/min) |
Max Rule Length |
Motor power(kw) |
Weight (kg) |
Overall Deminsion(L*W*H) (mm) |
ML750 |
750*520 |
25±2 |
<25m |
2.2 |
1900 |
1260*1400*1280 |
ML930 |
930*670 |
23±2 |
<25m |
5 |
3000 |
1670*13701630 |
ML1040 |
1040*720 |
21±2 |
<30m |
5.5 |
4000 |
1800*1680*1600 |
ML1100 |
1100*800 |
20±2 |
<30m |
5.5 |
4500 |
1900*1780*1700 |
ML1200 |
1200*850 |
18±2 |
<38m |
7.5 |
6500 |
2000*2140*1940 |
ML1300 |
1300*920 |
18±2 |
<38m |
7.5 |
6500 |
2000*2140*1940 |
ML1400 |
1400*1000 |
17±2 |
<38m |
7.5 |
7200 |
2010*2400*1950 |
ML1500 |
1500*1100 |
17±2 |
<40m |
7.5 |
8500 |
2010*2480*1960 |
ML1600 |
1600*1250 |
16±2 |
<43m |
11 |
11800 |
2170*2560*2080 |
ML1700 |
1700*1280 |
16±2 |
<45m |
11 |
12500 |
2170*2560*2100 |
ML1800 |
1800*1280 |
16±2 |
<50m |
11 |
14200 |
2180*2760*2100 |
ML2000 |
2000*1400 |
16±2 |
<58m |
15 |
16500 |
2270*3100*2150 |
1400MM die-cutting and creasing machine
