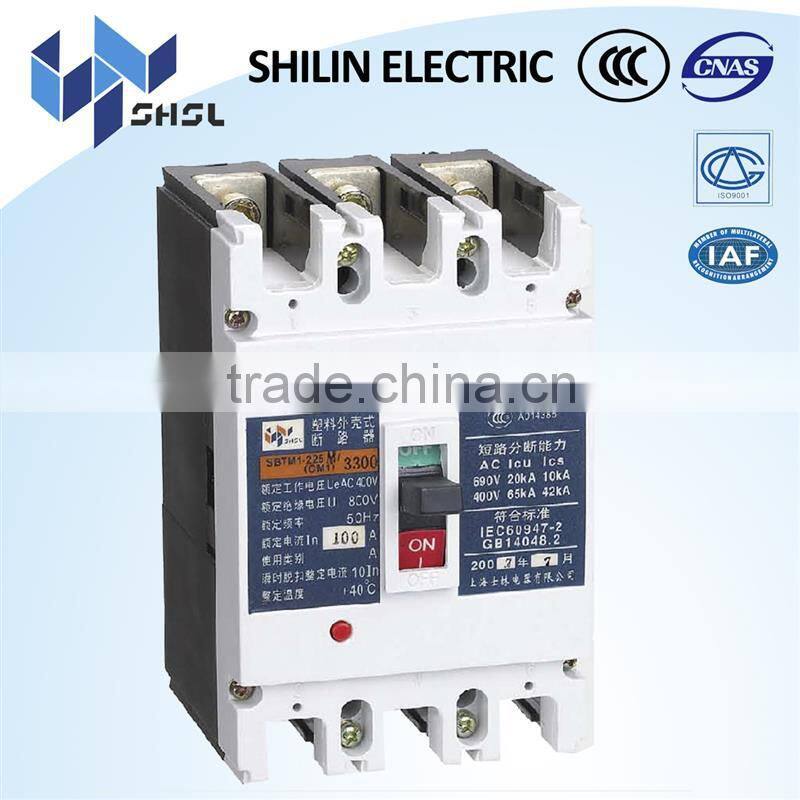

Mccb no Fuse Circuit Breaker

Mccb no Fuse Circuit Breaker thumbnail-1
Mccb no Fuse Circuit Breaker photo-1
US$ 0.8 - 5 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
SHILIN
Model Number:
SBTM1
Contact Supplier Request Quote Chat Now
Shanghai Boosan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI Ningbo Zhoushan port Tianjin Tangshan Guangzhou Suzhou Qingdao Rizhao Qinghuang ISLAND Yantai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name SHILIN
Model Number SBTM1
Type Other, Magnetic, Moulded Case
Poles Number 3
mccb no fuse circuit breaker
Product Description

Description

They are suitable for short circuit and overload protection in circuit of AC690V 50/60Hz, rated current from 12.5A to 630A. Its rated operating voltage is 690V. It can make and break the unfrequent circuit under normal conditions. It takes protective effect when squirell-cage motors
unfrequently start, making&breaking and protecting against overload, short circuit and lacking voltage.



Parameters

Type Shell frame level Rated
  current(A) 		Rated current(A) Rated voltage(V)  I solation   voltage(V) Ultimate
  breaking capacity (Ka)

    400V 		Rated
  Breaking Capacity (kA)

    400V 		Dimensions Installation
  demensions
L W H A B 4-Φd
3P/4P
SBTM1-63L 63 10,16,20,25,32,40,50,63 AC400V 500V 25 18 135 78 73.5 25 117 Φ3.5
SBTM1-63M 50 35 135 78/103 84.5
SBTM1-100L 100 16,20,25,32,40,50,63,80,100 AC400V 690V 35 18 150 92 68 30 129 Φ4.5
SBTM1-100M 50 35 150 92/122 86
SBTM1-100H 85 50
SBTM1-250L 250 100, 125, 140, 160,180, 200, 225, 250 AC400V 690V 35 18 165 107 86 35 126 Φ4.5
SBTM1-250M 50 35 165 107/142 103
SBTM1-250H 85 50
SBTM1-400L 400 250,315,350,400 AC400V 690V 50 35 257 150/198 105 44 194 Φ7
SBTM1-400M 65 45 257 150/198 105 44 194 Φ7
SBTM1-630L 630 400,500,630 AC400V 690V 50 - - - - - - -
SBTM1-630M 65 - - - - - - -
SBTM1-800L 800 630,700,80 AC400V 690V 75 - - - - - - -
SBTM1-800M 100 - - - - - - -
SBTM1-1250 1250 1250 AC400V 690V 75 - - - - - - -
SBTM1-1600 1600 1600 AC400V 690V 100 - - - - - - -


Application

1) Moulded Case Circuit Breakers Frequency AC 50Hz /60Hz, rated voltage up to 690V,   rated working current up to 630A.

2)  Used for infrequently switch and starting of motor and for motor overload, short circuit and under-voltage  protections.

3)  Small volume, high breaking capacity, short over-arcing (some of specification is zeroarcing), strong anti-vibration

4)  In accordance with the ultimate short circuit breaking capacity classified into four types: Type C (basic),Type L (standard),

      Type M (middle), Type H (high).

Product Pictures

  mccb no fuse circuit breaker

Company Information
  mccb no fuse circuit breaker
  mccb no fuse circuit breaker

mccb no fuse circuit breaker mp;amp;amp;amp;amp;lt;img src="/kf/HTB1u_IXIpXXXXXnXVXXq6xXFXXXh/223452591/HTB1u_IXIpXXXXXnXVXXq6xXFXXXh.jpg" alt="honor.jpg"&
Payment

mccb no fuse circuit breaker

Shipment

mccb no fuse circuit breaker

Our Service

24 hours o nline service .

Inquiries will be replied in 2 hours.

One year warranty for all products.

Engineer field-service supported if needed.

1%-2%Spare Parts prepared .

FAQ

How can I get a sample to check your quality?

After price confirmation, you can require for samples to check our quality.



What about the lead time for mass production?

 About 7-15days depends on your quantity.



What is your terms of delivery?

We accept FOB,CIF,etc. You can choose the one which is the most convinent or cost effective for you.



Do you have inspection procedures for products?

100% self-inspection before packing



 Can I have a visit to your factory before the order?

 Welcome!  My Shanghai factory address:  1830 East Wang Wei Road Fengjing Industrial Park Jinshan District,Shanghai,CN
