Specifications
Prefab Villa used for living1.light weight, high strength
2.Easy to assemble and maintain
3.fire-resistance, water proof
Cheap and Good Quality Prefab Villa
GUANGXI WEIGUAN MODULAR HOUSE CO.LTD
The registered capital of our company is RMB 2million , and the total investment is RMB10million , we own more than 15000 meters for our factory area , and the the annual production capacity has exceeded 500000 square meters .
Housing size
customized, according to your requirements.
House specifications
1.Door:aluminium alloy door, security door or glass door.
2.Window:PVC sliding window
3.External wall panel:EPS sandwich panel
4.Roof material: EPS sandwich roof panel
Advantage:
Safe, utility and firm, easy to assemble disassemble, easy to transport, economy and comfortable&Environmental.
Trait:
1. Earthquake Resistant
prefabricated house is using C shape steel as its structure; the sandwich panel is assembled on it. It creates a very strong “Panel Rib Structure System” which has a much stronger earthquake resistant structure.
2. Wind Resistant
prefabricated house has a lighter weight, but it has excellent rigidity/deformation ability and bears high strength. Comparing to the brick house, the same size house only has its 10% weight. It can resist 10 Grade wind.
3. Strength Bearing Capacity
To have a better strength bearing capacity, a special work has been done on the prefabricated house wall and the roof. The bearing capacity is 150kg per square meter.
4. Durability
The sandwich panel is the main material of our prefabricated house . The best steel pillar has been used to avoid rusty issue, and it enhances the house life span.
5. Heat Insulation
The prefabricated house wall and roof panels are all used the heat insulating material. The heat preservation function of our 50cm thickness wall is good enough. If you need extra protection, we can offer you 75mm sandwich panels too.
6. Environmental Protection
All the material is recyclable which protects our environment. Our national railway project choose our prefabricated house.
7. Convenience
The prefabricated house can be easily assembled and disassembled, and it can not be influenced by the season and the environmental change.
8. Shipping
Every prefabricated house is packed; it is very easy to ship on the way.
9. Low cost
Our prefabricated house can help you reduce much labor and material costs because of its short construction period and materials at competitive
| Main Material List As Bellow | ||||||
| Post/Column | 80×80×2.5 square steel | |||||
| main beam | 100×50*2.0mm flat steel | |||||
| Ring beam | 60×40×2.0 flat steel | |||||
| Roof purlin | 60×40×2.0 flat steel | |||||
| Roof tile | 50MM corrugated tile | |||||
| External wall | 75mm EPS fire-proof sandwich panel(the two side are galvanized color steel sheet,thickness is 0.326mm) | |||||
| Internal wall | 75mm EPS fire-proof sandwich panel(the two side are galvanized color steel sheet,thickness is 0.326mm) | |||||
| Door | 75mm EPS fire-proof sandwich panel(the two side are galvanized color steel sheet,thickness is 0.326mm) | |||||
| class wall/swinging door | plastic steel ,1.2MM thickness | |||||
| galvanizing channel | 2720×50×30(galvanizedchannel) | |||||
Pictures:

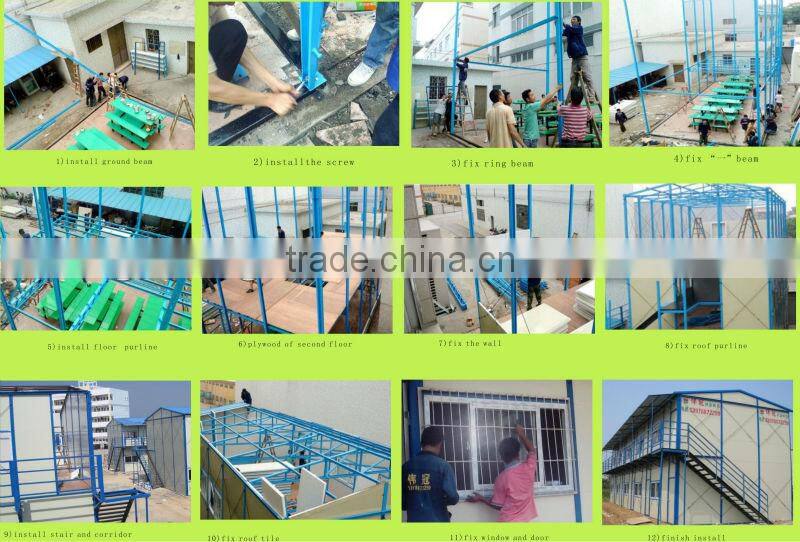

install step as below:
