Home > Products > Seed Cleaning Engineering > 5X-5 High efficiency industrial cleaning machine
5X-5 High efficiency industrial cleaning machine
- 20 Unit / Units per Month
- Shanghai/Qingdao/Tianjin
- T/T Credit Card
Product Details
Type: | blower type | Use: | Seed cleaning processing | Certification: | ISO9001,TUV,SGS,CE |
Place of Origin: | Henan, China | Brand Name: | JINGU | Model Number: | 5X-5 |
Condition: | New | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
5X-5 High efficiency Cimbria Delta type seed cleaner
1. Multilayer sieves is equipped in opposition, good impurity cleaning performance.
2. Positive--negative pressure wind systems, twice impurity remove good efficiency remove light impurity and bad seeds.
3. Upper and lower sieve could be exchanged flexibly due to processing requirement.
4. Upper and lower sieve box is equipped in opposition, good self balance performance.
5. Main machine adopt fine quality wooden parts, good seal and vibration absorption, low noise.
6. Widely adjustable range realizes fine cleaning process easily.
7. Adopt steel frame rubber ball sieve device, good cleaning performance.
8. Equip safety guard for each moving parts to ensure good safety protection.
9. Symmetric design could satisfy discharge system exchange left and right.
10. Overall box-type structure could reduce dust content in workshop.
Photos of Seed Cleaner:
Main Parameter of seed cleaner:
Model | 5X-5 | 5X-12 |
Dimension(L×W×H) | 3200×1920×3600 mm | 3790×1940×4060 mm |
Overall weight | 3250 kg | 3600 kg |
Rated capacity | 5 t/h | 10 t/h |
Overall air volume | 8200 m3 | 12520 m3 |
External air blower | 4-72N0-6A, 7.5 kW | 4-79N0-6A, 11 kw |
Vibration sieve motor(gear motor) | 2.2 kW | 2.2 kW |
Back lifting system motor | 3.0 kW | 3.0 kW |
Feeding motor | 1.5 kW | 1.5 kw |
Total Power | 6.7 kW | 6.7 kw |
Air Blower Type | centrifuge air blower | |
Top air blower Rotary speed | 4-79NO6A,1400 r/min | |
Back lifting air blower Rotary speed | 100~1000 r/min | |
Screen Type | piercing screen | |
Screen Dimension (L×W) | 800×1250 mm | |
Frequency | 300(80~400) times/min | |
Amplitude | 30 mm | |
Layers and number | 4 layers,7 pieces | 5 layers,15 pieces |
Screen number and type | ||
level 1 | 1 piece round hole | 3 pieces slot hole |
level 2 | 2 pieces slot hole | 3 pieces slot hole |
level 3 | 2 pieces slot hole | 3 pieces slot hole |
level 4 | 2 pieces slot hole | 3 pieces slot hole |
level 5 | null | 3 pieces slot hole |
The Principle of Seed Cleaning Processing:

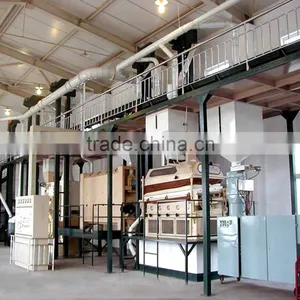

Working Site:
1. Outside Package: standard packing export sea transportation,
2. Inner Package: air bubble film Shipping: by sea
Q: Guarantee and after-sales service?
A:
- One year guarantee for whole machine
- 24 hours technical support by email
- Calling or door to door service
Q:What is different between combined seed cleaner and fine seed cleaner?
A:
- Fine seed cleaner realize 99% high efficiency cleaning for kinds of seed.
- Enviromental protection is important sector by our equipment. Our equipment complete with dedusting system.
- Noise control to keep low noise
- Energy saving solution to whole seed cleaning system.
- C/W air circulation system
- The key point advantage is fine seed cleaner suit for large-scale industrial production for seed.
- Our customer could occupy the seed market more easily depend on good quality fine seed.
