Modular House, Accommodation, Construction Site Labour Camp, Temporary Office
- 500000 Meter / Meters per Month
- Fangcheng Port
- Integrated housing for outdoor residents
- Folding container house/integrated room/ 3000*2460*2510/mm
- Container house
- Container house
- Modular, steel structure plate, container assembly house, two-wing folding house, expansion house, movable board house.
- Apple Luxury House Cabin Outdoor Modern Popular Prefab House Mobile Working House Office Casa Capsula
Product Details
Place of Origin: | Guangxi, China | Brand Name: | WG | Model Number: | L663 |
Material: | Other, EPS sandwich panel + light steel | Use: | Carport, House, Other, Office, Shop, Toilet, Villa, Warehouse, Carport, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Warehouse, Workshop,Plant |
Product Description
Modular House, Accommodation, Construction Site Labour Camp, Temporary Office

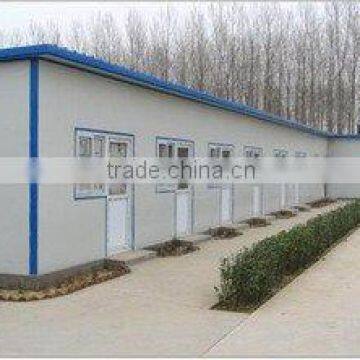

Picture:
trait point:
1.used in building site, low cost, easy installation, reusable.
2.used in building site and can be reused in lots of projects, which is very economical.
3.used for accommodation, office, control center, canteen and so on.
4.The low-cost, easy assemble and disassemble, reusable are the most outstanding advantages of this house.
5.We can design the style according to your different requirements and the building site weathers. It's fireproof, waterproof, quakeproof and heatproof.
6. The partition of the wall is depend on you, we can design what partition you want.
7.Excellent in the feature of typhoon and earquakproofing grade is 8 grades, and the earthquake proofing grade is 7 grades.
8.The using life is around 10-15 years.Environmental protection and economy.
9.Each worker can assemble 20~30 square meters every day. 6 worker can finish 300sqm prefab house in 2 days.
10.Loading: 320 square meters can be loaded in one 40 feet shipping container.
This is build we did for China Railway Group as office at project site.
main material list as bellow
Post/Column | first floor:140×80mm H steel; second floor:80×80×2.0 square steel | |||||
main beam | 100×50*2.0mm flat steel | |||||
Ring beam | 60×40×2.0 flat steel | |||||
Roof purlin | 60×40×2.0 flat steel | |||||
purlin | 100*40*2.0 C# steel | |||||
steel stairway | standard 16#C steel consture stairway,3MM pattern steel for stair foot board | |||||
railing | L40*3.0,28square steel,35square steel,3MM pattern steel for stair foot board | |||||
floor slab | 2440*1220*15mm plywood | |||||
roof tile | 75mm corrugated tile | |||||
External wall | 50mm EPS sandwich panel(the two side are galvanized color steel sheet,thickness is 0.326mm) | |||||
Internal wall | 50mm EPS sandwich panel(the two side are galvanized color steel sheet,thickness is 0.326mm) | |||||
Door | 50mm wooden door; 50mm EPS sandwich panel(the two side is galvanized color steel sheet,thickness is 0.326mm) | |||||
Window | 1150*1000 plastic steel sliding window;4mm thickness glass | |||||
galvanizing channel | 2720×50×30(galvanizedchannel) | |||||
Aluminum CHANNEL(packing of door | 6000*50*23mm |
install step as below:
