Industrial steel building
Precast home/Modular home/Prefabricated house design/prefab accommodation/precast dormitory/modular home/ modular house building/prefabricated office/ modular office/ modular classroom/Prefabricated restaurant.
Advantage: Safe, Utility and Firm, Easy to assemble and disassemble, Easy to transport, Economy, Comfortable, Environmental.
Main material: 50/75MM EPS sandwich panels (rock wool, glass wool can be choose, panel thickness can be choice.) + light steel frame. (buyer need make concrete foundation).
Design: Design on your request.
Application:
1. Widely used in building site, such as road project, railway, real estate, bridge project, dam project, power station, and mining site and so on..
2. Widely used for factory.
3. Widely used for family house for low income house, dormitory, accommodation, apartment, kitchen and so on .
4. Widely used for temporary house, such as temporary hospital, temporary classroom, wild temporary houses etc.
5. Widely used for gas station.
6. Widely used for villa.
Technology date:
- 1. Wind against: 10-level wind
- 2. Static load: 0.20 KN /m2; Live load: 0.3 KN/m2
- 3. Basic wind pressure: 0.35 KN/m2
- 4. Earthquake intensity, Fortification intensity: 8 degrees for singly story
- 5. Damp proof & flame proof
- 6. Easy assemble, 2-3 persons can install about 100 square meter per day.
Assembly Period:
5 people in one team. The workers must accept training first.
100-150m2 can be finished installation per sunny day.
Material list as below:
| T style modular home/prefab house design/precast house | ||
| Steel frame/structure | Column | 1 floor columns:140x70mm H-beam 2 floor columns: 80x80x2.0mm square steel |
| A beam | 140x70mm H beam | |
| Herringbone beam(for double slope roof) | C80x40x1.9 | |
| Main beam( for single slope roof) | flat steel 80×40×2.0 or 100x50x2.0 or 120x60x2.0 as per house size | |
| Ring beam | 60x40x2.0mm flat steel | |
| Roof purlin | 60x40x2.0mm flat steel | |
| Floor purline | 100×40×2.0 C# steel | |
| Horizontal support | L50×3.0 mm | |
| Roof panel | Roof tile | 50mm EPS color steel sandwich panel/rock wool/glass wool |
| Wall panel | External/internal wall | 50mm EPS color steel sandwich panel/rock wool/glass wool |
| Accessory | Door | 40mm EPS sandwich panel/rock wool/glass wool |
| Window | PVC steel sliding window(115cmx100cm) ,the thickness of glass is 0.4cm | |
| Floor | plywood floor,15mm thickness(second floor use) | |
| nails, bolts, screws, glass cements | ||
| Service life: 10years-15years | ||
| Static load: 0.20 KN /m2 ; Live load : 0.3 KN/m2 | ||
| Basic wind pressure: 0.35 KN /m2 | ||
| Earthquake intensity, Fortification intensity: 8 degrees for single story | ||

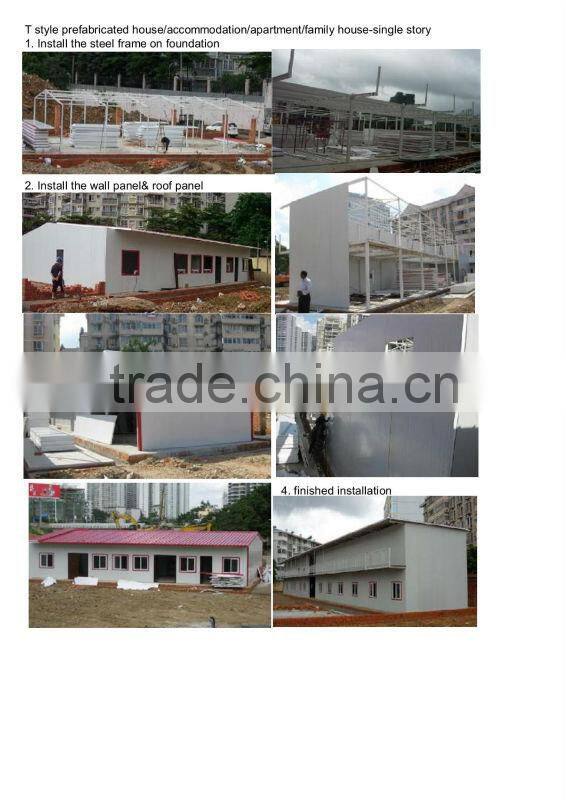

Install step as below:
