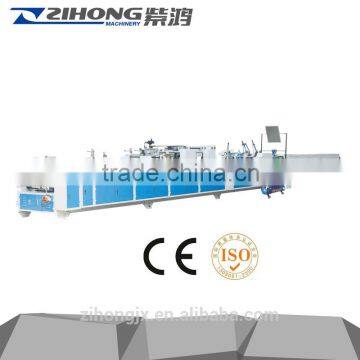

ZH-1050AC full-auto simple paper box resonable price gluing folding machine

ZH-1050AC full-auto simple paper box resonable price  gluing folding machine

 Introduction

ZH-780AC is a multi function model,suitable for card board,EBA flute corrugated board.This model has correction device and two fold  device.Can make electrical adjusting .Has UV destroying device and dust removing device for better gluing effect.

 Characters

1.Driving by synchronous belt,ensure smooth and accurate running

2.Inverter driving,stable and power saving

3.Use tooth bar adjust(for higher configuration use electric adjust),easy operate

4.Automatic continuous feeding,use multiple belt with vibrating motor,(for higher configuration use drilled

suction belt),to keep the feeding stable.

5.Special three plate prefolding as optional

6.Two upper glue device and two lower glue device ,for different kind gluing.

7.Automatic counting and kicking ,quantity can preset.

8.Conveyer pressure adjustable according to the box to ensure best quality

Technical Parmeters

Machine Configuration:

1)Main motor:TECO Taiwan

2)Inverter:Siemens

3)Timing belt and pulley:Optibelt German

4)Bearing:NSK

5)Main axis:Taiwan chrome plated steel bar

6)Wall thickness:20mm tempered

7)Feeding belt:Habasit Switcherland

8)Transfer belt:Habasit Japan

9)Plain belt:NITTA Japan

10)Low voltage apparatus:Omron/Fuji

11)Fasten bolts:Level 12.9 Taiwan

Feeder Section:

Equipped with vibrating motor.

With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.

Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.

Feeding knifes are equipped with pnematic mechanism for smoother feeding.

Paper Alignment System:

Automatic alignment system to correct the paper feeding,avoiding the paper going to sides.

UV destroying device and dust remove device for better gluing effect.

Bottom Lock Section

Big-volume design,when the machine is running at high speed,the glue will not go out or leaking .Optional

bottle is good for long time operation.

Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

Folding Section

Equipped with speed variator for belts,ensure the folded boxes parallel and in good order

Fast,convenient adjustment and operation can fold boxes perfectly

The middle up and down transmission module can fold boxes synchronously or alternately

Trombone Section

Pressure can be adjusted according to the paper thickness.For flute A,B corrugated board,overlapping and jogger devices are equipped to ensure box gluing well.

After kicker is set up,whatever speed the machine runs ,the kicker can automatically follow,no need to reset it.

 Cardboard box sample

About Factory

Warranty Service:

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date. During

this period, the seller will   offer free maintenance and free spare parts that caused by the machine’s quality,

but the buyer must pay the courier cost. Parts damaged because of mishandling and consumable parts are not

covered by any warranty.
