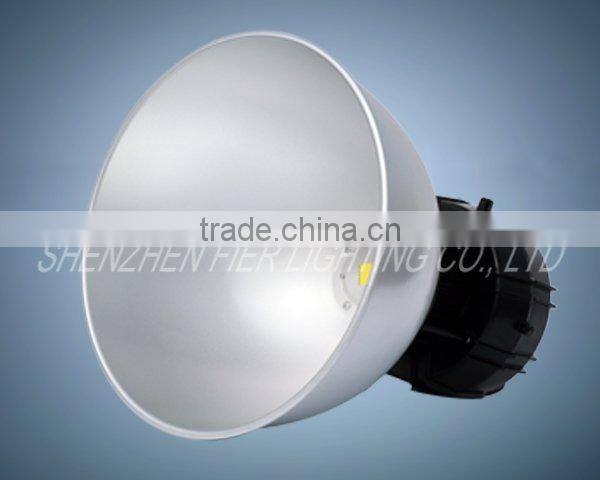

Campana Industrial 100w

Specifications

We are manufacturer which specialize in producing LED high bay light,LED  industrial  light, LED factory lamp,LED commercial light

Model: FEI102

Features:

1.Input Voltage: AC85V~265V
2.Freqency Range: 50Hz~60Hz

3.LED Working Voltage: 30-36Vdc
4.LED Quantity:1PC
5.LED Consumption:47W
6.System Consumption:58W
7.LED Efficiency:60-100LM/W
8.Initial Flux: WW/3,230LM;NW/3,400LM;CW/3,260LM

9.IP Rating:IP65
10.Working Life Span: 50,000Hours
11.Connect Wire: Brown/L;Blue/N;Yellow, Green/G

12.Housing Color of Lamp Head: Black/ Silver (optional)

Color Temperature: WW/2,700-3,900K;NW/3,900-6,000K;CW/6,000-7,000K

Data:

1. Total Harmonic Distortion:≤9%
2. Power Factor:>0.9
3. Height:Average Illuminance

3M: 259 Lux

6M: 94 Lux

9M: 47 Lux

4. Illuminance Area (Light Spot)(Round):

Height: 3M / Dia.6.18m
Height: 6M / Dia.11.97m
Height: 9M / Dia.17.76m

Illuminance Uniformity:>0.7

Luminaire Efficiency:>75%

5.Juction Temperature: ≤80 Celsius degree

6.Operation Temperature: -40 ~ +55 Celsius degree

7.Storage Temperature: -25 ~ +55 Celsius degree (25 Celsius degree is best-fit)

8.Color Rendering Index: WW/Ra>68; NW/Ra>75; CW/Ra>75

9.Power Line: 0.75mm three-core cable

Material:

1. Light Source: Integrated LED
2. The chips are all internationally renowed brands
3. Light body:high quality aluminum body
4. Light distribution uses reflector processed by Aluminum CNC Machines.

Advatages:

1. Design/Engineering Simplicity
2. High-energy efficiency
3. Good heatabstractor
4. Gentle for eyesight when working
5. Long Life Span
6. Low Power Consumption
7. Pure color,no pollution,environment protected
8. High Quality,competive price
9. Prompt Services,etc.

Applications:buildings,factories,warehouses,large supermarkets,exhibition halls,stadiums,squares,docks and so on.

    If you have any interests in it or need more details,please don't hesitate to contact us.
