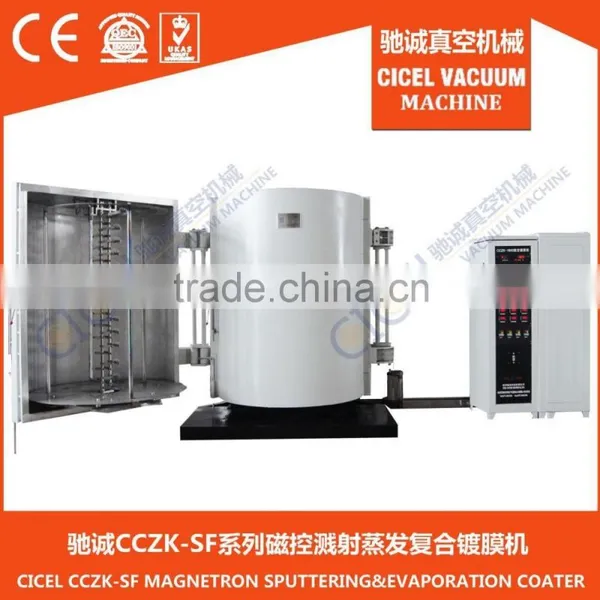

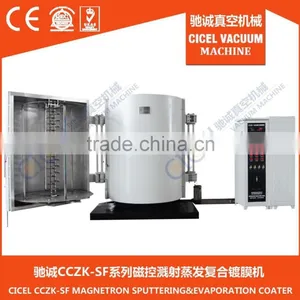

CCZK Magnetron Sputtering Metalize Vacuum Coating Machine

Name: CCZK Magnetron Sputtering Metalize Vacuum Coating Machine
Brand: CICEL VACUUM
SKU: 105956591
Availability: InStock

US$ 50,000 - 150,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Coating Production Line

Substrate:

Aluminum

Wenzhou Cicel Vacuum Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Coating Production Line

Substrate Aluminum

Coating Vacuum Coating

Place of Origin Zhejiang, China

Brand Name CICEL VACUUM

Model Number customer made

Voltage 380V or customer made

Power(W) customer made

Dimension(L*W*H) customer made

Weight 10 TONS

Certification CE

Warranty 1 years

After-sales Service Provided Engineers available to service machinery overseas

1.Contact details

contact person:Rosa chen

Company Name:CICEL VACUUM COATING MACHINE CO.,LTD

ADD:Road2,Binhai Industrial park,Longwan district,Wenzhou city,Zhejiang province, 325000,China

Tel:0577-86739805 13857737962

Fax:56615100

2.Specification

Part name		Specification
Vacuum chamber		ø1600mm×H1800mm SUS304 vertical with double doors
Lining board		0.6mm, SUS304
Rotation system of workpiece		Frequency regulation
Magnetron sputtering target		Stainless steel(L=1950mm)
Sputtering Power Supply		50kw
Gas Flow meter		D07-7C Series
Flow Control Instrument		D07-7C Series
Vacuum gauge		ZDF-5227
valve	Main valve	GDQ-900
	Rough valve	GDQ-200
	Front valve	GDQ-200
Vacuum System	Diffusion pump	KT-900
	Mechanical pump	H-150
	Roots pump	ZJY-1200A
	Holding pump	2X-30
Intelligent program		PLC controlled+HMI
Electric element		Standard equipment
Man-machine interaction		Color touch screen
Pump speed		5×10-²pa≤4mins
Ultimate vacuum		5×10-4pa
