Specifications
education equipment: visualizer1.used in teaching training
2.High efficiency and energy saving
3.Simple control panel
For Professional manufacturer of education equipment Gaoke 9000 series visualizer document camera with 3d software lowes color
Welcome to use Visual Presenter
Visual presenter is a device that captures images by a video camera mounted vertically on a base. The video image is then converted to an electronic signal that can be transmitted to other equipments such as projector, largescreen projection television,common television, LCD monitors, etc.
It is designed for users to display terminal on the demonstration in kind, text, picture and the development of the technical
and design products.Before using presenter, please read the manual carefully and properly keep it as areference for future use.
Packing detail list

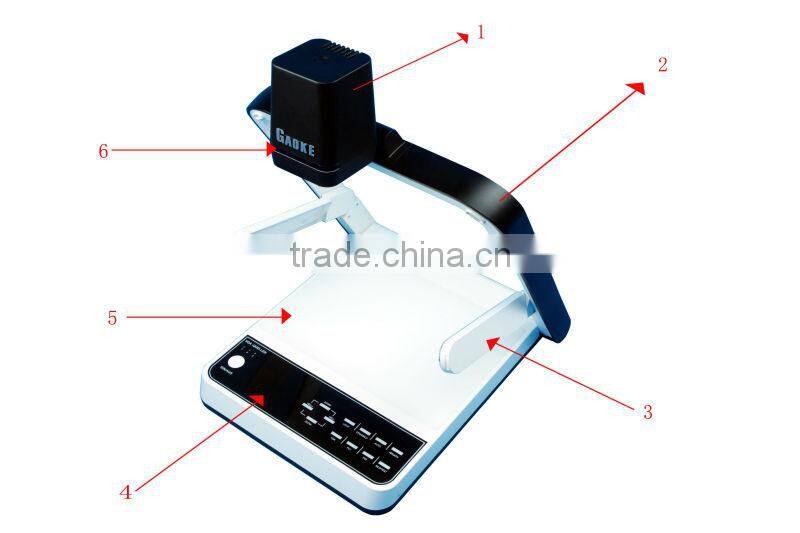

Components
1. Camera
2. Len slide pole
3. Arm Lamps
4. Control Panel
5. Demo Table-board
6. IR receive window

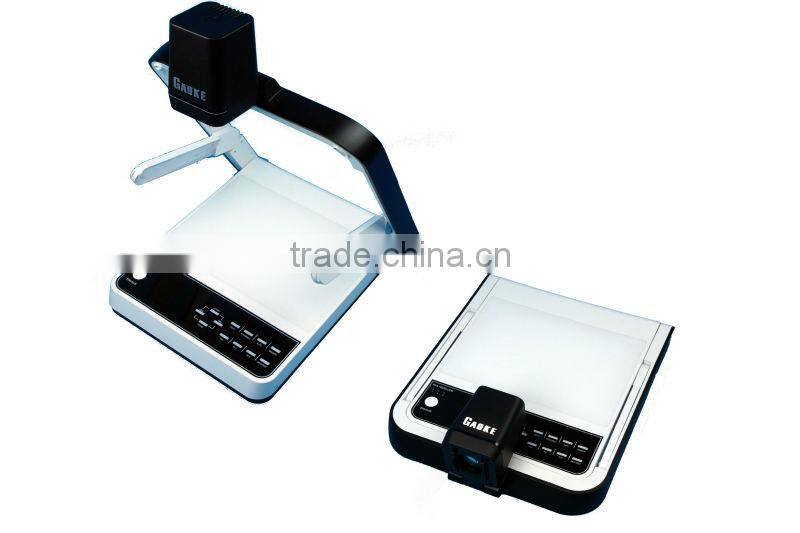

Products Appearance
Products Parameter
(1) Input Port:
VGA x 2, AV x 1, MIC x 1 (Optional)
(2) Output Port:
VGA x 2, AV x 1
(3) Control port
USB x 1 (Optional), RS232 x 1 (Optional), SD socket x 1(Optional), LCD x 1 (Optional)
Parameter:
Model |
GK-9000V-II |
Image Sensor |
1/3 Inch Digital Image Sensor |
Total Pixel |
3.2 Mega Pixels |
TV lines |
800 Line |
Resolution |
XGA,720P,SXGA |
Zoom |
10×Optical Zoom,10×Digital Zoom |
FPS |
(30fps @640*480)(20fps @1024*768) |
Video Focus |
Auto |
White Balance |
Auto |
Image Effects |
Freeze/Mirror Image,Positive/Negative |
USB Output |
USB 2.0 |
Input |
VGA x2 VIDEO*1 |
Output |
VGA x2 AUDIO*1 VIDEO*1 RS232 |
Operations Method |
Slightly touch the board, Remote Controller |
Power supply |
12V DC power adapter |
Working temperature |
-15°C-40°C |
Weight |
N.W:3.5KG G.W:5KG |
Dimension |
450*375*630mm(Open) |
Certification |
CE/FCC /ROHS/ISO 9001 /ISO 14001 |
Function |
Brightness adjustment |
Color adjustment | |
Image capture/freeze/split | |
Auto white balance | |
Positive/Negative conversion | |
>200 Image storage | |
English OSD | |
USB Output | |
Optional |
3.5” LCD screen |
Card reader | |
MIC and 1-4 audio input added | |
1080P HDMI Output |
Company Profile:
Founded in 1990, Gaoke Industry & Trade Co.,Ltd is located in Hangzhou city, Zhejiang Province, China. Gaoke mainly specialize in the manufacture and export of office electronic products and educational equipment. Our main products include document camera, interactive white board, projectors. Nowadays, Gaoke has formed full service system integrating R&D, design, production and sales.
Gaoke is equipped with a complete set of production facilities and has good team of qualified engineers and marketing staff. With a well-equipped research center and advanced automatic production line in dust-free workshop, Gaoke has passed many certificates for quality guarantee, such as CE,FCC ,ROHS and ISO 9001:2008.
