Specifications
electrostatic painting line1.Certified ISO9001
2.Nice after-sales service
3.Strong technology support
4.warranty:1year
What's the deatils of our CCZK-50M spray line
1.Fast deposition speed and high production effiency ,coated film with excellent brightness and well adhesion.
2.Intelligent automatic control, easy to operate the machine without any experience.
3.Environment friendly ,no waste water and gas.
4.Manufacturing by CICEL latest technology,also approved CE and ISO international quality management system certification.
specification of our CCZK-50M spray line
| Parts name | Specification | quantity |
| Transmission chain | 50m | 1 set |
| Rotor jigs | 51m | 984set |
| Main drought fan | 7.5kw | 1 set |
| DE-DUST drought fan | 2.2KW | 1set |
| UV BOOTH drought fan | 2.2KW | 1set |
| Spray drought fan | 5.5kw | 1set |
| AIR Filter |
High efficiency particular air filter (HEAP) |
1set |
| Cooling fan | 2.2kw | 1set |
| Revplution motor | 2.2kw | 1set |
| Rotation motor | 0.55kw | 1set |

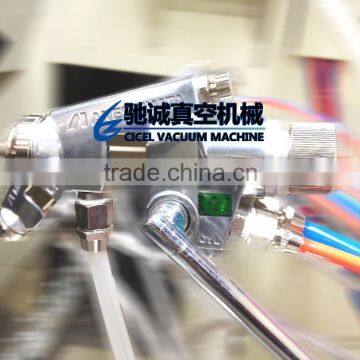

| Spray gun | WA101 SWATA,1.5mm | 8set |
| IR heaters | 1kw×15sets | 15set |
| UV light | 5kw | 6set |
| PLC | FX3U-64MR(MITSUBISHI) | 1set |
| HMI | 10.4 inch touch screen | 1set |
| Frequency converter | 1.5kw | 3set |
| Main frenquency converter | 3.7kw | 1set |
| Air supply frenquency converter | 7.5kw | 1set |
Automatic Plastic Painting Plant:
V=3~25m/min.GAP=38.1mm,44.5mm
1.General flow of the coating line: Loading-electrostatic dedust-flame(optional)-electrostatic dedust(optional)-spraying-IR-spray(optional)-IR(optional)-UV curing-cooling(optional)unloading
2 Main Components: Electrostatic Dedusting Booth Spray Booth - Air Shower - Fresh Air System/Air Suction Unit (AC Drive) - Clean Room - Conveyor System (AC Drive) - IR Oven - UV oven - Paint Kitchen - Central Water Supply System (optional) - Waste Gas Treatment (optional) - Epoxy Floor - Electrical Control Panel - Air Compressor - Fire Fighting System
Automatic Plastic Painting Plant
1.automatic plastic UV painting plant
2. PLC control panel
3 .Air handling unit for fresh air to oven, spray booth, dedusting booth and complete paint shop area.
4. thermal coat / sandwich panel for the plant 8. 1.2mm-1.5-2.0mm SS sheet
5.main electronic parts from Germany, Japan & Taiwan

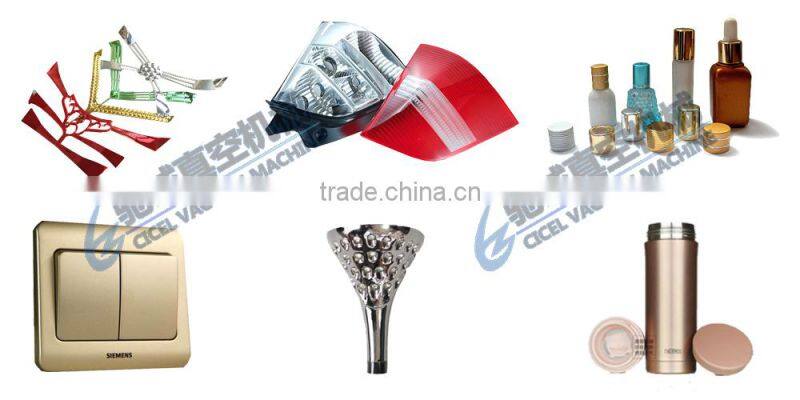

6.used for various Plastic Parts, Automobile Parts, Injection Moulded Plastic Parts.

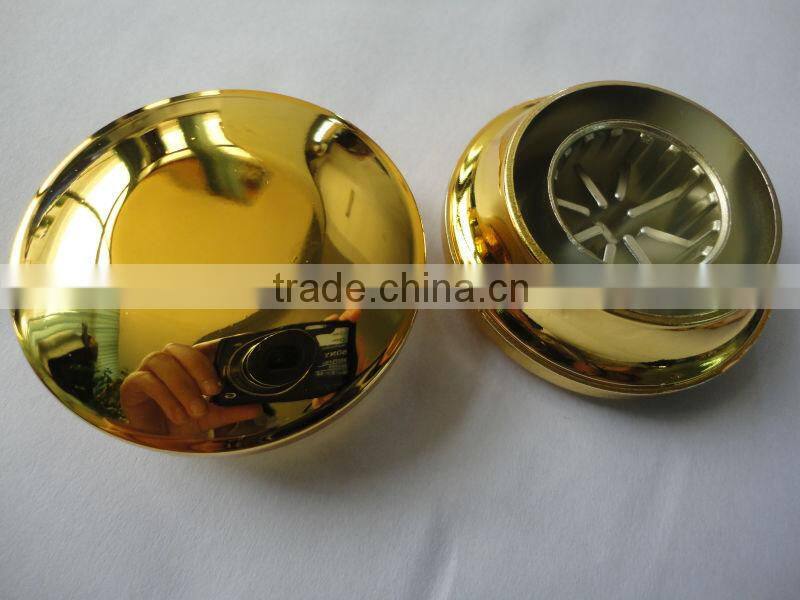

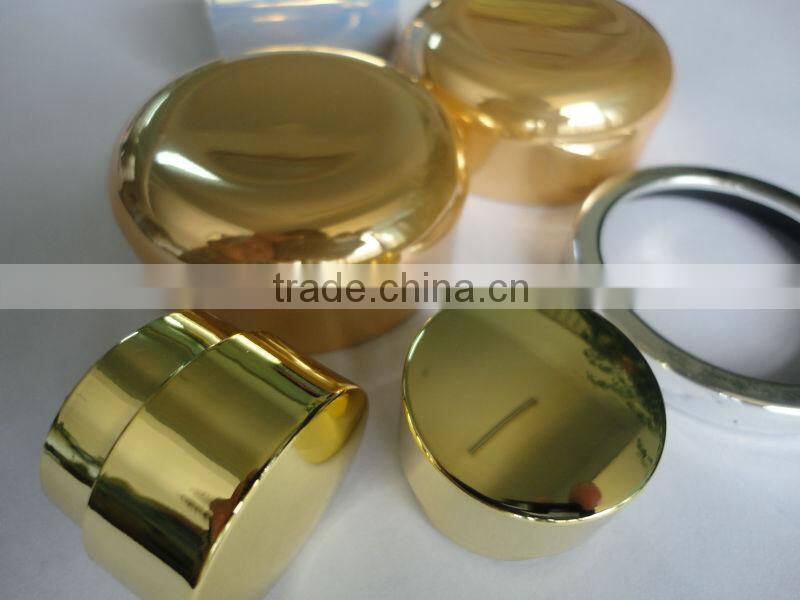

sample photos
Why choose us?
1.we are the alibaba Assessed 1year Gold supplier.
2.We are the a factury manufacturing vacuum coating machine ,best product capability,best quality control , best service.
3.Inspected by the inspection institution of bureau veritas certification.
4.100%QC inspection before shippment.
5.CE/ISO listed ,competitive price.
Company information
WENZHOU CICEL VACUUM MACHINERY CO.,LTD. is located binhai park in zhejiang wenzhou ,it is a professional enterprise of wenzhou large equipment R&D production,marketing and customer service as one of the company management, most of the staff have many years of production management experience and technology of vacuum.assembly personnel with rich experience in production technology.
The company's main products are:high performance evaporation vacuum coating machine equipment, magnetron supttering coating line,multi-arc ion plating equipment,magnetron supttering vacuum coating machine,the glass vacuum coating machine,optical coating equipment,light protective film professional vacuum coating equipment,the UV line automatic spraying line.
Clients of the company has covered all over the world,the main international trade in central Asia,Turkey,India,and so on.
certification
