Automatic Ultrasonic Cleaning Machine

Automatic Ultrasonic Cleaning Machine photo-1
US$ 80,550 - 80,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Voltage:
380v
Place of Origin:
Zhejiang, China
Brand Name:
CICEL
Payment & Shipping
Payment Methods:
Port of Shipment:
sahnghai
Delivery Detail:
Delivery time depends on order quantity.
Voltage 380v
Place of Origin Zhejiang, China
Brand Name CICEL
Model Number CZ-UV50A
Dimension(L*W*H) 50000mm*1500mm*1000mm
Weight 4t
Certification CE
After-sales Service Provided Engineers available to service machinery overseas
Condition New

Specifications

pvd vacuum coaters
1,good abrasion resistance
2,Easy to operate
3,Nice after-service support
4,environment-protect

automatic ultrasonic cleaning machineautomatic ultrasonic cleaning machineautomatic ultrasonic cleaning machineSUMMARY

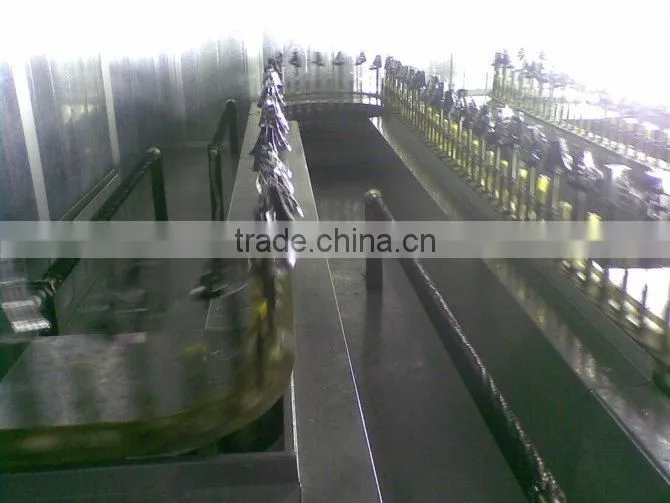

CZ-UV50A spray line is widely used for coating kinds of plastics ,it can spray lots of colors,specially for auto lamp,high-end cosmetics,etc. This machine can realize dedusting booth ,painting booth ,IR leveling booth,UV curing booth and cooling all in just one line. CZ-UV90A integrates HMI ,PLC, Automatic spray gun and advanced control system.





2.SPRAY PROCESS

1)Primer painting: load panels on line—electrostatic cleaning—UV base painting—IR leveling preheating—UV curing—cooling—off line



2)Vacuum coating: load panels in CZ-1800EL vacuum machine—metalizing—unload products



3)Top painting: load panels on line—electrostatic cleaning—top painting—IR leveling preheating—UV curing—cooling—unload panels (made-up articles)



3. CZ-UV50A main configuration of line



      PARTS NAME

       Specification

Quantity

Transmission chain

50m

1set

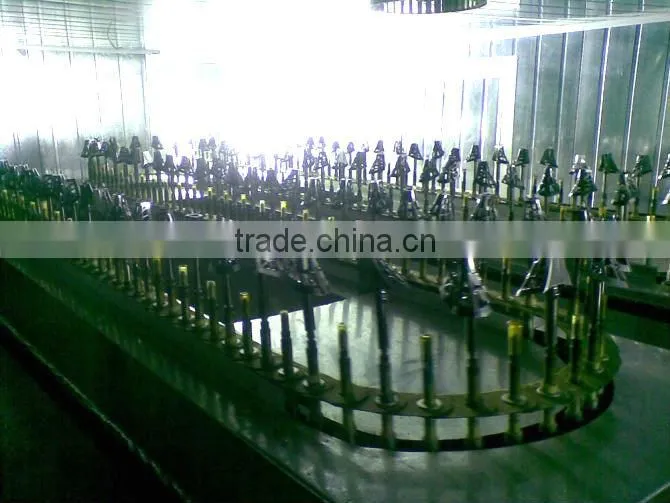

Rotor jigs

 50.8mm

    984set

Main draught fan

7.5KW

1SET

DE-DUST draught fan

2.2KW

1SET

UV BOOTH draught fan

2.2KW

1SET

Spray draught fan

5.5KW

1SET

AIR filter

High efficiency particulate air filter

       (HEPA)

1SET

Cooling FAN

2.2KW

1SET

Revolution  motor

       2.2KW

1SET

Rotation   motor

 0.55KW

3SET

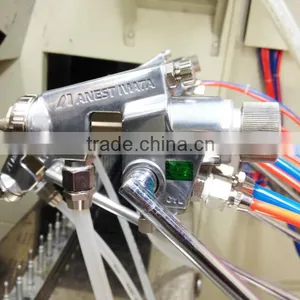

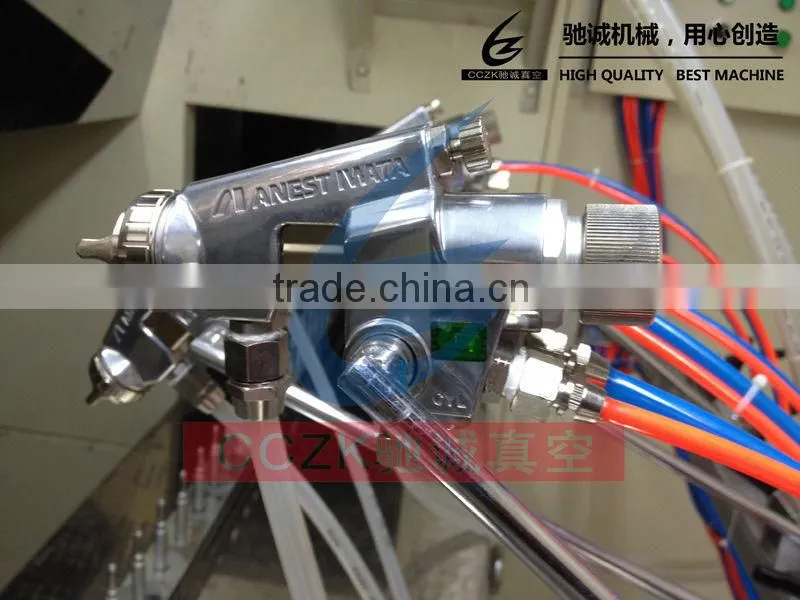

Spray gun

  WA101 SWATA,1.5mm

8SET

IR heaters

       1KW×15sets

15set

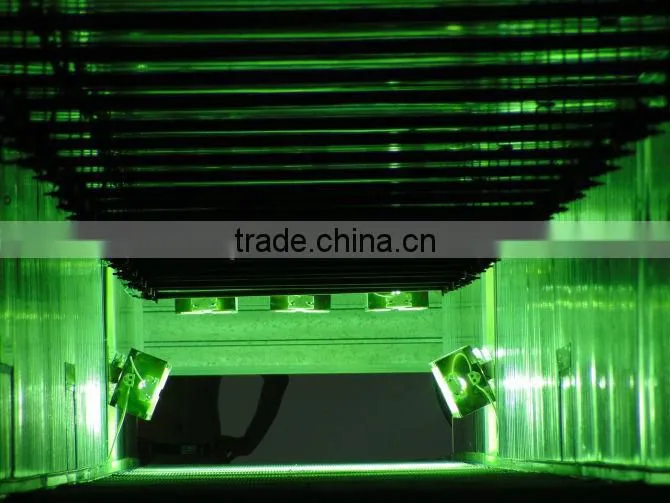

UV  light

    5KW×6SET

6SET

PLC

  FX3U-64MR(MITSUBISHI)

1SET

HMI

10.4inch touch screen

1SET

Frequency converter

 1.5kw

3SET

Main frequency converter

 3.7kw

1SET

 Air supply  frequency converter

  7.5kw

1SET
