Specifications
1.Certified ISO90012.Nice after-sales service
3.Strong technology support
4.Size can be customized
5.Warranty: 1 year
The process of shoes materials UV coating machine: pre-cleaning——oven drying——basepainting——vacuum metalizing——toppainting.
a. Effective use of space:

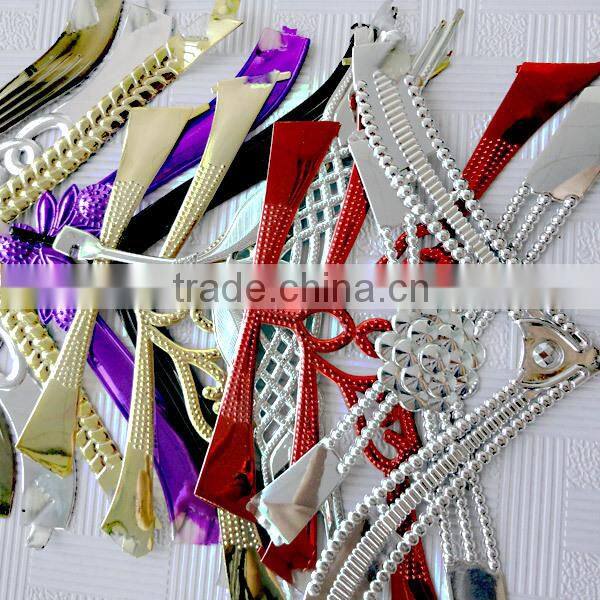

b. Workpiece name: Plastic products(BMC,PBT,PC,ABS)
c.Piece Material: ABS material or other plastic material
d.Design process speed: V = 1.5-2.5m/min
e.Adjust Range: V = 0.5-3.5m/min, adjustable
f.Workpiece rotation direction: flat conveyor
g.delivery forms: universal transport
h. Power Design:
Electrical parameters: three-phase AC 380V 50HZ (Power)
Single-phase AC 220V 50HZ (control)
2) Power control: frequency adjustment
3) The power design:(kw/h)
No. |
Device name |
Quantity |
Power |
Total power |
1 |
Driving motor |
1set |
0.75KW |
0.75KW |
2 |
CIR homogenize furnace |
1set |
12KW |
12KW |
3 |
UV light |
6sets |
5.0KW |
30KW |
4 |
UV oven inlet system |
1set |
2.2KW |
2.2KW |
5 |
UV oven vent system |
1set |
1.5KW |
1.5KW |

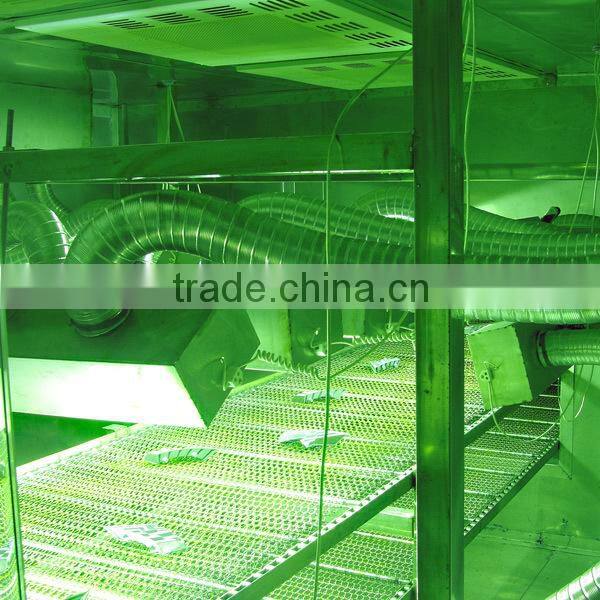

UV light--curing booth
Why choose us?
1.we are the alibaba Assessed 1year Gold supplier.
2.We are the a factury manufacturing vacuum coating machine ,best product capability,best quality control , best service.
3.Inspected by the inspection institution of bureau veritas certification.
4.100%QC inspection before shippment.
5.CE/ISO listed ,competitive price.
Company information
WENZHOU CICEL VACUUM MACHINERY CO.,LTD. is located binhai park in zhejiang wenzhou ,it is a professional enterprise of wenzhou large equipment R&D production,marketing and customer service as one of the company management, most of the staff have many years of production management experience and technology of vacuum.assembly personnel with rich experience in production technology.
The company's main products are:high performance evaporation vacuum coating machine equipment, magnetron supttering coating line,multi-arc ion plating equipment,magnetron supttering vacuum coating machine,the glass vacuum coating machine,optical coating equipment,light protective film professional vacuum coating equipment,the UV line automatic spraying line.
Clients of the company has covered all over the world,the main international trade in central Asia,Turkey,India,and so on.
