Help CenterLense and Mirror Optical Coater/optical AR Vacuum Coating Plant/PVD Vacuum Coating Machine
Related Products
-
Mirror Vacuum Coating MachineUS$ 60,000 - 200,000MOQ: 1 Set -
PVD Glass Decoration Coating MachineNegotiableMOQ: 1 Set
-
Solar Energy EquipmentUS$ 290,000 - 380,000MOQ: 2 Sets
-
Ceramic Production MachinesUS$ 290,000 - 380,000MOQ: 2 Sets
-
Beautiful Glasses Frames Coating MachineUS$ 290,000 - 380,000MOQ: 2 Sets
Specifications
1.Certified ISO90012.Nice after-sales service
3.Strong technology support
4.Size can be customized
5.Good quality
optical AR vacuum coating machine
Feature:
1350 optical thin-films deposition machines(electron gun) can coat anti-reflection film,reflective film,filter film,beam-splitting film,bandpass membrane,dielectric film,high reflectivity film,color reflection film and so on. The membrane system range from 0 to 99 layer.This machine has a wide range of applications for such field as auto reflective glass,telescope,spectacle lens,optical lens,luminescent cup and so on.If equipped with different evaporation source,electron gun, ionization source and film thickness gauge, It used for vapor deposition on the surface of metal,oxides,compound and other high melting point materials.It can also coat super hard film on the surface of glass.
application:
APS/ DSC / DSLR Camera Lens
PTV/ Liquid Crystal Projector Lens
Dichroic filter/ mirror
IR/ UV cut filter
DVD pick-up head and CCTV Lens
AR coating
Model |
CCZK-1300G optical coater |
Chamber size |
Φ1300x1350 |
fixture |
Arch-shaped 3 pieces of sector or single arch-shaped part |
Pumping time |
From atmosphere to 5.0x10-3Pa<15min (unloaded) |
Ultimate vacuum |
≤8x10-4Pa |
Evaporation source |
2 groups resistance evaporation, single power source, power: 5W |
E-beam,high pressure, adjustable, 6KV-10KV,power: 6KW | |
Ion source |
Kerr source,double filament,power: 2KW |
Film thickness controller |
MDC-360C crystal film thickness controller or SQC-310, 9704 optical film thickness controller |
Controlling system |
Crystal touching screen and PLC make up the fully automatic controlling system |
Inflation system |
One way mass flow controller |
Baking system |
350, PID thermostatic control,9KW |
configuration |
KT-600,ZJP-300, 2X-70 |
Total / average power |
35KW/25KW |
Used for |
Optical lens, glass products, ornaments, lamps,reflectors,plastic products |
Remark |
Can be designed according to customers request |

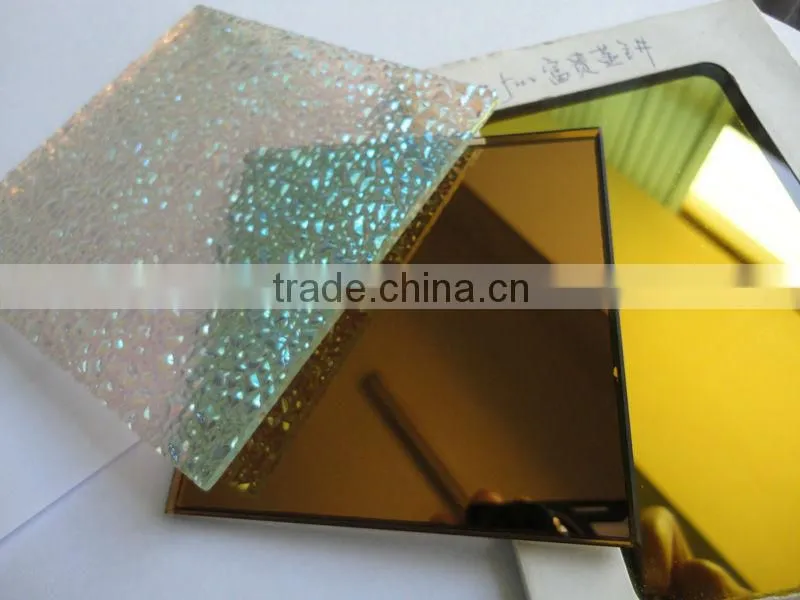

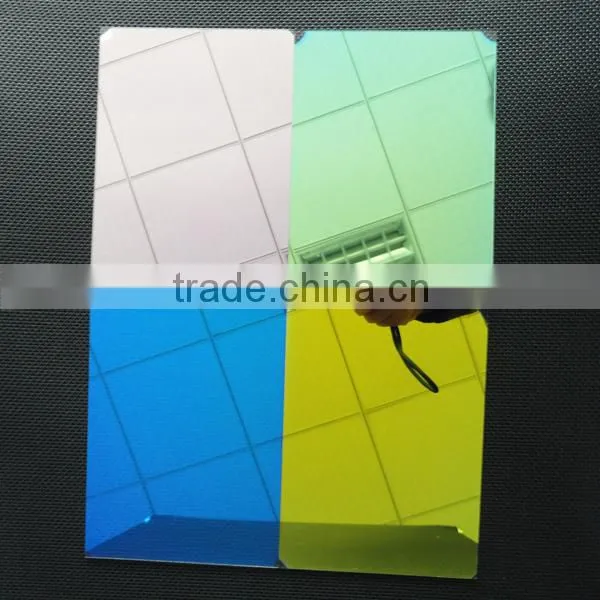

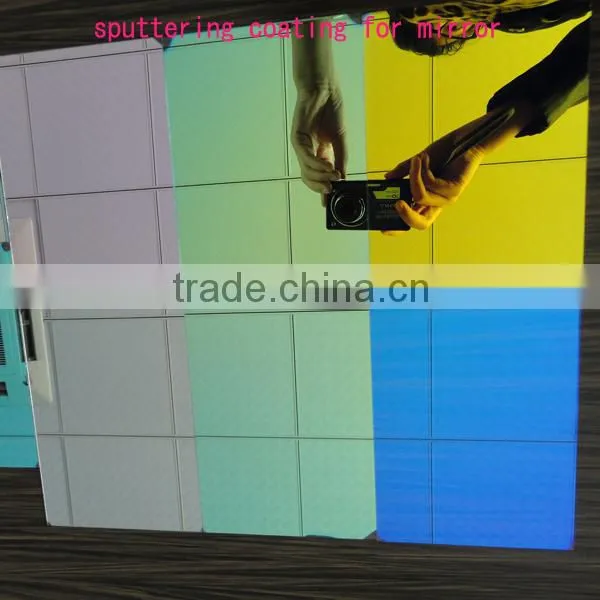

Sample showcase:
