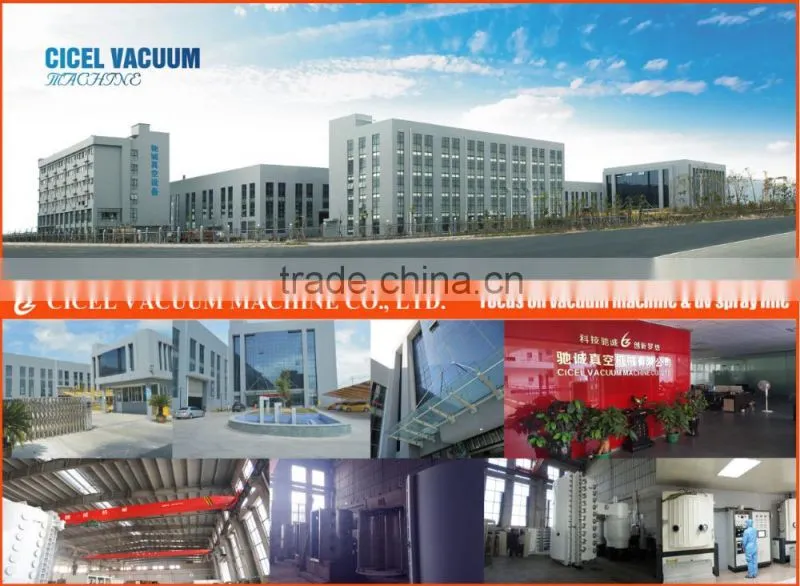

Wenzhou cicel vacuum machine CO.,LTD is located in wenzhou city and has a large modern standard industrial plant. Cicel is the largest manufacturer of vacuum equipment in the Middle area of china.Our company has a group of research staffs who have many years research and development experience of vacuum industry. Cicel company fully passed ISO9001:2008 international quality management system certification, the vacuum coating equipment and UV spray equipment fully pass the EU CE certification. We are committed to providing customers with the most suitable vacuum equipment and the most thoughtful after-sales service.
Our main products:
Multi arc ion vacuum coating equipment,Magnetron sputtering vacuum coating equipment, Continuous magnetic sputtering coating line, Optical electron gun coating equipment, High vacuum evaporation coating equipment, Automatic UV spray line.
International trade market : South America, Middle East, southeast Asia, India, Pakistan ,Korea, etc.
Contact details:
TEL: 0086-577-56615101
FAX: 0086-577-56615100
M.t/whatsapp/viber: 008618668736182
ADD: NO.9,Binhai Road 1,Binhai industrial park,Longwan district,Wenzhou ,China
Technical configuration (All our machine can be customized by your products and needs):
1.Chamber structure: vertical/horizontal front door structure or continuous coating line. Chamber adopts SUS304 material.size can be customer-made by your products.
2.Sputtering power supply :equipped with DC and medium frenquency power 60KW-100KW
3.Sputtering target: equipped with Aluminum or Titanium targets .
4.Transmission system:frequency control
5.Vacuum system: Diffusion pump (molecular pump is optional)+Roots pump +Mechanical pump + Rotary vane pump(cryogenic pump is optional)
6.Gas control: multi way sevenstar mass flow controller
7.Heating system:Controllable and adjustable from room temperature to 350 (PID temperature control).
9.Control mode: manual operation +semiautomatic + automatic integration / touch screen HMI + PLC
10.Other technical parameters:
Pump time: 5*10-2pa<4mins
Ultimate vacuum:5*10-4pa
Water pressure≥0.2Mpa 3m3/h, water temperature≤25, gas pressure:0.4-0.8Mpa

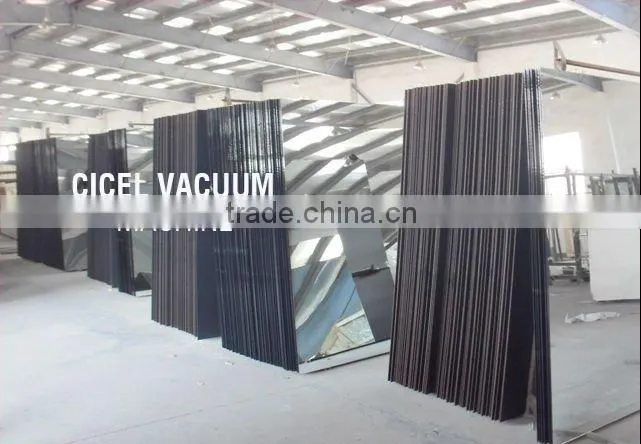

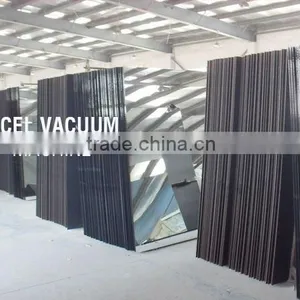

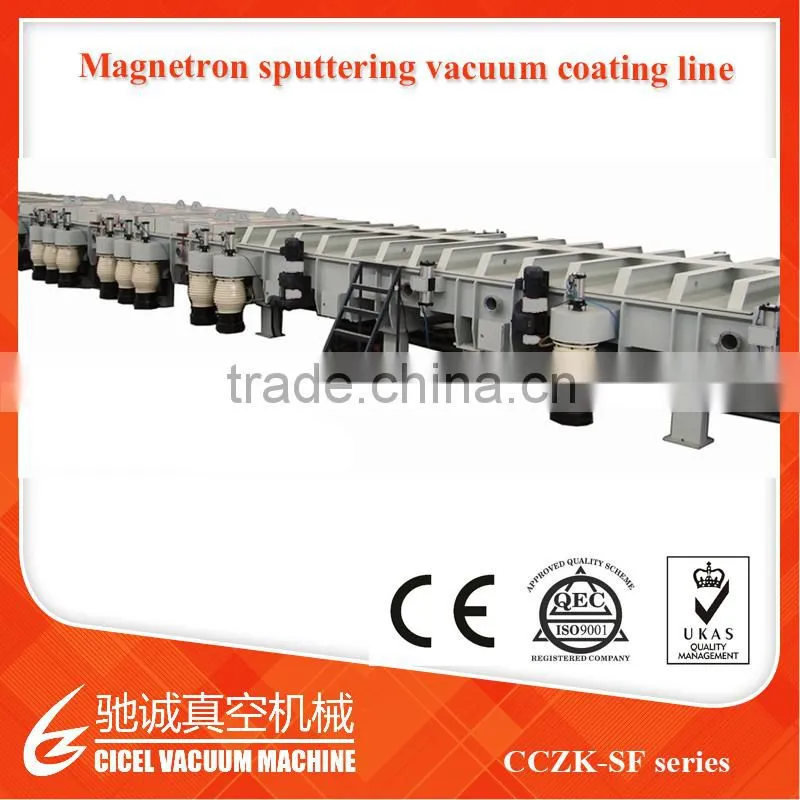

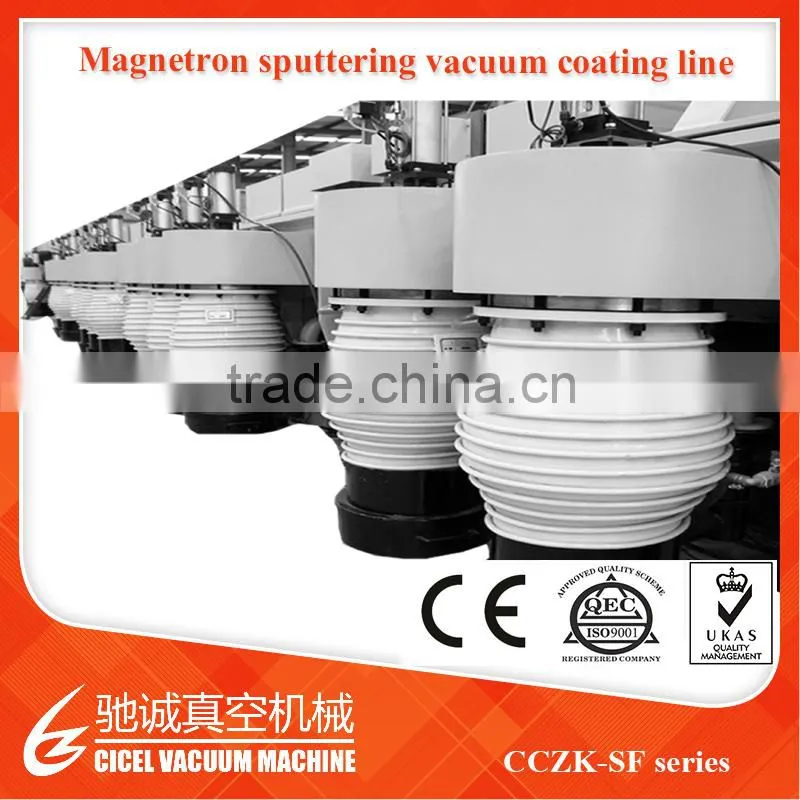

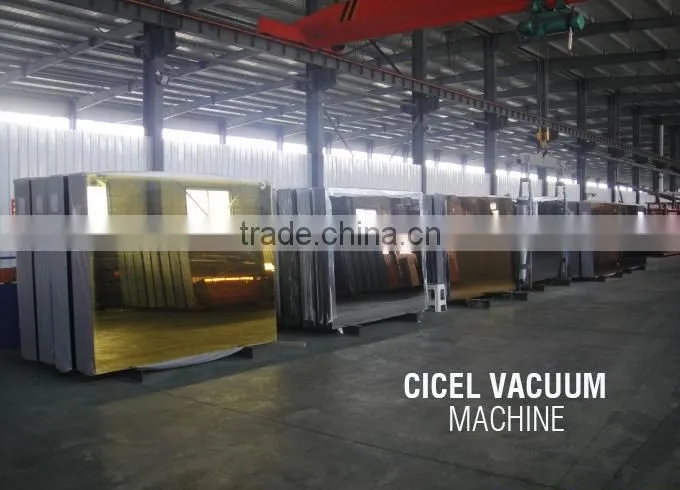

CICEL CCZK-SFL series continuous coating assembly line mainly apply to glass mirror, flat glass, acrylic board and coating singlelayer film on metal material, alloy film or metal compound film.It can achieve large area glass coating, galass mirror coating, reflector glass coating and sputtering coating requirement.

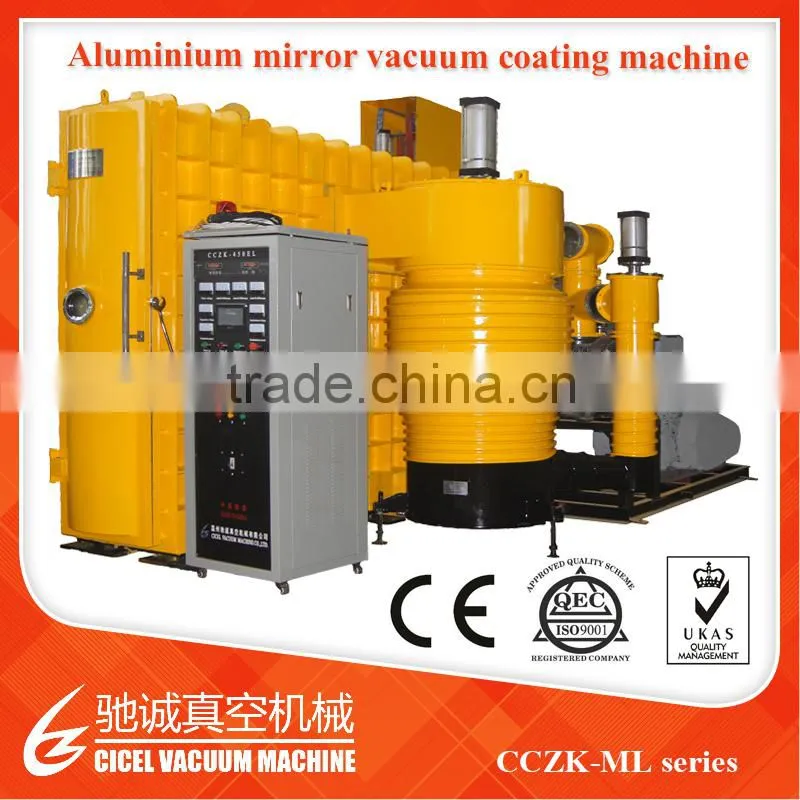

CICEL CCZK-ML series is especially for coating the aluminum glass mirror.
More application details please consult Cicel engineer
we always look forward to cooperating with you !
If you give us a chance ,we will promise you :
The best quality.
The most intimate service.
The best cost perfmance.
