Specifications
watch band vacuum machinepetitive price
2.customized chamber size
3.oversea after-sale service
4.warranty:1year
What's the deatils of our CCZK-1300 multi-arc ion vacuum coating machine
1.Fast deposition speed and high production effiency ,coated film with excellent brightness and well adhesion.
2.Intelligent automatic control, easy to operate the machine without any experience.
3.Environment friendly ,no waste water and gas.
4.Manufacturing by CICEL latest technology,also approved CE and ISO international quality management system certification.
specification of our CCZK-1300 multi-arc ion vacuum coating machine
Configuration of machine
Part name |
Specification |
Supplier |
Quantity |
|
Chamber size |
Ø1300mm×H1500mm |
CICEL |
1set |
|
Lining board |
1mm stainless steel |
CICEL |
1set |
|
Workpiece steady |
custom — made |
CICEL |
1set |
|
Rotation system |
Frequency regulation |
CICEL |
1set |
|
Bias power supply |
30kw |
GUANGDONG |
1set |
|
arc power supply |
200A |
GUANGDONG |
12sets |
|
Ti target |
Ø100 |
CICEL |
12pcs |
|
Flow valve |
D07 — 7C series |
BEIJING |
4sets |
|
Flow control instrument |
D07 — 7C series |
BEIJING |
1set |
|
Gas-pressure gauge |
international standard |
CICEL |
1set |
|
Vacuum measurement |
ZDF—5227 |
SICHUAN |
1set |
|
Heating pipe |
9KW |
CICEL |
12sets |
|
valve |
Main valve |
GDQ—800 |
CICEL |
1set |
Rough valve |
GDQ — 200 |
CICEL |
1 set |
|
Front valve |
GDQ — 150 |
CICEL |
1 set |
|
vacuum system |
Diffusion pump |
KT — 800 |
CICEL |
1set |
Mechanical pump |
2X — 70 |
SHANGHAI |
2sets |
|
Roots pump |
ZJY — 600A |
SHANGHAI |
1set |
|
Holding pump |
2X — 15 |
SICHUAN |
1set |
|
Electrical appliances |
Standard equipment |
Omron&Delixi |
1set |
|
HMI |
10.4 inch touch screen |
Xinjie |
1set |
|
Control system |
PLC programming |
Xinjie |
1set |
|
Pumping speed |
5×10 — ²≤5min |
Idle oven |
|
|

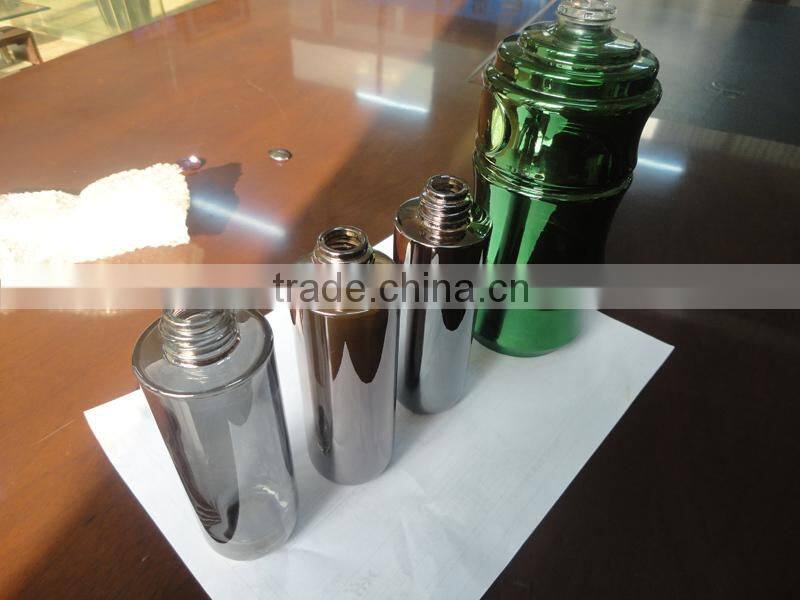

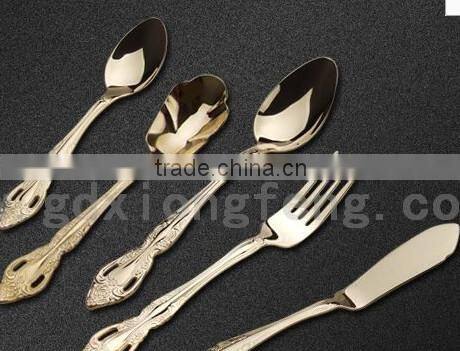

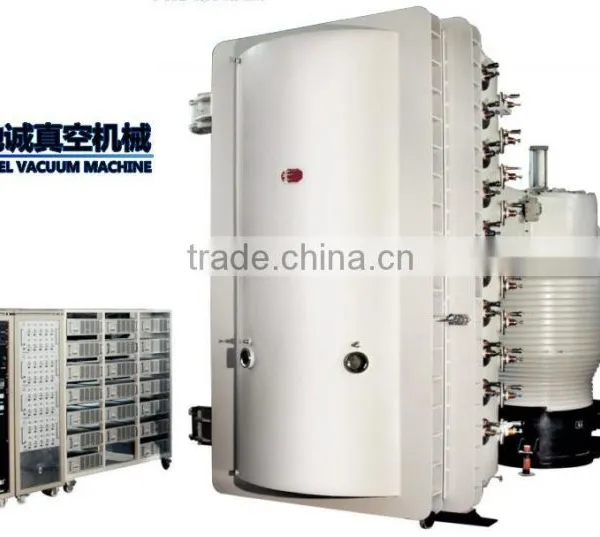

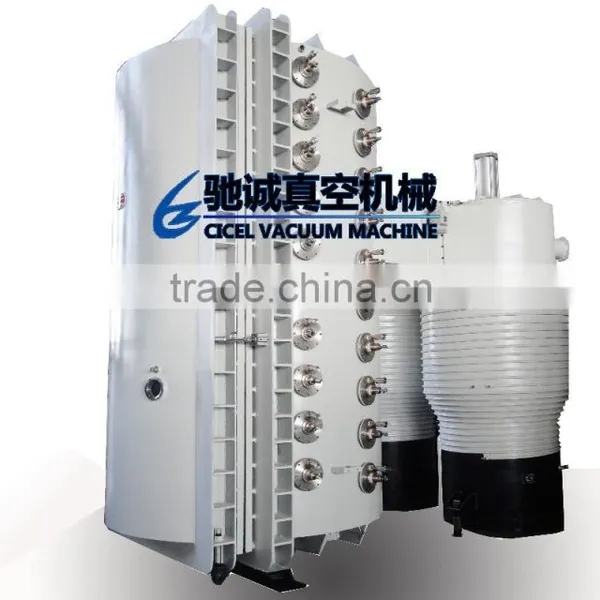

product photos
Why choose us?
1.we are the alibaba Assessed 1year Gold supplier.
2.We are the a factury manufacturing vacuum coating machine ,best product capability,best quality control , best service.
3.Inspected by the inspection institution of bureau veritas certification.
4.100%QC inspection before shippment.
5.CE/ISO listed ,competitive price.
Company information
WENZHOU CICEL VACUUM MACHINERY CO.,LTD. is located binhai park in zhejiang wenzhou ,it is a professional enterprise of wenzhou large equipment R&D production,marketing and customer service as one of the company management, most of the staff have many years of production management experience and technology of vacuum.assembly personnel with rich experience in production technology.
The company's main products are:high performance evaporation vacuum coating machine equipment, magnetron supttering coating line,multi-arc ion plating equipment,magnetron supttering vacuum coating machine,the glass vacuum coating machine,optical coating equipment,light protective film professional vacuum coating equipment,the UV line automatic spraying line.
Clients of the company has covered all over the world,the main international trade in central Asia,Turkey,India,and so on.
