HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings

HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings thumbnail-1
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings thumbnail-2
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings thumbnail-3
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings thumbnail-4
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings thumbnail-5
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings thumbnail-6
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings photo-1
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings photo-2
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings photo-3
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings photo-4
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings photo-5
HDPE Pipe/PE Black Pipe With 90 Degree Elbow and Other Fittings photo-6
US$ 3 - 100 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HUAYA
Model Number:
HDPE Pipe
Contact Supplier Request Quote Chat Now
Laiwu Huaya Polymer Sci.&Tech. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name HUAYA
Model Number HDPE Pipe
Material PE
Specification DN200mm
Length 1m-12m
Thickness 2.3mm-90mm
Standard ISO
Product Description

PE/HDPE Pipe


High-density polyethylene pipe(HDPE pipe) is made from high density polyethylene as the main raw material,
adding a small amount of antioxidants, anti-UV absorbers and pigments.

Product Features

HDPE pipe Performance and Features


1. Environmental Material.

HDPE is a kind of no-toxic, tasteless and unharmful chemical material, and HDPE PIPE, inherits those typical features nicely.

2. Good Flexibility.

When it is used in dredging pipe, the rubber flexible connectors can be saved because of its good flexibility.

3. Low Hydraulic Resistance.

The smooth inner wall make the water transportation capacity improve more than 30% under the same condition.

4. No Leakage.

The technics of hot-fusion and electric-fusion make sure the the strength of welding point is stronger than the body pipe itself.

5. High abrasion performance.

Its wear resistance is 4 times as the steel pipe.

6. Anti-corrosion and crack growth resistance.

7. Long lifetime durable in use.

50 years at least.

8. Economy

Low delivery, installation and maintenance cost.

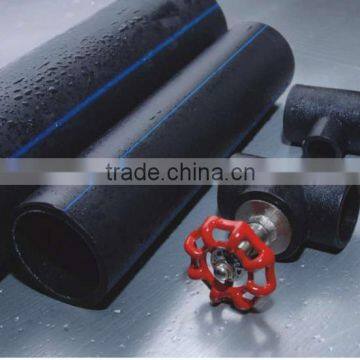

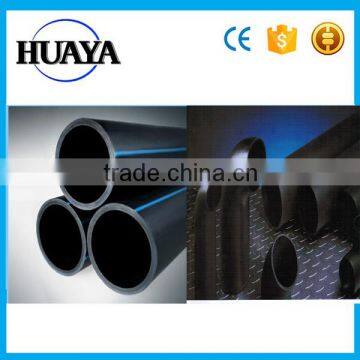

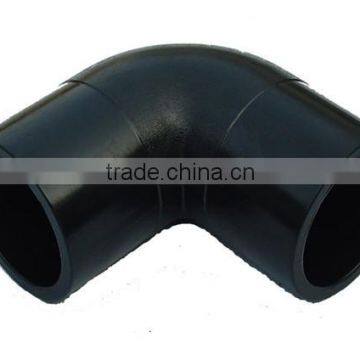

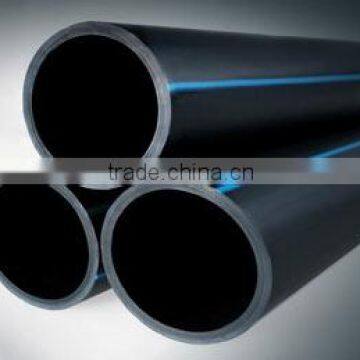

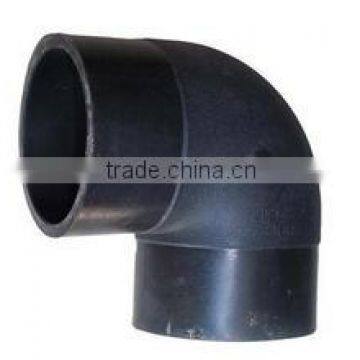

Product Images
Product Application

HDPE pipes application :


HDPE pipe is most suitable for mud & sand &mining delivery and discharge, dredging project,port construction,dock construction in water ,marine,and river or irrigation agriculture and so on.

Specification
PE100 HDPE Pipe
DN/mm
SDR26
SDR21
SDR17
SDR13.6
SDR11
Work Pressure (Mpa)
0.6
0.8
1.0
1.25
1.6
Wall Thickness
Wall Thickness
Wall Thickness
Wall Thickness
Wall Thickness
25
2.3
32
3.0
40
3.7
50
4.6
63
4.7
5.8
75
4.5
5.6
6.8
90
4.3
5.4
6.7
8.2
110
4.2
5.3
6.6
8.1
10.0
125
4.8
6.0
7.4
9.2
11.4
140
5.4
6.7
8.3
10.3
12.7
160
6.2
7.7
9.5
11.8
14.6
180
6.9
8.6
10.7
13.3
16.4
200
7.7
9.6
11.9
14.7
18.2
225
8.6
10.8
13.4
16.6
20.5
250
9.6
11.9
14.8
18.4
22.7
280
10.7
13.4
16.6
20.6
25.4
315
12.1
15.0
18.7
23.2
28.6
355
13.6
16.9
21.1
26.1
32.2
400
15.3
19.1
23.7
29.4
36.3
450
17.2
21.5
26.7
33.1
40.9
500
19.1
23.9
29.7
36.8
45.4
560
21.4
26.7
33.2
41.2
50.8
630
24.1
30.0
37.4
46.3
57.2
710
27.2
33.9
42.1
52.2
800
30.6
38.1
47.4
58.8
900
34.4
42.9
53.3
1000
38.2
47.7
59.3
1200
46.2
57.2
70.6
1300
50.0
61.9
76.5
1400
53.8
66.7
82.4
1500
57.7
71.4
88.2
1600
61.5
76.2
94.1
