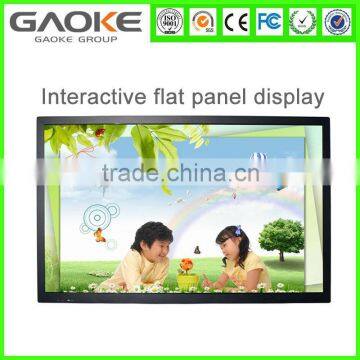

For 50inches 65" 75" 84 " 100" 3D 6 users to 10 users Top flat screen LED Television FHD Smart TV touch screen monitor
GKBoard touch screen monitor are e-LED LCD flat panel displays that range in size to accommodate any collaboration environment and include a premium interactive experience. Their stunning visuals offer the richest experience to create, share and interact with digital content.
Beautiful to look at. Impressive to work with. Our Interactive Flat Panels let you wow your audience with digital content that shines and ideas they’ll want to get their hands on.
GKBoard interactive flat panel hardware features:
- Board writing smoothly and fluently ,with high precision;
- No light spots, to protect user’s eyes;
- the GKBoard could be used also as a TV to display.
- All size of board can satisfy different requirement of customers.
- The infrared sensor is separated from the TV, be convenient for after-sale to repair quickly
- 4mm thickness tempered glass, Effectively protect the screen.
GKBoard interactive flat panel software features:
- Free upgrade for life;
- Offering free resource download website;
- Supports diverse resource database self-defined by common format files, no limit to the number of resource;
- Marking play-status of Microsoft PowerPoint;
- Catching and marking any desktop contents (files can be printed )
- Audio , video recording and playback function
- Users can expand the application functionality themselves
- One key switch between left mouse button and right mouse button.
- Supporting to insert images, animation, video and other files
- Supporting to self-defined shortcut button function.
Product Specification:
Interactive Flat Panel | ||||
Model |
GK-880T/55S |
GK-880T/65S |
GK-880T/70S |
GK-880T/84S |
Size |
55 Inch |
65 Inch |
70 Inch |
84 Inch |
Aspect Ratio |
16:9 |
|||
Light |
LED |
|||
View Angle |
178° |
|||
Response Rate |
8ms |
|||
Resolution |
1920 x 1080 |
3840 x 2160 |
||
Contrast Ratio |
4000:1 |
1600:1 |
||
Color |
16.7M |
10bit(1.06Billon) |
||
Input Port |
HDMI*2,VGA*1,PC-AUDIO*1,YPBPR*1,YPBPR-AUDID*1,TV-IN*1,AV-IN*1,TV-MIC*1 |
HDMI*3,VGA*1,PC-AUDIO*1,YPBPR*1,CVBS*1,CVBS Audio*1 |
||
Output Port |
AV-OUT*1,TV-AUDIO*1 |
COAX*1,EARPHONE*1 |
||
Communication Port |
USB(TV)*2,USB(PC)*1,USB(TOUCH)*1,RS232*1 |
USB(TV)*2,USB(PC)*1, USB(TOUCH)*1,RS232*1 |
||
Brightness |
350cd/m² |
360cd/m² |
400cd/m² |
350 cd/m2 |
Power consumption |
≤190W |
≤240W |
≤320W |
≤500W |
Standby consumption |
≤1W |
≤1W |
≤1W |
≤2W |
Power Supply |
100 V ~ 240 V, 50-60 Hz |
|||
Speaker |
10W * 2 |
|||
Working Temperature |
0°C ~ 50°C |
|||
Storage Temperature |
-20°C ~ 60°C |
|||
Product Size |
1290.0 * 782.6 * 65.0 mm |
1536 * 931 * 80 mm |
1636.90 * 981.45 * 92.50 mm |
1965.2 * 1164.2 * 91.12mm |
Active Area |
1209.6mm x 680.4mm |
1428.48 x 803.52mm |
1549.44 x 871.56mm |
1860.48 mm×1046.52 mm |
Net Weight |
45Kg |
72 Kg |
75.5Kg |
146Kg |
Gross Weight |
53.5Kg |
95.5Kg |
— |
207Kg |
Infrared touch panel specification:
Touch Principle |
Infrared |
Power Supply |
USB Power |
Writing Tools |
Finger, Pen or other no transparent object |
Response rate |
<20ms |
Drive Mode |
No need driver |
Touch Precision |
±2mm |
Communication Port |
USB2.0 |
Supported OS |
Windows 7 /Windows XP/Vista/Linux/Mac/Android/Wince |
Resolution |
8192*8192 |
Tempered Glass Thickness |
4mm |
OPC Computer specification(Optional):
Structure |
OPS Computer |
CPU |
Intel I3 or I5 |
MotherBoard |
H61 Chipsets |
Memory |
4GB or More |
Hard Disk |
500GB More |
WIFI |
Yes |
1. What's the difference between Gaoke interactive whiteboard and interactive flat panel?
Normal interactive whiteboard need projector to work together, no speaker, no computers. The interactive flat panel intergrate interactive whiteboard, projector, speaker, computer all in one together.
2. What is its advantage?
All in one touch screen, easy to use and maintenance. No need to concern the projector lamp life, higher image resolution.
